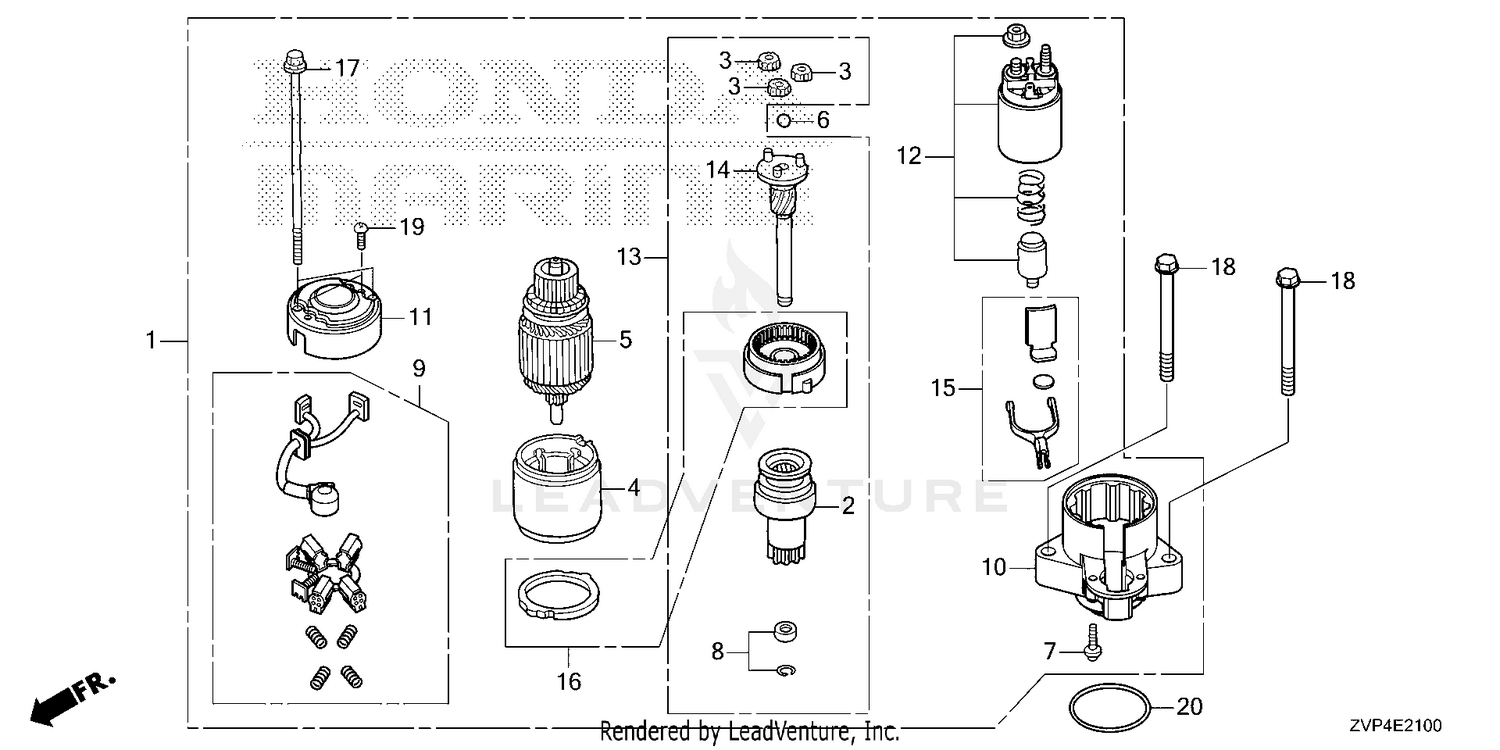

| Ref | Part Number | Description |
|---|
| 1 |
31200-ZVP-003 |
STARTER MOTOR ASSY. Price: $635.48 |
| 2 |
31207-ZY9-H01 |
CLUTCH, OVERRUNNING Price: $278.48 |
| 3 |
31215-ZVP-003 |
GEAR, PLANETARY Price: $19.40 |
| 4 |
31216-ZVP-003 |
YOKE COMP Price: $147.33 |
| 5 |
31217-ZVP-003 |
ROTOR COMP Price: $219.88 |
| 6 |
31218-PY3-004 |
BALL, STEEL Price: $4.38 |
| 7 |
31226-ZY9-H01 |
SCREW, PAN (6X22) Price: $2.98 |
| 8 |
31229-ZY9-H01 |
STOPPER SET, SLEEVE Price: $20.60 |
| 9 |
31232-ZVP-003 |
HOLDER COMP, BRUSH Price: $67.78 |
| 10 |
31235-ZVP-003 |
BRACKET, FR. Price: $126.18 |
| 11 |
31236-ZY3-003 |
BRACKET, RR. Price: $47.94 |
| 12 |
31240-ZVP-003 |
SW ASSY., MAG Price: $252.82 |
| 13 |
31242-ZVP-003 |
SET Price: $417.94 |
| 14 |
31246-ZVP-003 |
SHAFT ASSY., GEAR Price: $135.62 |
| 15 |
31250-ZY3-003 |
LEVER SET Price: $16.48 |
| 16 |
31251-ZVP-003 |
INNER GEAR ASSY. Price: $48.18 |
| 17 |
31261-ZVP-003 |
THROUGH BOLT Price: $5.06 |
| 18 |
90003-ZVL-010 |
BOLT, FLG (10X110) Price: $7.16 |
| 19 |
90107-ZW1-004 |
SCREW, PAN (5X8) Price: $3.34 |
| 13271 |
13271-3847 |
PLATE Price: $7.63 |
| 21003 |
21003-3749 |
STATOR Price: $509.03 |
| 21007 |
21007-3731 |
ROTOR Price: $642.03 |
| 92002 |
92002-1537 |
BOLT,6X28 Price: $6.57 |
| 92025 |
92025-1506 |
SHIM,T=1.4 This part replaces 92025-1502. Price: $3.21 |
| 92055 |
92055-3769 |
RING-O Price: $4.18 |
