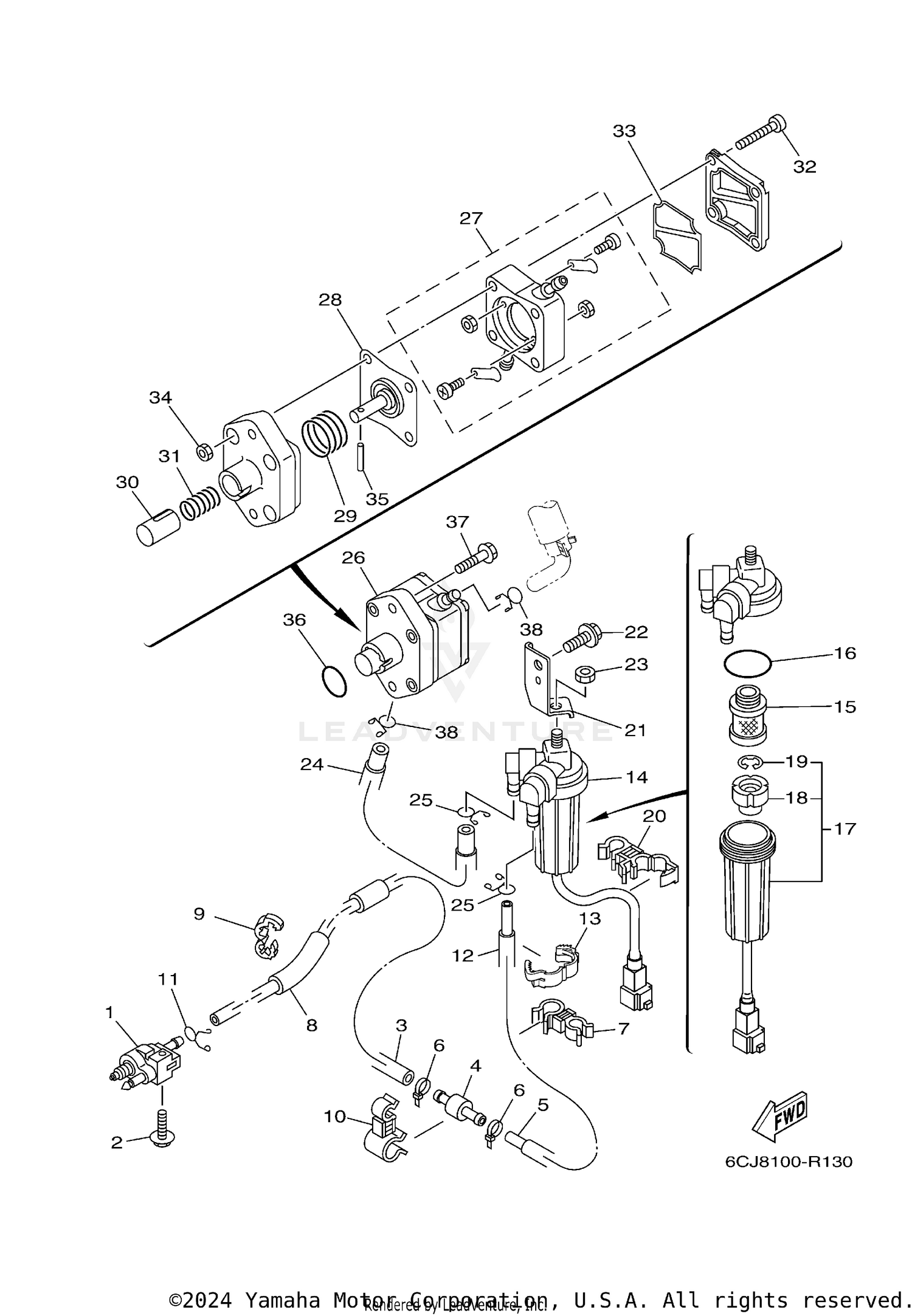

| Ref | Part Number | Description |
|---|
| 1 |
6G1-24304-11-00 |
FUEL PIPE JOINT COMP. 1 This part replaces 6G1-24304-10-00. Price: $35.20 |
| 2 |
97E95-06525-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 3 |
6BG-24313-10-00 |
PIPE 3 Price: $19.65 |
| 4 |
67F-24377-00-00 |
PIPE, JOINT 2 Price: $10.65 |
| 5 |
90445-13022-00 |
HOSE (L195) Price: $11.60 |
| 6 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 7 |
90464-12004-00 |
CLAMP Price: $4.75 |
| 8 |
90446-13M11-00 |
HOSE (L65) Price: $2.85 |
| 9 |
90464-13227-00 |
CLAMP Price: $8.49 |
| 10 |
90464-16017-00 |
CLAMP Price: $4.65 |
| 11 |
90467-09M09-00 |
CLIP This part replaces 90467-09M17-00. Price: $1.15 |
| 12 |
90446-15006-00 |
HOSE (L150) Price: $4.65 |
| 13 |
90464-14010-00 |
CLAMP Price: $3.65 |
| 14 |
6D8-24560-02-00 |
FILTER ASSY This part replaces 6D8-24560-01-00. Price: $100.99 |
| 15 |
6D8-WS24A-00-00 |
ELEMENT, FILTER (WIT This part replaces 6D8-24563-00-00. Price: $25.35 |
| 16 |
6D8-24564-00-00 |
GASKET Price: $7.95 |
| 17 |
6D8-WS24B-00-00 |
CUP, FILTER (WITH TA This part replaces 6D8-24562-00-00. Price: $134.55 |
| 18 |
6D8-24469-00-00 |
FLOAT, WATER LEVEL Price: $10.95 |
| 19 |
6D8-24519-00-00 |
CLIP Price: $5.55 |
| 20 |
90464-12012-00 |
CLAMP Price: $3.35 |
| 21 |
6CJ-24566-00-00 |
BRACKET, FILTER Price: $14.75 |
| 22 |
95D95-08016-00 |
BOLT, FLANGE DEEP Price: $1.35 |
| 23 |
99780-08600-00 |
NUT, HEX. This part replaces 95380-08600-00. Price: $2.75 |
| 24 |
6BG-24311-11-00 |
PIPE, FUEL 1 This part replaces 6BG-24311-10-00. Price: $25.90 |
| 25 |
90467-11M08-00 |
CLIP Price: $2.70 |
| 26 |
6CJ-24410-00-00 |
FUEL PUMP ASSY This part replaces 6CJ-24410-01-00. Price: $174.05 |
| 27 |
6CJ-24415-00-00 |
BODY 4 Price: $56.00 |
| 28 |
62Y-24411-03-00 |
DIAPHRAGM Price: $139.95 |
| 29 |
62Y-24423-00-00 |
SPRING, DIAPHRAGM Price: $8.10 |
| 30 |
6CJ-13131-00-00 |
PLUNGER Price: $49.85 |
| 31 |
6CJ-24454-00-00 |
SPRING Price: $8.95 |
| 32 |
62Y-24444-09-00 |
SCREW This part replaces 62Y-24444-01-00. Price: $3.75 |
| 33 |
6C5-24471-01-00 |
DIAPHRAGM Price: $21.05 |
| 34 |
95380-05600-00 |
NUT Price: $9.49 |
| 35 |
6CJ-24374-00-00 |
PIN Price: $14.05 |
| 36 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
| 37 |
97E95-06530-00 |
BOLT, HEXAGON W/W Price: $1.10 |
