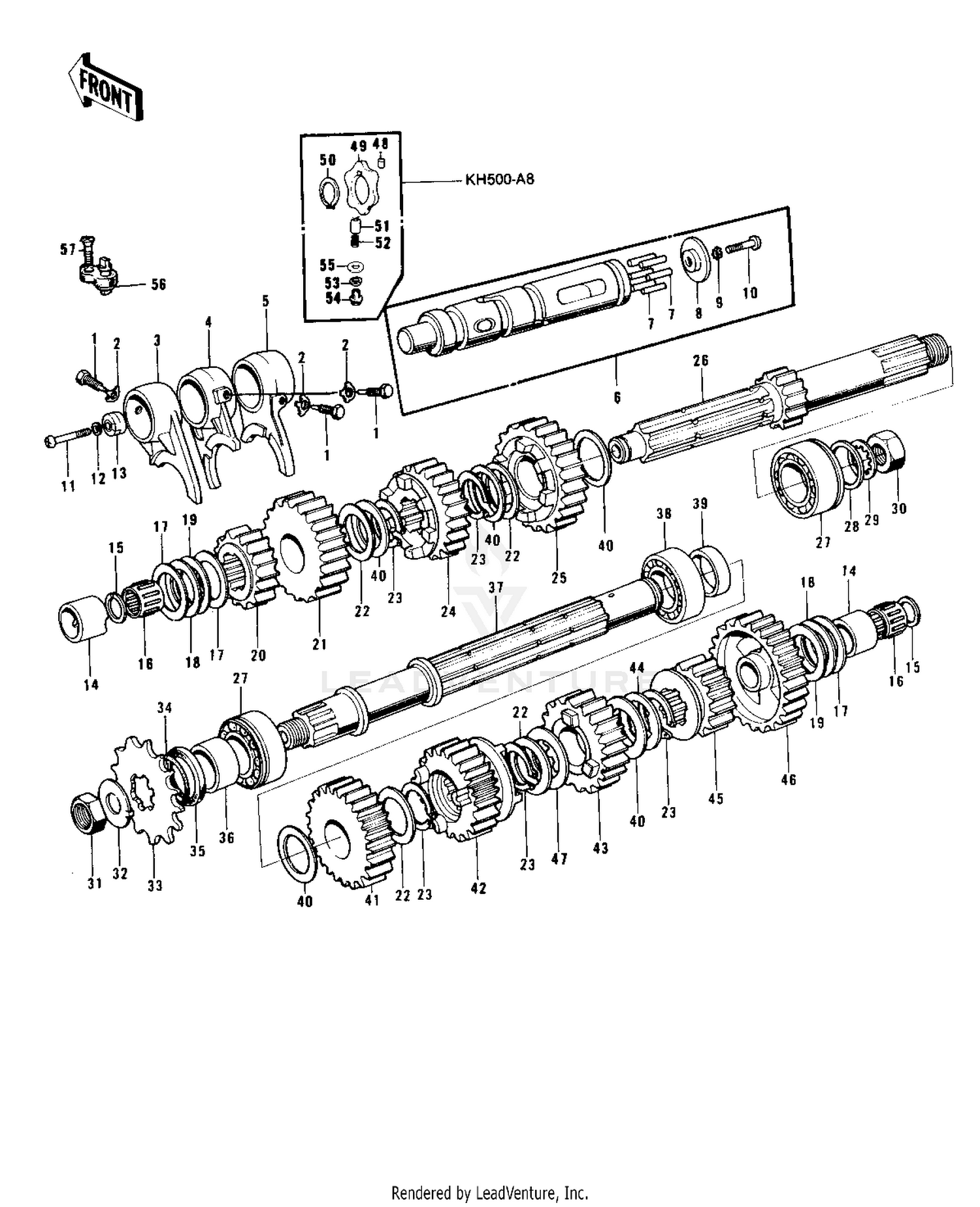

| Ref | Part Number | Description |
|---|
| 1 |
92043-016 |
PIN SELECT FORK GUIDE Price: $26.54 |
| 2 |
92031-001 |
WASHER LOCK 10MM Price: $11.45 |
| 3 |
13140-064 |
FORK,SELECTOR,2ND&3RD Price: $59.28 |
| 4 |
13140-013 |
FORK SELECTOR TOP Price: $80.88 |
| 7 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 8 |
13142-004 |
PLATE CHANGE DRUM PIN Price: $2.92 |
| 9 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 10 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 11 |
220AA0625 |
SCREW-PAN-CROS,6X25 This part replaces 220B0625. Price: $2.78 |
| 12 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 14 |
92028-073 |
BUSH Price: $19.22 |
| 15 |
92033-015 |
RING-SNAP,20MM Price: $4.26 |
| 16 |
92046-010 |
BEARING NEEDLE Price: $37.55 |
| 17 |
92022-112 |
WASHER,20.5X30X1,STEEL Price: $8.86 |
| 19 |
92022-113 |
WASHER THRUST Price: $11.66 |
| 23 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 25 |
13136-041 |
TOP GEAR-DRIVE SHAFT Price: $59.45 |
| 26 |
13127-019 |
SHAFT DRIVE Price: $166.79 |
| 27 |
92045-1013 |
BEARING-BALL,#6205NX3 This part replaces 92045-010. Price: $24.30 |
| 28 |
92022-114 |
WASHER THRUST Price: $0.90 |
| 29 |
463G2000 |
WASHER LOCK 20MM Price: $1.15 |
| 30 |
92016-028 |
NUT,20MM Price: $9.91 |
| 31 |
92015-019 |
NUT 18MM Price: $7.22 |
| 32 |
92024-067 |
WASHER,LOCK,18MM Price: $3.52 |
| 33 |
13144-030 |
ENGINE SPROCKET 15T This part replaces 13144-035. Price: $85.36 |
| 33 |
13144-036 |
ENG SPROCKET 16T (OPT Price: $29.93 |
| 34 |
92055-035 |
RING-O Price: $5.00 |
| 35 |
92049-1506 |
SEAL-OIL,HTC 32 52 10 This part replaces 92050-024. Price: $8.17 |
| 36 |
92026-1024 |
SPACER-ENG SPROCKET Price: $19.50 |
| 37 |
13128-020 |
SHAFT OUTPUT Price: $164.75 |
| 38 |
601B6005 |
BEARING BALL #6005 Price: $16.92 |
| 39 |
92027-052 |
COLLAR Price: $9.35 |
| 40 |
92022-225 |
WASHER,25.3X32X0.5 Price: $5.52 |
| 44 |
92024-033 |
WASHER-LOCK Price: $8.19 |
| 45 |
13137-010 |
TOP GEAR OUTPUT SHAFT Price: $105.93 |
| 46 |
13129-024 |
LOW GEAR OUTPUT SHAFT Price: $84.88 |
| 56 |
13151-012 |
SWITCH NEUTRAL Price: $10.50 |
