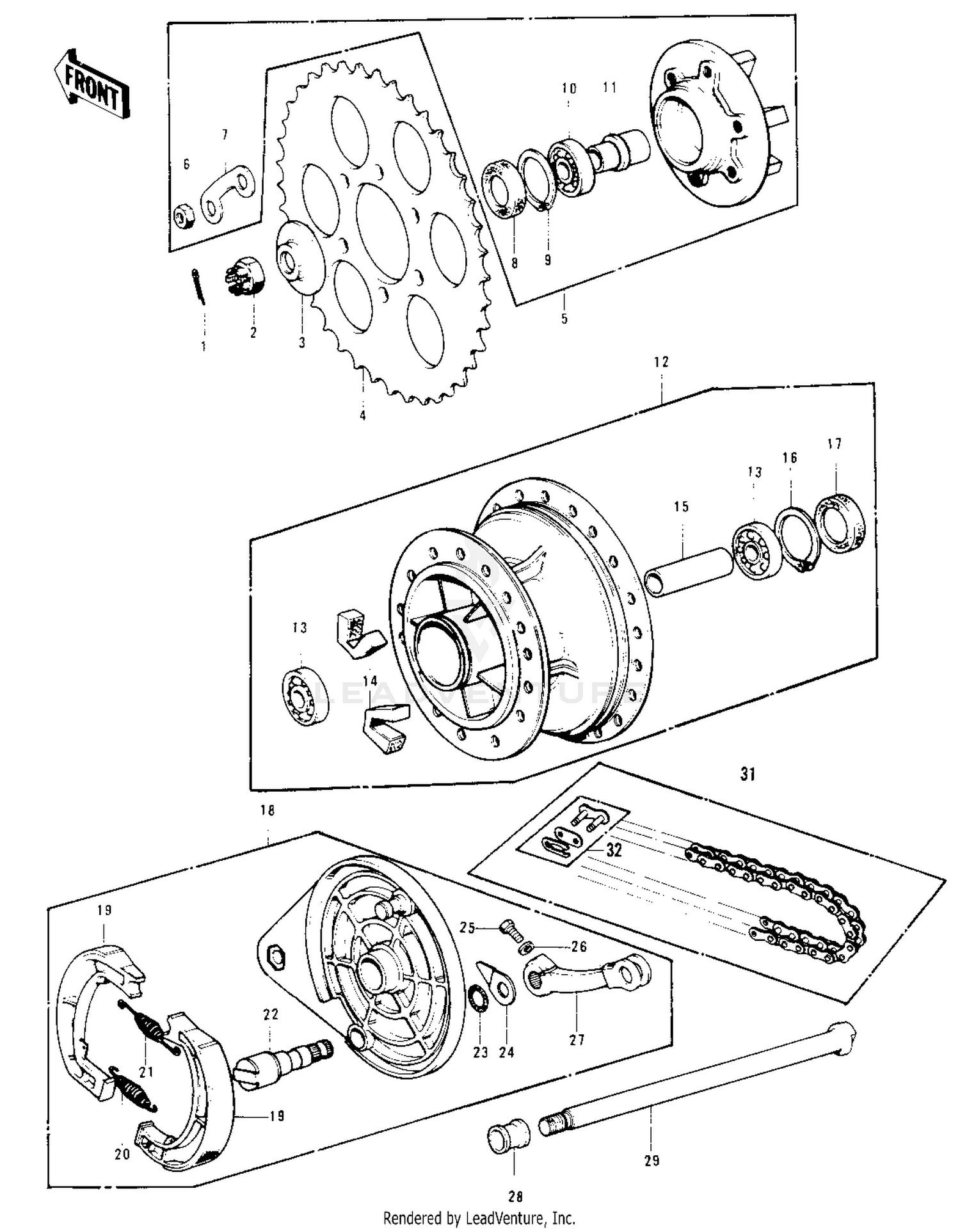

| Ref | Part Number | Description |
|---|
| 1 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 2 |
92103-006 |
NUT CASTLE 14MM Price: $25.81 |
| 3 |
42032-048 |
COLLAR,REAR AXLE,L.H Price: $81.06 |
| 4 |
42041-136 |
REAR SPROCKET 47T Price: $90.92 |
| 4 |
42041-146 |
REAR SPROCKET.50T Price: $97.82 |
| 4 |
42041-147 |
REAR SPROCKET,54T Price: $85.90 |
| 4 |
42041-148 |
REAR SPROCKET,58T Price: $104.35 |
| 4 |
42041-149 |
REAR SPROCKET,56T Price: $104.54 |
| 5 |
42008-031 |
COUPLING ASSY,RR HUB Price: $115.39 |
| 6 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 7 |
92088-019 |
WASHER,SPROCKET LOCK Price: $6.22 |
| 8 |
92050-060 |
SEAL-OIL,26X42X8 Price: $18.15 |
| 9 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 10 |
601B6004 |
BEARING BALL #6004 Price: $12.47 |
| 11 |
42036-018 |
SLEEVE,RR HUB COUPLNG Price: $25.30 |
| 12 |
42005-046-80 |
DRUM ASY,RR BRK,BUFF Price: $253.56 |
| 13 |
601B6202 |
BEARING-BALL,#6202C3 Price: $8.64 |
| 14 |
42014-023 |
DAMPER,REAR HUB SHOCK Price: $17.72 |
| 15 |
42010-029 |
SPACER,RR HUB BEARING Price: $22.11 |
| 16 |
481J3500 |
CIRCLIP-TYPE-C,35MM Price: $1.96 |
| 17 |
92049-1348 |
SEAL-OIL,22X35X8 This part replaces 654A223508. Price: $9.73 |
| 19 |
41048-1076 |
SHOE-BRAKE This part replaces 42019-010. Price: $38.07 |
| 20 |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 21 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 22 |
42026-025 |
CAM SHAFT,REAR BRAKE Price: $18.22 |
| 24 |
41085-008 |
INDICATOR,BK SHOE This part replaces 41085-002. Price: $13.88 |
| 25 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 26 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 27 |
42029-030 |
LEVER,REAR BRAKE CAM Price: $77.18 |
| 28 |
42032-047 |
COLLAR,REAR AXLE,R.H Price: $7.81 |
| 29 |
42031-046 |
AXLE,REAR Price: $72.34 |
| 30 |
92004-1015 |
STUD,8X17 Price: $4.99 |
