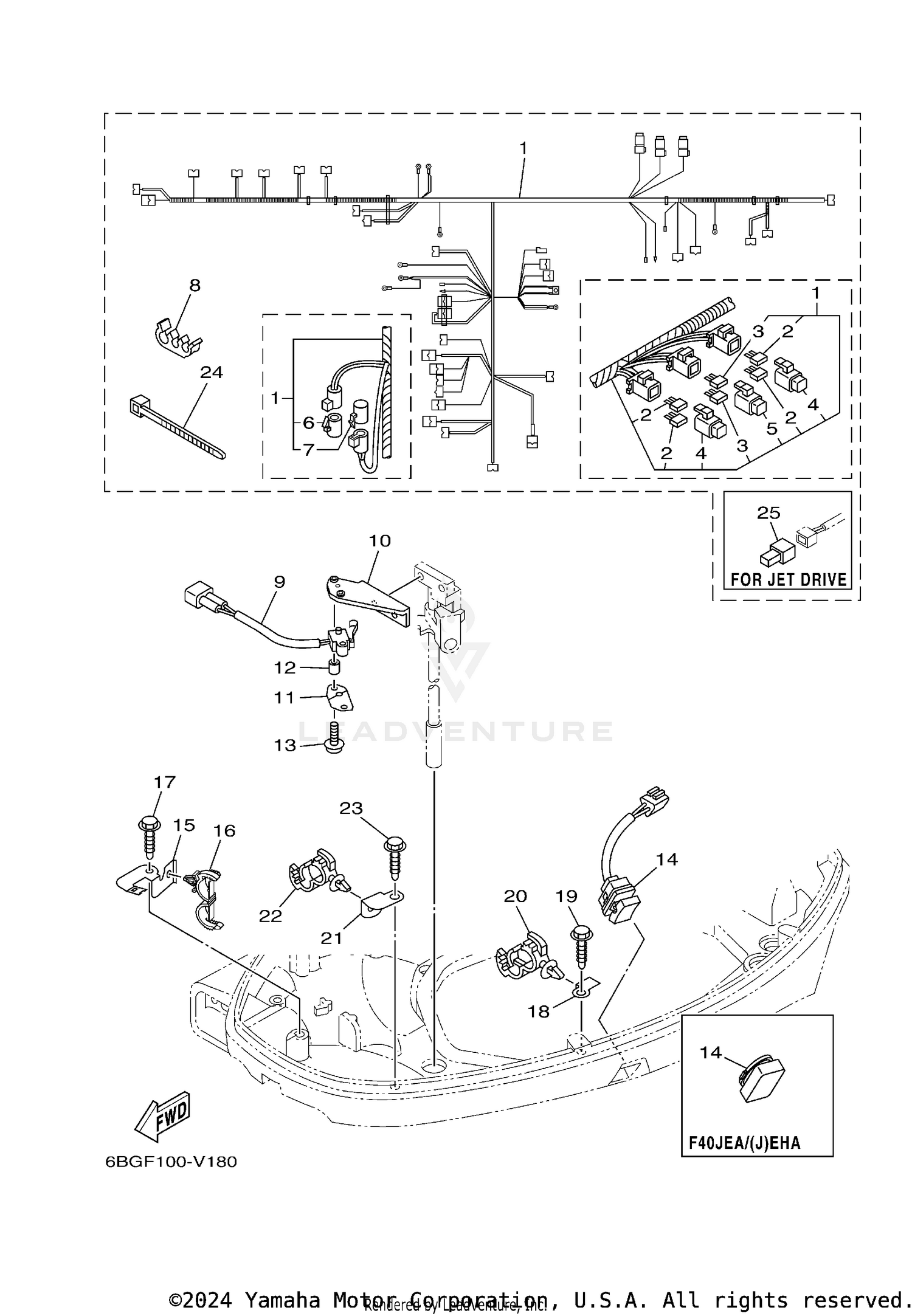

ELECTRICAL 5
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-82590-06-00 | WIRE HARNESS ASSY Price: $1,171.55 |
| 1 | 6BG-82590-14-00 | WIRE HARNESS ASSY Price: $1,171.55 |
| 2 | 5JJ-82151-20-00 | FUSE (20A-BL) This part replaces 67F-82151-00-00. Price: $8.49 |
| 3 | 5JJ-82151-60-00 | FUSE This part replaces 67F-82151-10-00. Price: $8.49 |
| 4 | 67F-8215B-10-00 | CAP (YELLOW) Price: $14.75 |
| 5 | 67F-8215B-20-00 | CAP (GREEN) Price: $14.75 |
| 8 | 90464-11008-00 | CLAMP Price: $3.20 |
| 10 | 6CJ-82554-00-00 | STAY, NEUTRAL SWITCH Price: $21.15 |
| 14 | 6FM-42723-01-00 | COVER, BOTTOM Price: $6.25 |
| 14 | 6FM-82563-01-00 | TRIM & TILT SWITCH ASSY Price: $86.10 |
| 15 | 6BG-42811-01-00 | STAY Price: $17.25 |
| 16 | 90464-18246-00 | CLAMP This part replaces 90464-18205-00. Price: $2.44 |
| 17 | 90109-06M86-00 | BOLT Price: $1.81 |
| 18 | 6BG-42743-00-00 | BRACKET Price: $7.60 |
| 19 | 90109-06M86-00 | BOLT Price: $1.81 |
| 20 | 90464-20181-00 | CLAMP Price: $4.72 |
| 21 | 63P-42756-00-00 | STAY, CLAMP Price: $7.05 |
| 22 | 90464-20181-00 | CLAMP Price: $4.72 |
| 23 | 90109-06M86-00 | BOLT Price: $1.81 |
| 24 | 90465-13M97-00 | CLAMP Price: $3.45 |
