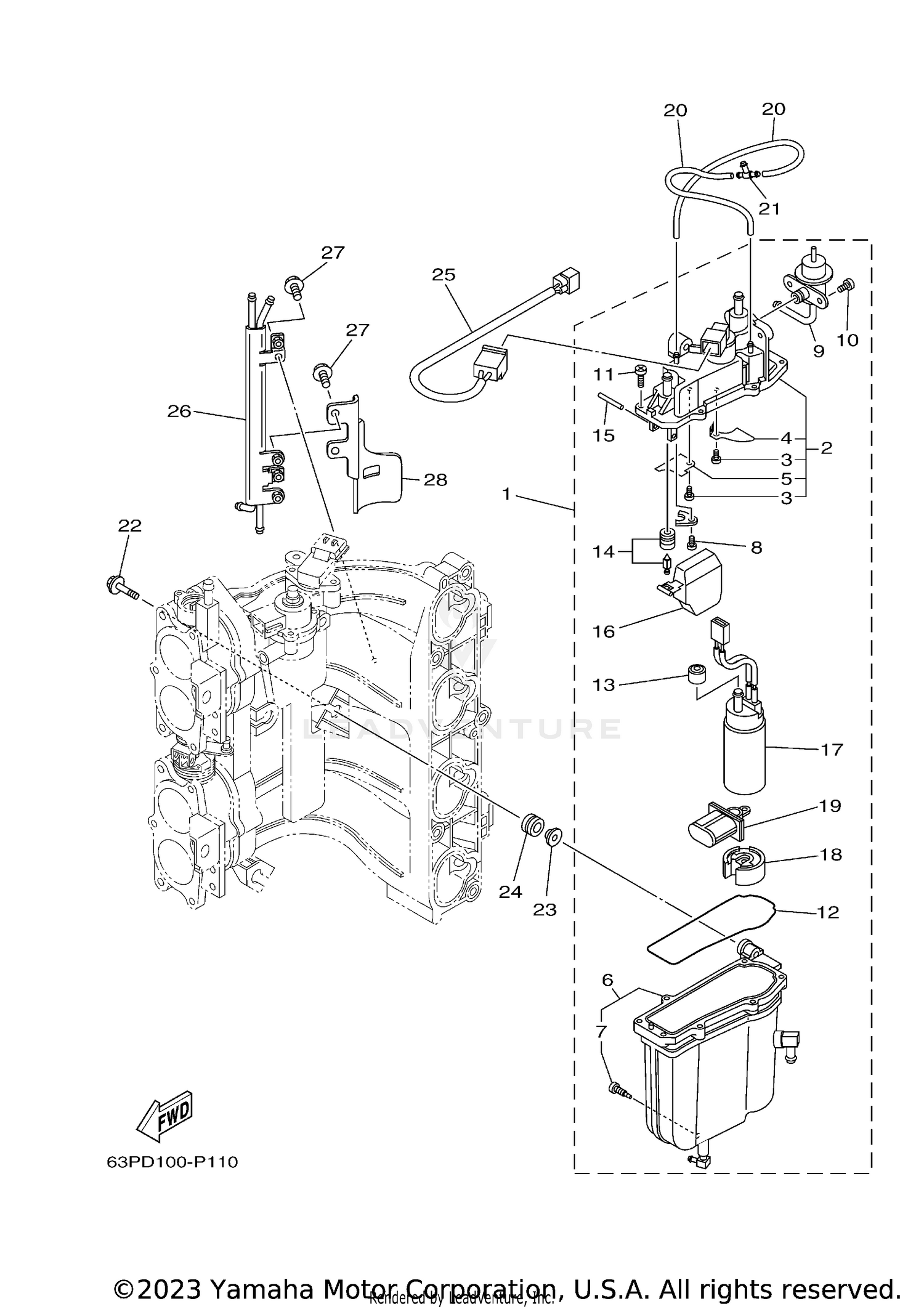

| Ref | Part Number | Description |
|---|
| 1 |
63P-14180-22-00 |
FLOAT CHAMBER ASSY Price: $1,725.30 |
| 2 |
63P-14182-20-00 |
COVER, FLOAT CHAMBER Price: $418.85 |
| 3 |
4SV-24453-00-00 |
SCREW Price: $8.49 |
| 4 |
63P-2411R-00-00 |
PLATE 1 Price: $9.80 |
| 5 |
63P-2411T-00-00 |
PLATE 2 Price: $5.65 |
| 6 |
63P-14181-20-00 |
BODY, FLOAT CHAMBER 1 Price: $326.85 |
| 7 |
63P-14191-00-00 |
PLUG, DRAIN Price: $5.55 |
| 8 |
4SV-24453-00-00 |
SCREW Price: $8.49 |
| 9 |
63P-13906-00-00 |
REGULATOR, PRESSURE Price: $330.25 |
| 10 |
63P-14565-00-00 |
SCREW Price: $6.75 |
| 11 |
63P-14567-09-00 |
SCREW This part replaces 63P-14567-00-00. Price: $4.20 |
| 12 |
63P-14984-00-00 |
GASKET, FLOAT CHAMBER Price: $23.95 |
| 13 |
68V-13781-20-00 |
GROMMET & COLLAR SET Price: $56.85 |
| 14 |
63P-14546-00-00 |
VALVE, NEEDLE Price: $79.85 |
| 15 |
8M6-14186-00-00 |
PIN,FLOAT This part replaces 68V-14386-00-00. Price: $10.99 |
| 16 |
63P-14985-00-00 |
FLOAT Price: $130.40 |
| 17 |
63P-13907-05-00 |
FUEL PUMP COMP. Price: $507.10 |
| 18 |
63P-13784-00-00 |
COVER, PUMP Price: $29.15 |
| 19 |
63P-13915-00-00 |
FILTER Price: $58.45 |
| 20 |
63P-14148-00-00 |
PIPE Price: $34.60 |
| 21 |
69J-24379-00-00 |
PIPE, JOINT 4 Price: $15.95 |
| 22 |
90119-06299-00 |
BOLT, WITH WASHER Price: $2.40 |
| 23 |
63P-13716-00-00 |
COLLAR Price: $8.30 |
| 24 |
6BM-13593-00-00 |
DAMPER Price: $31.10 |
| 25 |
63P-8259L-01-00 |
WIRE HARNESS ASSY 1 This part replaces 63P-8259L-00-00. Price: $102.35 |
| 26 |
63P-21841-10-00 |
COOLER Price: $384.50 |
| 27 |
63P-13573-00-00 |
BOLT 1 Price: $3.95 |
