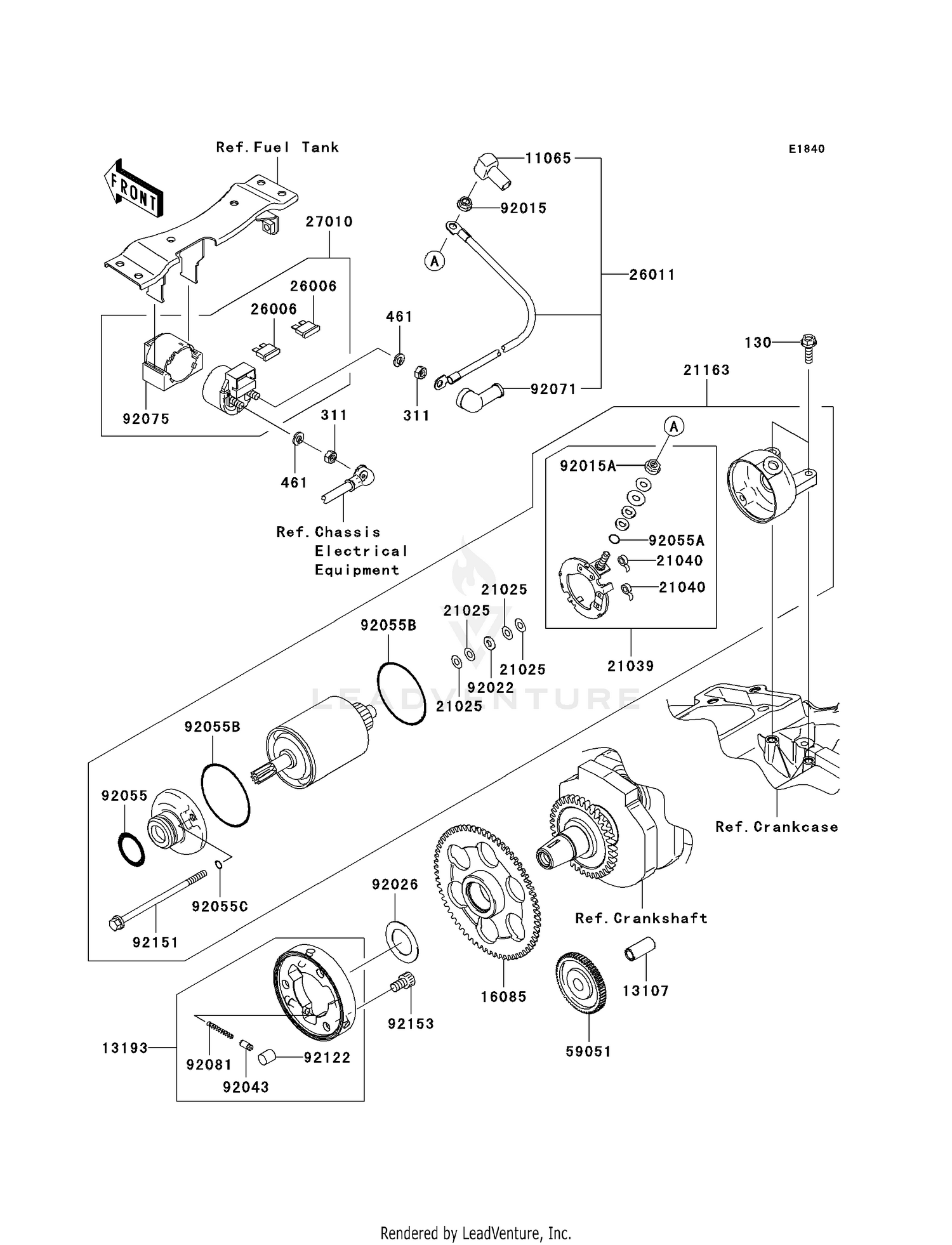

| Ref | Part Number | Description |
|---|
| 130 |
130BB0620 |
BOLT-FLANGED,6X20 Price: $0.46 |
| 311 |
311AA0600 |
NUT-HEX,6MM Price: $0.96 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM Price: $0.71 |
| 11065 |
11065-0213 |
CAP Price: $3.93 |
| 13107 |
13107-1176 |
SHAFT,7.8X12X26.5 Price: $10.56 |
| 13193 |
13193-1002 |
CLUTCH-ASSY-ONEWAY Price: $116.39 |
| 16085 |
13216-0880 |
GEAR-COMP,ONEWAY CLUTCH,65T This part replaces 16085-1166. Price: $139.82 |
| 21025 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 21039 |
21039-1066 |
BRUSH Price: $32.07 |
| 21040 |
21040-1057 |
SPRING-BRUSH Price: $8.42 |
| 21163 |
21163-1317 |
STARTER-ELECTRIC Price: $534.58 |
| 26006 |
26006-1006 |
FUSE,BLADE,30A,GREEN Price: $4.96 |
| 26011 |
26011-0780 |
WIRE-LEAD,STARTER This part replaces 26011-0145. Price: $76.52 |
| 27010 |
27010-0778 |
SWITCH,MAGNETIC This part replaces 27010-1269. Price: $124.31 |
| 59051 |
59051-1154 |
GEAR-SPUR,IDLE Price: $123.35 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1476 |
NUT,STARTER MOTOR Price: $4.31 |
| 92022 |
92022-1132 |
WASHER,9.1X18X0.8 Price: $6.22 |
| 92026 |
92026-0153 |
SPACER,25.2X40X1.0 Price: $7.50 |
| 92043 |
92043-132 |
PIN Price: $6.22 |
| 92055 |
92055-1276 |
RING-O Price: $9.91 |
| 92055A |
92055-1370 |
RING-O,4.5X2.0 Price: $4.69 |
| 92055B |
92055-1550 |
RING-O Price: $9.91 |
| 92055C |
92055-1551 |
RING-O Price: $4.69 |
| 92071 |
92071-0705 |
GROMMET This part replaces 92071-0037. Price: $6.89 |
| 92075 |
92161-1720 |
DAMPER,MAGNETIC SWITC This part replaces 92075-1863. Price: $21.12 |
| 92081 |
92081-159 |
SPRING,COIL Price: $3.89 |
| 92122 |
92122-006 |
ROLLER Price: $6.22 |
| 92151 |
92151-1980 |
BOLT Price: $4.22 |
