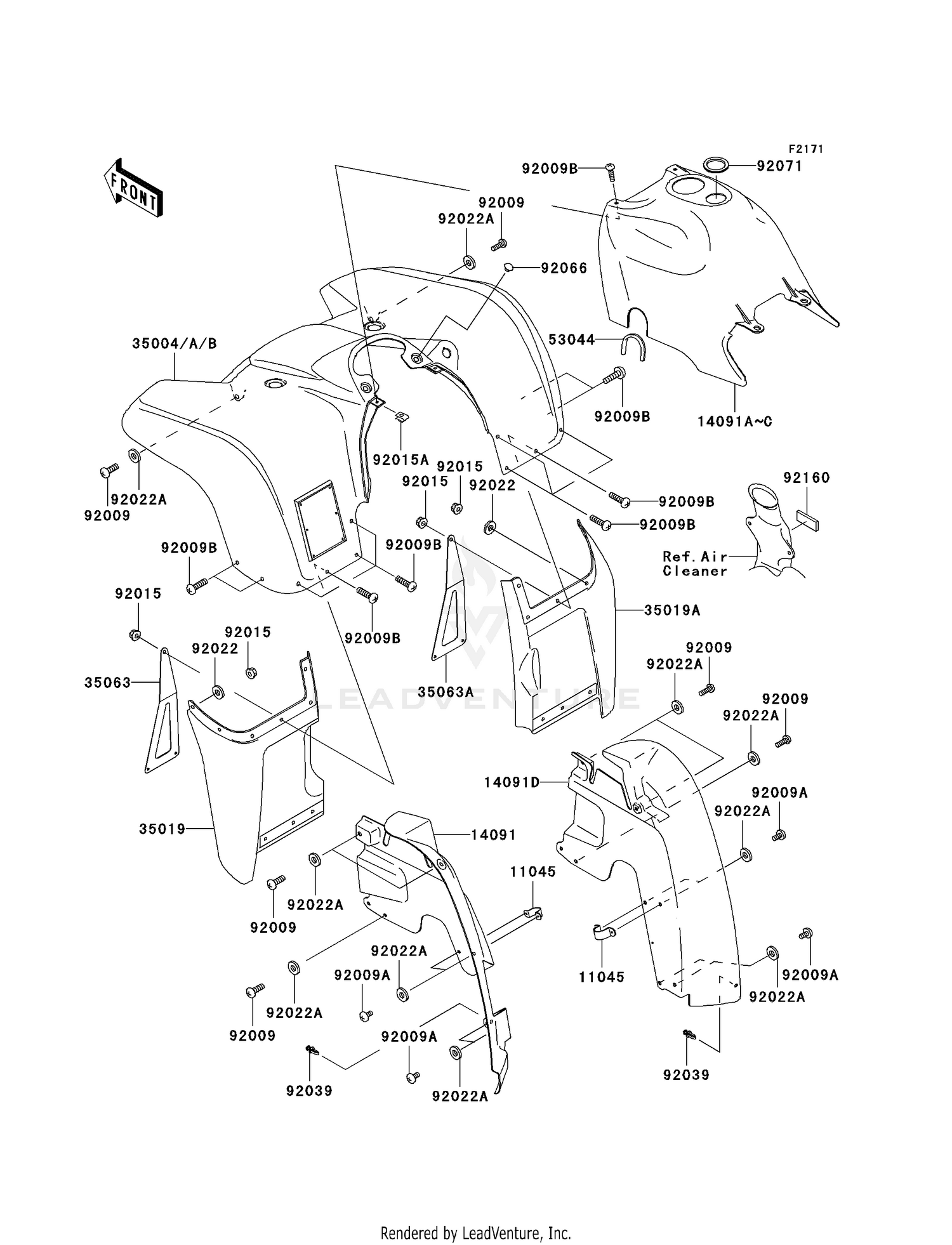

| Ref | Part Number | Description |
|---|
| 11045 |
11045-1882 |
BRACKET,FENDER Price: $7.69 |
| 14091 |
14091-7521 |
COVER,INNER FLAP,LH Price: $30.00 |
| 14091B |
14091-7525-286 |
COVER,FUEL TANK,W.GRE Price: $36.59 |
| 14091C |
14091-7525-6B |
COVER,FUEL TANK,S.RED Price: $38.32 |
| 14091D |
14091-7527 |
COVER,INNER FLAP,RH Price: $30.00 |
| 35004A |
35004-1378-286 |
FENDER-FRONT,W.GREEN Price: $308.71 |
| 35004B |
35004-1378-6B |
FENDER-FRONT,S.RED Price: $323.35 |
| 35019 |
35019-0021-6Z |
FLAP,FR,LH,F.BLACK Price: $22.71 |
| 35019A |
35019-0022-6Z |
FLAP,FR,RH,F.BLACK Price: $22.71 |
| 35063 |
35063-7506 |
STAY,FRONT FENDER,LH Price: $9.22 |
| 35063A |
35063-7507 |
STAY,FRONT FENDER,RH Price: $9.22 |
| 53044 |
53044-1303 |
TRIM Price: $4.38 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009A |
92009-1332 |
SCREW,TAPPING,5X10 Price: $3.92 |
| 92009B |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92022 |
92022-1093 |
WASHER,6.5X16X1.0 Price: $2.08 |
| 92022A |
92022-1346 |
WASHER,6.5X20X1.6,BLACK Price: $0.49 |
| 92039 |
92039-0776 |
RIVET This part replaces 92039-1229. Price: $1.19 |
| 92066 |
92066-1485 |
PLUG Price: $2.44 |
| 92071 |
92071-7503 |
GROMMET,FUEL TANK COV Price: $5.32 |
