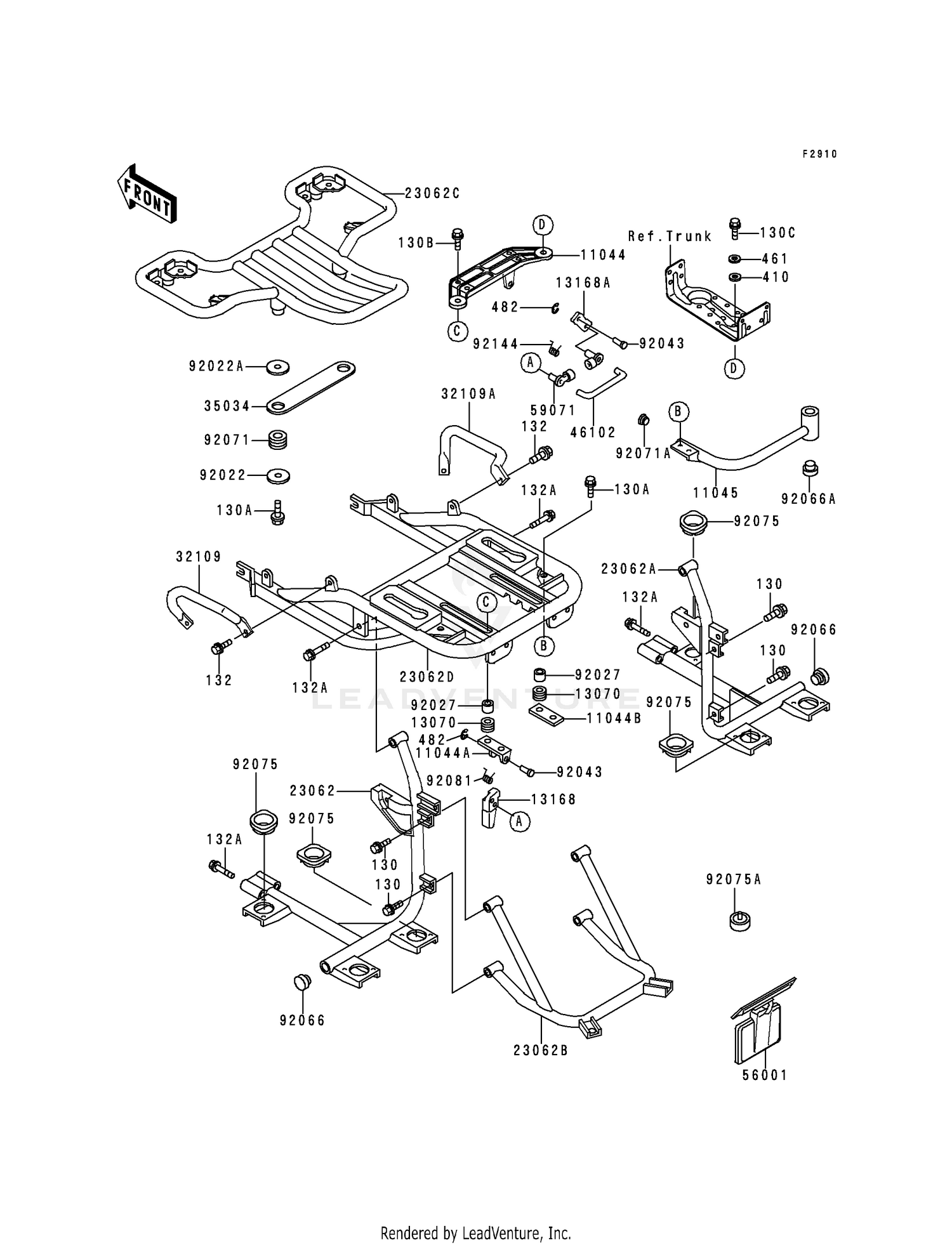

ACCESSORY (TRUNK BRACKET)

ACCESSORY (TRUNK BRACKET)

Parts (38)

RefPart NumberDescription
130 130AA0614 BOLT-FLANGED,6X14 This part replaces 130B0614. Price: $0.49
130A 130C0610 BOLT-FLANGED,6X10,BLACK Price: $2.86
130B 130CB0620 BOLT-FLANGED,6X20 This part replaces 130C0620. Price: $7.65
130C 130BB0820 BOLT-FLANGED,8X20 This part replaces 130J0820. Price: $0.84
132 132E0816 BOLT-FLANGED-SMALL,8X Price: $5.23
132A 132E0855 BOLT-FLANGED-SMALL,8X55 Price: $6.52
410 92022-1554 WASHER,PLAIN,8MM This part replaces 410F0800. Price: $4.86
461 461DB0800 WASHER-SPRING,8MM,BLA This part replaces 461K0800. Price: $2.51
482 482EA4000 CIRCLIP-TYPE-E This part replaces 482L4000. Price: $0.68
11044 11044-1637 BRACKET,TRUNK Price: $93.64
11044A 11044-1676 BRACKET,TRUNK,LH Price: $21.83
11044B 11044-1677 BRACKET,TRUNK,RH Price: $12.72
11045 11045-1920 BRACKET Price: $108.78
13070 13070-1151 GUIDE Price: $6.50
13168 13168-1307 LEVER Price: $10.87
13168A 13168-1329 LEVER Price: $8.59
23062 23062-1060 BRACKET-COMP,LH Price: $389.74
23062A 23062-1061 BRACKET-COMP,RH Price: $389.74
23062B 23062-1062 BRACKET-COMP,TAIL Price: $215.79
23062C 23062-1073 BRACKET-COMP Price: $537.24
23062D 23062-1074 BRACKET-COMP,CNT Price: $879.57
32109 32109-1137 GRIP-FRAME,LH Price: $37.79
32109A 32109-1138 GRIP-FRAME,RH Price: $37.79
35034 35034-1220 REINFORCE Price: $25.98
46102 46102-1182 ROD Price: $5.96
56001 56001-1268 MIRROR-ASSY,VANITY Price: $115.97
59071 59071-1103 JOINT Price: $8.68
92022 92022-1248 WASHER,6.2X26X1 Price: $6.56
92022A 92022-1638 WASHER,CAP TYPE Price: $9.89
92027 92027-1983 COLLAR,6.8X10X9.5 Price: $3.54
92043 92043-1308 PIN,6X28 Price: $6.56
92066 92066-1220 PLUG Price: $4.96
92066A 92066-1287 PLUG Price: $5.90
92071 92071-1131 GROMMET Price: $7.77
92071A 92071-1156 GROMMET Price: $5.40
92075 92075-1840 DAMPER Price: $10.53
92075A 92075-1844 DAMPER Price: $10.19
92081 92081-1967 SPRING,RETURN Price: $5.40
