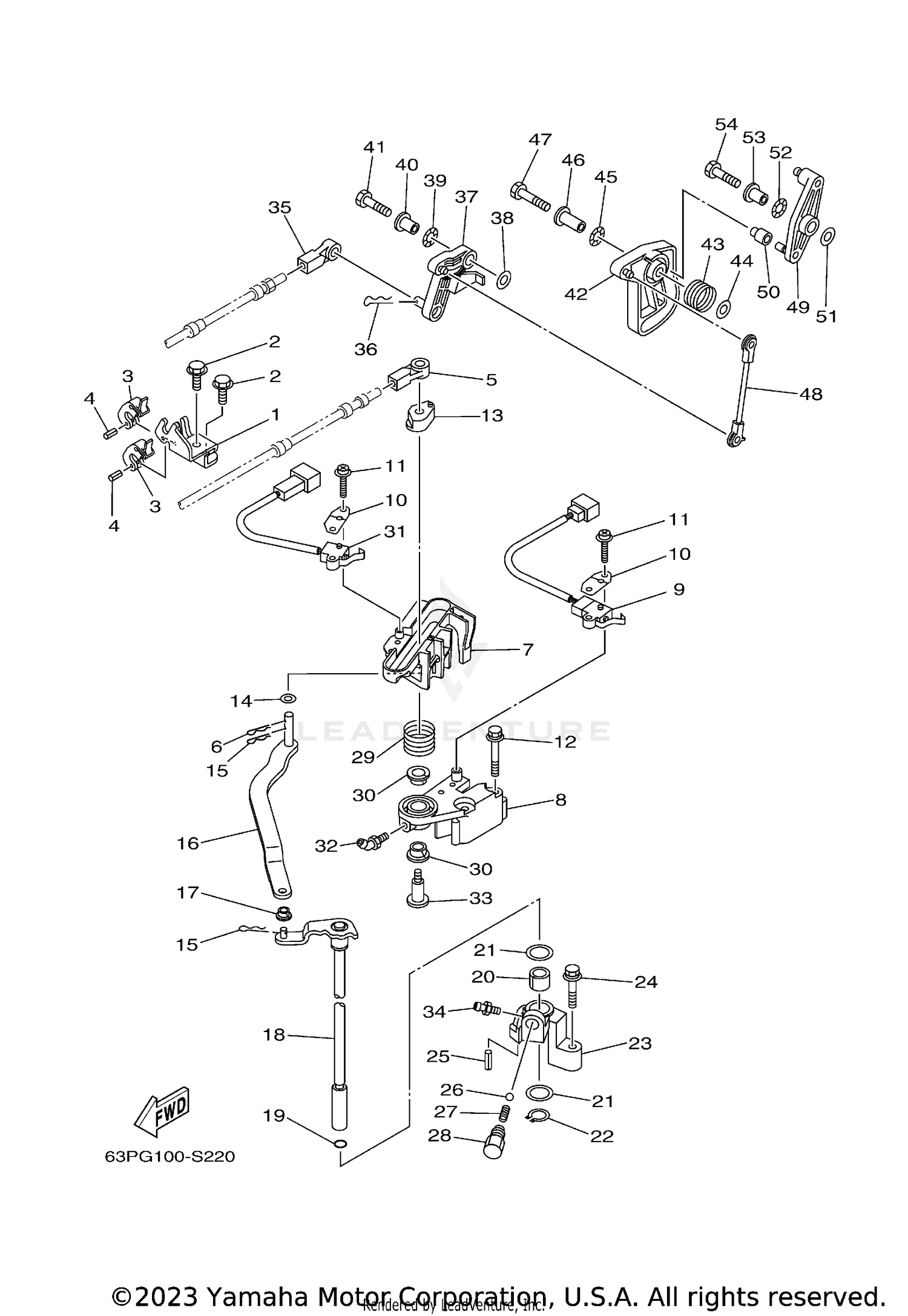

| Ref | Part Number | Description |
|---|
| 1 |
63P-48531-10-00 |
BRACKET, REMOTE CONTROL 1 Price: $30.95 |
| 2 |
90109-06316-00 |
BOLT Price: $1.90 |
| 3 |
6E5-48538-00-00 |
CLAMP, CABLE 1 Price: $40.65 |
| 4 |
91690-30010-00 |
PIN, SPRING Price: $6.15 |
| 5 |
6E5-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $14.05 |
| 6 |
90468-18008-00 |
CLIP Price: $1.55 |
| 7 |
6DA-44176-00-00 |
BRACKET Price: $34.20 |
| 8 |
63P-44117-01-00 |
BRACKET Price: $33.50 |
| 9 |
69J-8259F-00-00 |
SWITCH ASSY Price: $113.05 |
| 10 |
61A-82588-01-00 |
PLATE Price: $5.95 |
| 11 |
97985-04116-00 |
SCREW, WITH WASHER Price: $3.55 |
| 12 |
97E95-06550-00 |
BOLT, HEXAGON W/W Price: $1.85 |
| 13 |
63P-44122-00-00 |
BUSHING, SHIFT ROD LEVER Price: $6.40 |
| 14 |
90202-08M20-00 |
WASHER, PLATE Price: $6.40 |
| 15 |
90468-18008-00 |
CLIP Price: $1.55 |
| 16 |
6DA-44121-00-00 |
LEVER, SHIFT ROD Price: $41.65 |
| 17 |
90386-06M12-00 |
BUSH Price: $10.10 |
| 18 |
6DA-44120-12-00 |
HANDLE GEAR SHIFT Price: $279.90 |
| 19 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 20 |
90386-16M66-00 |
BUSH Price: $3.55 |
| 21 |
90202-16061-00 |
WASHER, PLATE Price: $10.40 |
| 22 |
93410-16006-00 |
CIRCLIP Price: $9.49 |
| 23 |
63P-44118-00-00 |
BRACKET Price: $47.25 |
| 24 |
97E75-06535-00 |
BOLT, HEXAGON W/W Price: $4.40 |
| 25 |
91690-30010-00 |
PIN, SPRING Price: $6.15 |
| 26 |
93501-04M02-00 |
BALL Price: $2.10 |
| 27 |
90501-12082-00 |
SPRING, COMPRESSION Price: $6.60 |
| 28 |
648-42715-00-00 |
BUSHING Price: $15.40 |
| 29 |
90508-20M31-00 |
SPRING, TORSION Price: $11.40 |
| 30 |
90386-12069-00 |
BUSH Price: $10.40 |
| 31 |
60V-8259F-01-00 |
SWITCH ASSY Price: $57.55 |
| 32 |
93700-06M01-00 |
NIPPLE, GREASE Price: $8.60 |
| 33 |
90109-08019-00 |
BOLT Price: $17.70 |
| 34 |
93700-06M03-00 |
NIPPLE, GREASE Price: $8.25 |
| 35 |
6E5-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $14.05 |
| 36 |
90468-18008-00 |
CLIP Price: $1.55 |
| 37 |
63P-42154-10-00 |
LEVER, THROTTLE CONTROL Price: $11.90 |
| 38 |
90201-06M31-00 |
WASHER, PLATE Price: $3.45 |
| 39 |
90206-10M04-00 |
WASHER, WAVE Price: $7.40 |
| 40 |
90387-06M29-00 |
COLLAR Price: $9.10 |
| 41 |
97D95-06025-00 |
BOLT, HEXAGON DEEP Price: $0.95 |
| 42 |
63P-41213-00-00 |
CAM, ACCEL. Price: $16.05 |
| 43 |
69J-44135-00-00 |
SPRING Price: $10.10 |
| 44 |
90201-06M31-00 |
WASHER, PLATE Price: $3.45 |
| 45 |
90206-10M04-00 |
WASHER, WAVE Price: $7.40 |
| 46 |
90387-06M82-00 |
COLLAR Price: $6.25 |
| 47 |
97D95-06035-00 |
BOLT, HEXAGON DEEP Price: $1.00 |
| 48 |
63P-41237-00-00 |
JOINT, LINK Price: $13.00 |
| 49 |
63P-42157-00-00 |
LEVER, THROTTLE Price: $23.05 |
| 50 |
68V-42171-00-00 |
BUSHING Price: $7.90 |
| 51 |
90201-06M31-00 |
WASHER, PLATE Price: $3.45 |
| 52 |
90206-10M04-00 |
WASHER, WAVE Price: $7.40 |
| 53 |
90387-06M29-00 |
COLLAR Price: $9.10 |
