| Ref | Part Number | Description |
|---|
| 1 |
114045200 |
Hair Pin Price: $11.49 |
| 2 |
205052544 |
Socket Screw M5 X 25 Price: $1.69 |
| 3 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 Price: $2.89 |
| 4 |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 6 |
234051410 |
Flat Washer M5 Price: $0.55 |
| 7 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. Price: $1.49 |
| 8 |
250000533 |
Hex. Flange Screw M8 X 1.25 X 16 Price: $3.09 |
| 9 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 10 |
417223086 |
Bushing Price: $36.99 |
| 11 |
250200144 |
Conical Spring Washer M14 Price: $4.49 |
| 12 |
250400063 |
Spring Pin M3 X 30 Price: $2.19 |
| 13 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 14 |
417222947 |
Roller Price: $21.99 |
| 15 |
250400060 |
Cotter Pin Price: $2.09 |
| 16 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 17 |
293370049 |
Circlip Price: $5.09 |
| 18 |
293370071 |
Circlip Price: $4.19 |
| 20 |
390909100 |
Avex Rivet Price: $0.30 |
| 21 |
390909200 |
Avex Rivet Price: $0.30 |
| 23 |
414817700 |
Spring, Blue/green Price: $47.99 |
| 24 |
417004302 |
Stopper Washer Price: $15.99 |
| 25 |
417005600 |
Washer Price: $4.19 |
| 26 |
417009205 |
Guard Price: $21.99 |
| 27 |
417127016 |
Pulley Roller Price: $25.99 |
| 28 |
417127137 |
Green, Spring Price: $42.99 |
| 29 |
417127116 |
Swivel Abutment Price: $9.59 |
| 30 |
417127155 |
Washer Price: $8.39 |
| 31 |
415129604 |
Calibration Ass'y Price: $22.49 |
| 32 |
417127317 |
Sliding Flange Ass'y Price: $164.99 |
| 33 |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 34 |
417127387 |
Fix Flange Ass'y Price: $499.99 |
| 36 |
417222312 |
Spring Seat Price: $9.79 |
| 37 |
417222546 |
Ramp 414 Price: $39.99 |
| 38 |
417222594 |
Pin Price: $15.49 |
| 38a |
XXX |
Not Available As Spare Parts Price: Call Us |
| 39 |
417222671 |
Lever Price: $49.99 |
| 40 |
417223164 |
Lever Axle Price: $4.59 |
| 41 |
417223232 |
Fixed Flange Ass'y Price: $399.99 |
| 42 |
417223271 |
Slider Shoe Price: $8.49 |
| 43 |
417223444 |
Sliding Flange Ass'y Price: $349.99 |
| 44 |
417223471 |
Bushing Price: $8.14 |
| 45 |
417223501 |
Calibration Screw Price: $14.49 |
| 46 |
417300357 |
Belt Guard Price: $93.99 |
| 47 |
417300381 |
Guide Price: $11.99 |
| 48 |
417300571 |
Drive Belt This part replaces 417300391. Price: $239.99 |
| 49 |
417300409 |
TRA 7 Bolt (M14 X 153.5 mm) Price: $43.99 |
| 50 |
417300421 |
Reinforcement Plate Price: $4.49 |
| 51 |
417300423 |
Front Bracket Price: $7.49 |
| 52 |
417300430 |
Front Support Price: $14.99 |
| 53 |
417300440 |
CVT Air Duct Pulley Price: $29.99 |
| 54 |
417300445 |
Stopper Price: $10.99 |
| 55 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership Price: $31.99 |
| 56 |
504152574 |
Ball Bearing Price: $35.99 |
| 57 |
516005503 |
Decal English Price: $0.01 |
| 58 |
516005507 |
RPM Sticker, English Price: $13.99 |
| 59 |
516005509 |
Safety Belt Guard Decal Price: $0.01 |
| 60 |
517225900 |
Flat Washer Price: $0.18 |
| 61 |
732401030 |
O-Ring Price: $1.19 |
| 62 |
417009204 |
Bushing Price: $17.49 |
| 63 |
417223666 |
Governor Cup Ass'y Price: $499.99 |
| 64 |
250400050 |
Spring Pin M10 X 22 Price: $3.09 |
| 65 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip Price: $4.19 |
| 66 |
417225071 |
Ring Gear_Starter This part replaces 417223739. Price: $244.99 |
| 67 |
250000416 |
Serrated Hex. Flange Bolt M6 Price: $4.29 |
| 68 |
417127294 |
Pivot Stud Price: $14.99 |
| 69 |
417127319 |
Cam Ass'y Price: $204.99 |
| 70 |
250000757 |
Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. Price: $2.09 |

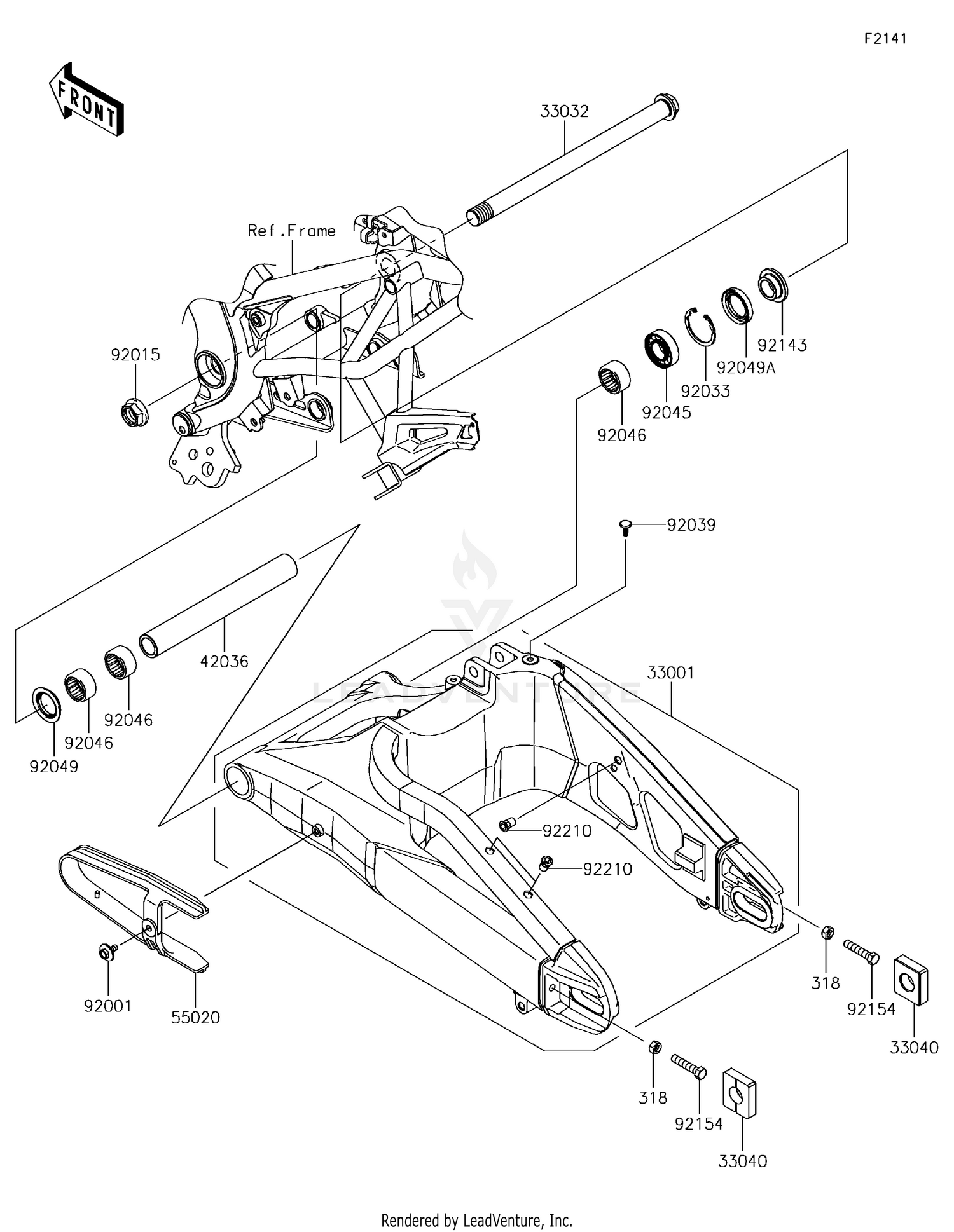

| 318 |
318BA0800 |
NUT-HEX-SMALL,8MM Price: $1.34 |
| 33001 |
33001-0651-18R |
ARM-COMP-SWING,F.S.BLACK Price: $755.34 |
| 33032 |
33032-0041 |
SHAFT-SWING ARM,20X300 Price: $100.34 |
| 33040 |
33040-1109 |
ADJUSTER-CHAIN Price: $19.66 |
| 42036 |
42036-0066 |
SLEEVE,SWING ARM,L=219.5 Price: $71.54 |
| 55020 |
55020-0234 |
GUARD,CHAIN Price: $40.46 |
| 92001 |
92001-1950 |
BOLT,6X16 Price: $4.31 |
| 92015 |
92015-1724 |
NUT,FLANGED,20MM Price: $14.90 |
| 92033 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 92039 |
92039-3787 |
RIVET Price: $3.90 |
| 92045 |
92045-0017 |
BEARING-BALL,6004UL11 Price: $14.39 |
| 92046 |
92046-0008 |
BEARING-NEEDLE,7E-HVS 28X34X17 Price: $21.54 |
| 92049 |
92049-0132 |
SEAL-OIL Price: $9.39 |
| 92049A |
92049-0138 |
SEAL-OIL Price: $9.39 |
| 92143 |
92143-1727 |
COLLAR,SWING ARM,RH,L=12.5 Price: $19.64 |
| 92154 |
92154-0288 |
BOLT,8X40 Price: $4.92 |
