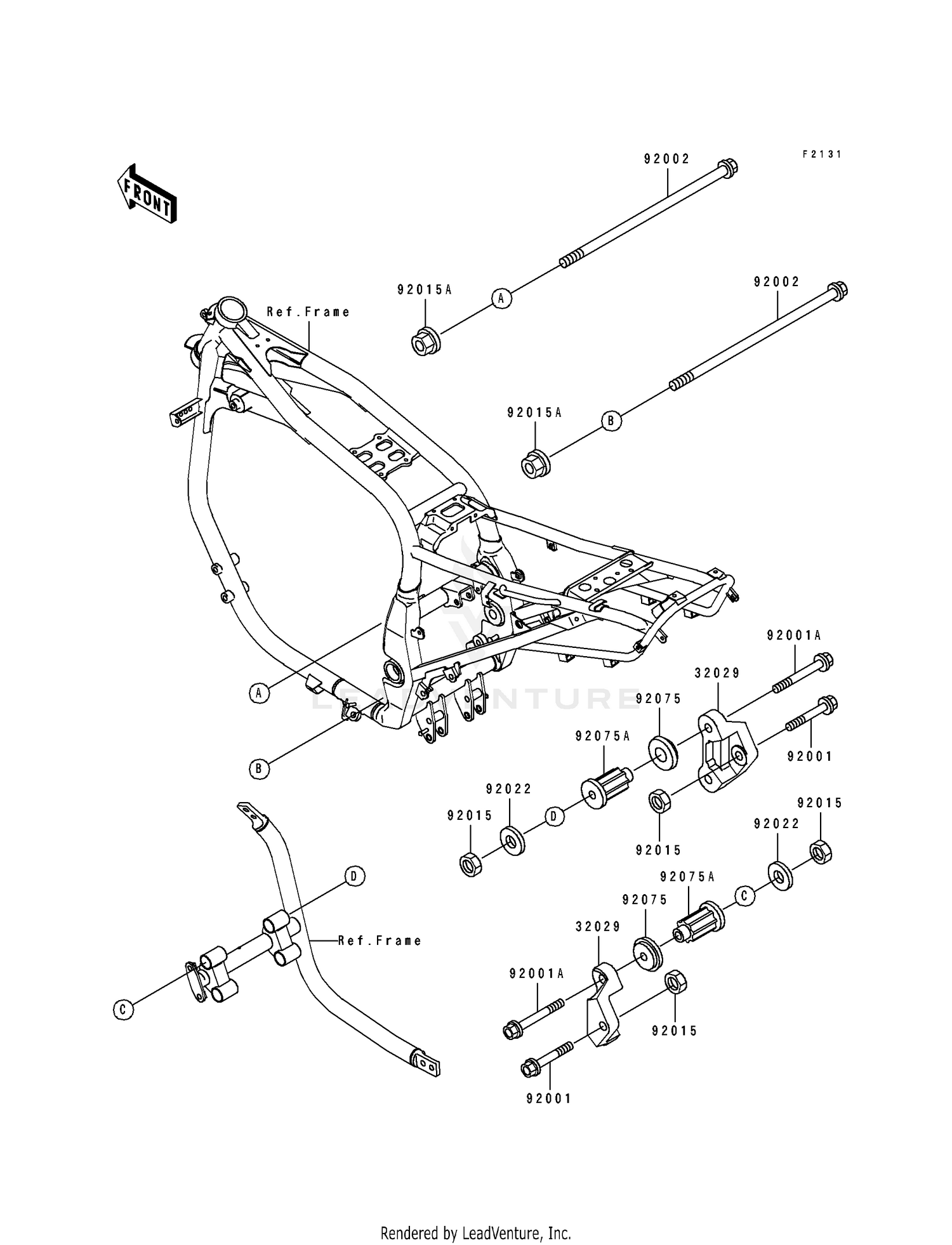

FRAME FITTINGS
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 32029 | 32029-1615 | BRACKET-ENGINE Price: $68.03 |
| 92001 | 92001-1617 | BOLT,FLANGED,10X60 Price: $9.89 |
| 92001A | 92001-1619 | BOLT,FLANGED,10X85 Price: $8.10 |
| 92002 | 92151-1594 | BOLT,FLANGED,10X205 This part replaces 92002-1321. Price: $11.25 |
| 92015 | 92015-1429 | NUT,LOCK,10MM Price: $6.88 |
| 92015A | 92015-1522 | NUT,LOCK,10MM Price: $7.62 |
| 92022 | 92022-1246 | WASHER,10.5X37X1.6 Price: $7.62 |
| 92075 | 92075-1274 | DAMPER,ENGINE MOUNT,SIDE Price: $17.60 |
