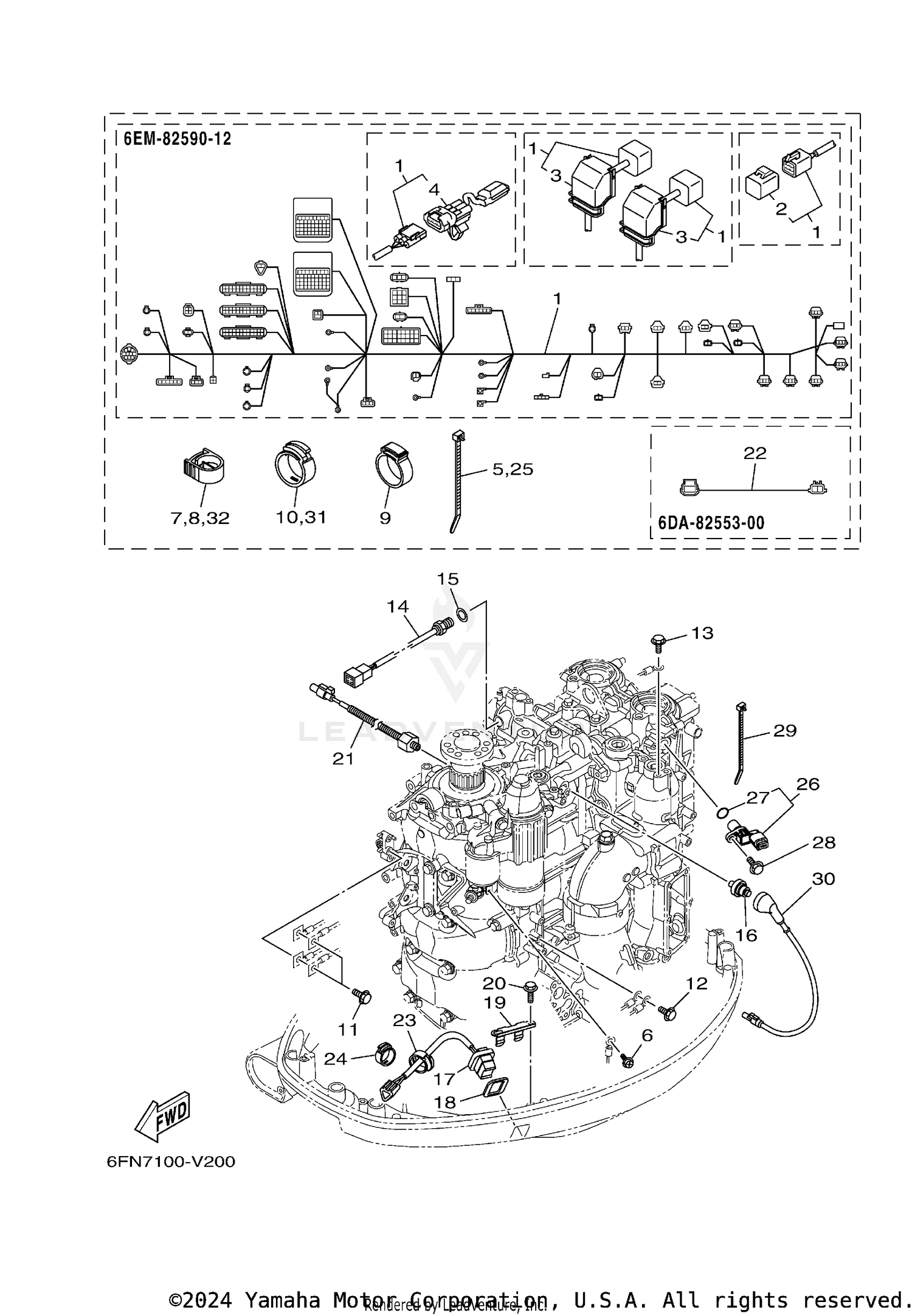

| Ref | Part Number | Description |
|---|
| 2 |
6Y8-82582-11-00 |
CAP 1 (4 PIN) Price: $7.00 |
| 3 |
6EM-82599-00-00 |
COVER, CONNECTER Price: $6.85 |
| 5 |
90465-13M18-00 |
CLAMP Price: $1.85 |
| 6 |
97985-04308-00 |
SCREW, WITH WASHER Price: $1.55 |
| 7 |
90464-18004-00 |
CLAMP Price: $4.40 |
| 8 |
90464-18004-00 |
CLAMP Price: $4.40 |
| 9 |
90464-26001-00 |
CLAMP Price: $2.34 |
| 10 |
90464-16001-00 |
CLAMP Price: $2.39 |
| 11 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 12 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 13 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 14 |
6CJ-85790-00-00 |
THERMOSENSOR ASSY Price: $72.60 |
| 15 |
90430-14115-00 |
GASKET Price: $3.00 |
| 16 |
68V-82504-00-00 |
OIL PRESSURE SWITCH ASSY Price: $84.90 |
| 17 |
69J-82563-01-00 |
TRIM & TILT SWITCH ASSY Price: $63.90 |
| 18 |
69J-82587-01-00 |
GASKET Price: $5.55 |
| 19 |
69J-83614-00-00 |
BRACKET Price: $19.20 |
| 20 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 21 |
6CJ-85780-02-00 |
SENSOR, KNOCK This part replaces 6CJ-85780-01-00. Price: $355.85 |
| 22 |
6DA-82553-00-00 |
EXTENSION, WIRE LEAD Price: $26.45 |
| 23 |
90464-16001-00 |
CLAMP Price: $2.39 |
| 24 |
90464-16001-00 |
CLAMP Price: $2.39 |
| 25 |
90465-13M18-00 |
CLAMP Price: $1.85 |
| 26 |
6P2-85896-00-00 |
SENSOR, CAM POSITION Price: $204.10 |
| 27 |
6P2-85075-00-00 |
O-RING Price: $10.10 |
| 28 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 29 |
90465-11M59-00 |
CLAMP Price: $7.10 |
| 30 |
6EK-82553-11-00 |
EXTENSION, WIRE LEAD Price: $25.95 |
| 31 |
90464-16001-00 |
CLAMP Price: $2.39 |
