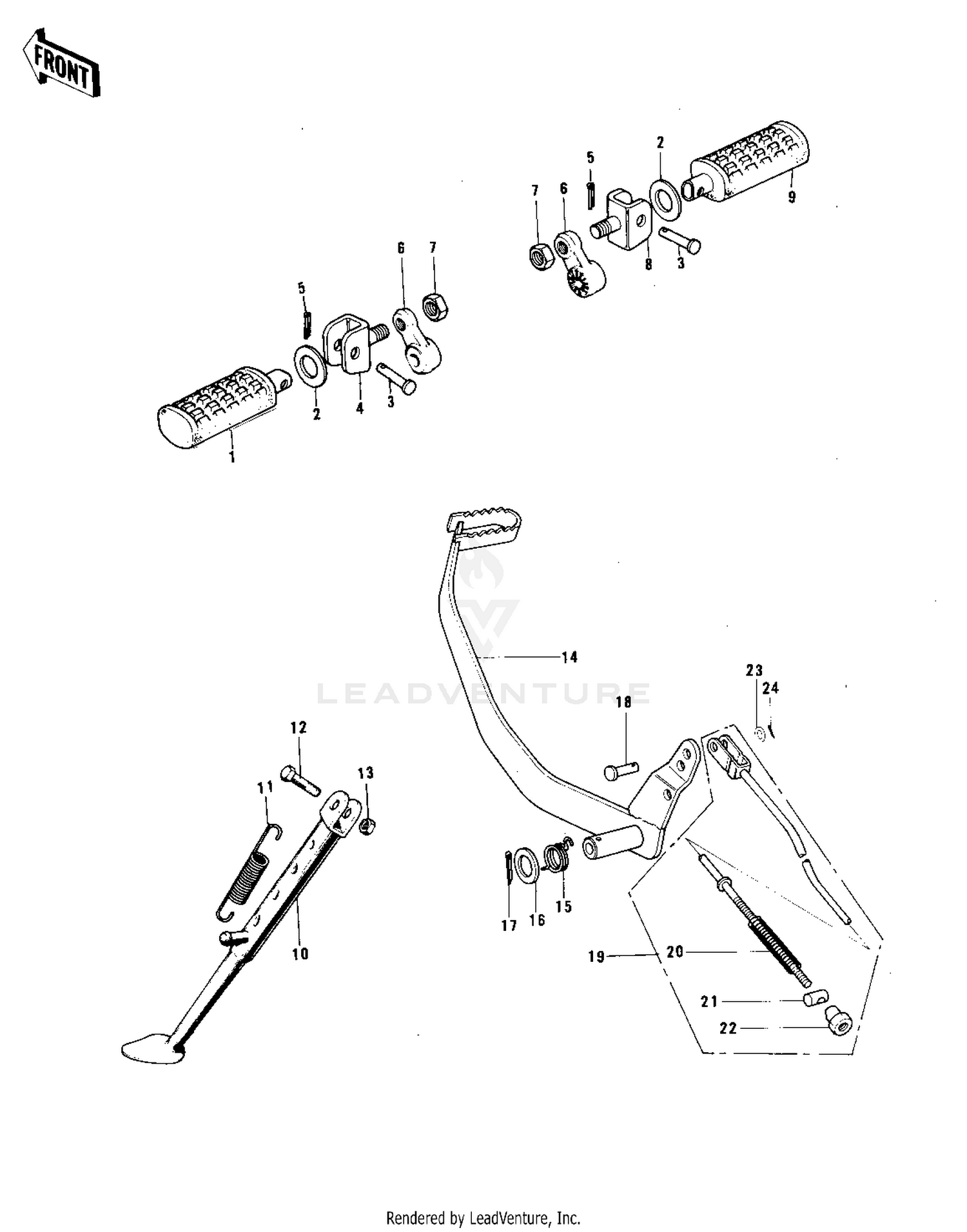

| Ref | Part Number | Description |
|---|
| 1 |
34027-1114 |
STEP-ASSY,FR,LH Price: $35.42 |
| 2 |
92022-204 |
WASHER PL 22.5X36X2.3 Price: $0.90 |
| 3 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 4 |
34021-001-10 |
HOLDER,FOTRST BAR,LH Price: $19.65 |
| 5 |
550AA2515 |
PIN-COTTER,2.5X15 This part replaces 550D2515. Price: $0.47 |
| 6 |
34007-009 |
BRACKET-FOOTREST BAR Price: $31.70 |
| 7 |
92210-1373 |
NUT,LOCK,12MM This part replaces 92019-009. Price: $7.29 |
| 8 |
34021-003-10 |
HOLDER-FOTRST BAR,RH Price: $7.15 |
| 9 |
34027-1115 |
STEP-ASSY,FR,RH Price: $42.54 |
| 10 |
34024-028 |
STAND-SIDE Price: $48.73 |
| 11 |
34023-005 |
SPRING MAIN STAND Price: $10.92 |
| 12 |
113G1028 |
BOLT,10X28 Price: $9.34 |
| 13 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 14 |
43001-046 |
PEDAL-BRAKE Price: $39.04 |
| 15 |
43005-033 |
SPRING,BRAKE PEDAL Price: $7.78 |
| 16 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 17 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 18 |
92043-064 |
PIN,6X17 Price: $4.69 |
| 19 |
43010-013 |
ROD ASSY-BRAKE Price: $17.91 |
| 20 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 21 |
92043-0147 |
PIN,BRAKE ROD This part replaces 92043-039. Price: $6.38 |
| 22 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 23 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
