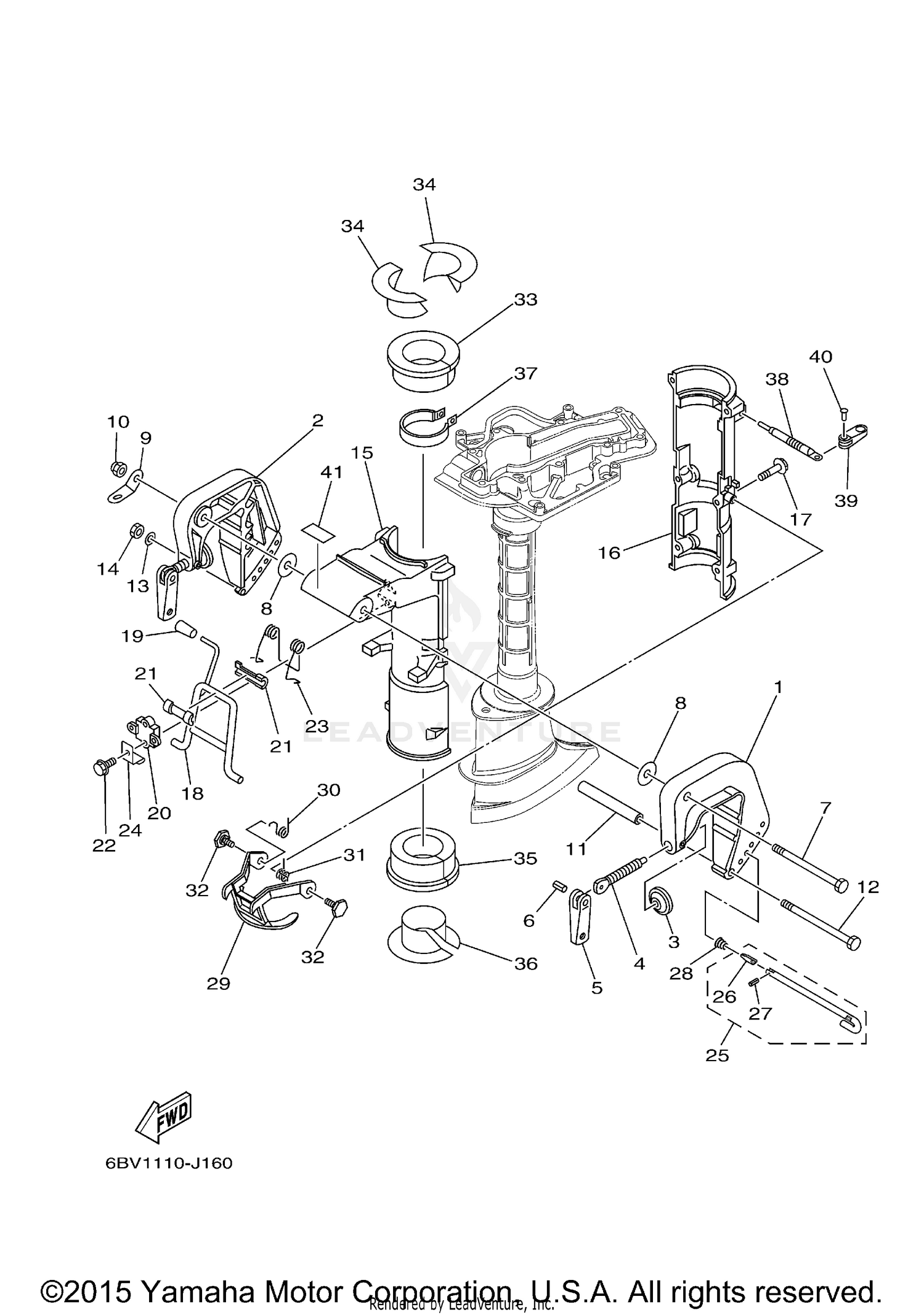

| Ref | Part Number | Description |
|---|
| 1 |
6E0-43111-02-8D |
BRACKET, CLAMP 1 This part replaces 6L8-G3111-01-4D. Price: $84.30 |
| 2 |
6E0-43112-01-8D |
BRACKET, CLAMP 2 This part replaces 6L8-G3112-00-4D. Price: $84.30 |
| 3 |
648-43114-01-00 |
PAD, TRANSOM CLAMP This part replaces 620-43114-00-00. Price: $14.20 |
| 4 |
6E0-43116-01-00 |
SCREW, TRANSOM CLAMP Price: $33.70 |
| 5 |
6EE-G3118-00-00 |
HANDLE, TRANSOM CLAMP This part replaces 6L8-G3118-01-00. Price: $4.75 |
| 6 |
90243-04M01-00 |
PIN Price: $5.95 |
| 7 |
90101-08M07-00 |
BOLT Price: $14.49 |
| 8 |
90202-08M58-00 |
WASHER, PLATE Price: $6.25 |
| 9 |
6A1-43113-01-00 |
PLATE, CLAMP BRACKET This part replaces 68D-G3113-00-00. Price: $8.60 |
| 10 |
95780-08300-00 |
NUT, FLANGE This part replaces 90185-08057-00. Price: $11.80 |
| 11 |
90387-06M11-00 |
COLLAR Price: $13.25 |
| 12 |
90101-06335-00 |
BOLT Price: $6.15 |
| 13 |
92990-06600-00 |
WASHER, PLATE Price: $2.85 |
| 14 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 15 |
6EE-43311-00-8D |
BRACKET, SWIVEL 1 This part replaces 68D-G3311-01-4D. Price: $204.00 |
| 16 |
6EE-43312-00-8D |
BRACKET, SWIVEL 2 This part replaces 68D-G3312-01-4D. Price: $76.10 |
| 17 |
95D95-06035-00 |
BOLT, FLANGE DEEP This part replaces 95895-06035-00. Price: $1.10 |
| 18 |
6BX-43181-00-00 |
LEVER, TILT STOP 1 Price: $62.10 |
| 19 |
6E0-43632-00-00 |
KNOB, TILT Price: $10.10 |
| 20 |
6E0-43313-00-94 |
BRACKET, SWIVEL 3 Price: $14.20 |
| 21 |
620-43189-00-00 |
BUSHING Price: $13.50 |
| 22 |
95D95-06020-00 |
BOLT, FLANGE DEEP This part replaces 95895-06020-00. Price: $5.35 |
| 23 |
6BX-48561-00-00 |
SPRING 1 Price: $10.80 |
| 24 |
6EE-G3319-00-00 |
PLATE This part replaces 6BX-G3319-00-00. Price: $4.90 |
| 25 |
6E0-43160-01-00 |
TILT ROD ASSY This part replaces 68D-G3160-00-00. Price: $25.00 |
| 26 |
6EE-G3165-00-00 |
PLATE, TILT LOCK This part replaces 6N0-G3165-00-00. Price: $7.45 |
| 27 |
91690-30008-00 |
PIN, SPRING Price: $10.49 |
| 28 |
90502-08M05-00 |
SPRING, CONICAL Price: $4.40 |
| 29 |
6BX-43614-00-00 |
PLATE, TILT LOCK Price: $68.45 |
| 30 |
6BX-43188-00-00 |
SPRING Price: $6.15 |
| 31 |
6BX-43198-00-00 |
SPRING 2 Price: $4.90 |
| 32 |
90109-06M84-00 |
BOLT Price: $4.35 |
| 33 |
6EE-42537-00-00 |
BUSHING, PIVOT SHAFT This part replaces 68D-G2537-00-00. Price: $26.40 |
| 34 |
6EE-42539-00-00 |
BUSHING, PIVOT SHAFT This part replaces 68D-G2539-00-00. Price: $15.20 |
| 35 |
6EE-42538-00-00 |
BUSHING, PIVOT SHAFT This part replaces 6BX-G2538-00-00. Price: $39.55 |
| 36 |
6EE-G2549-00-00 |
BUSHING, PIVOT SHAFT This part replaces 6BX-G2549-00-00. Price: $16.70 |
| 37 |
6E0-42528-04-00 |
PLATE, FRICTION This part replaces 6E0-42528-03-00. Price: $25.65 |
| 38 |
6L5-42529-01-00 |
SCREW, FRICTION PIECE Price: $15.95 |
| 39 |
6EE-G2561-00-00 |
KNOB, STEERING LOCK This part replaces 68D-G2561-01-00. Price: $7.05 |
| 40 |
90266-04M05-00 |
RIVET Price: $4.40 |
