| Ref | Part Number | Description |
|---|
| 120 |
120CA0818 |
BOLT-SOCKET,8X18 Price: $2.80 |
| 130 |
130BA0620 |
BOLT-FLANGED,6X20 Price: $1.74 |
| 1050 |
503192759 |
Stopper Strap Price: $26.99 |
| 1060 |
250200128 |
Flat Washer 8 mm Price: $4.49 |
| 1070 |
207683044 |
Hex. Flange Screw M8 X 30 Price: $1.69 |
| 1080 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 2000a |
503191554 |
Bushing Price: $6.14 |
| 2000b |
503192531 |
Rocker Price: $78.99 |
| 2000c |
503191555 |
Swivel Bushing Price: $7.83 |
| 2000d |
503193037 |
Bushing Price: $16.18 |
| 2000e |
503189282 |
Bushing Price: $4.34 |
| 2000f |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 2000g |
233601416 |
Elastic Locking Nut M10 X 1.5 Price: $1.69 |
| 2010 |
503190698 |
Axle Price: $21.99 |
| 2030 |
503192496 |
Washer Price: $0.79 |
| 2040 |
503191926 |
Washer Price: $1.59 |
| 2050 |
207006056 |
Hex. Cap Screw M10 X 60 Price: $7.69 |
| 2060 |
233601466 |
Elastic Locking Nut M10 Price: $2.19 |
| 2070 |
503191966 |
Lower Axle Price: $15.99 |
| 2090 |
503190656 |
Washer Price: $2.99 |
| 2100 |
503192491 |
Washer Price: $4.69 |
| 2110 |
250000537 |
Hex. Cap Screw M12 X 35 Price: $3.29 |
| 3000b |
503192767 |
Bushing Price: $17.39 |
| 3000c |
503191555 |
Swivel Bushing Price: $7.83 |
| 3000d |
503191640 |
Cushion Price: $5.93 |
| 3000e |
503192981 |
Lower Shaft Price: $21.99 |
| 3000g |
503192749 |
Guide Block Price: $6.29 |
| 3000h |
503192918 |
LH Cam Block Price: $15.49 |
| 3000j |
503192919 |
RH Cam Block Price: $15.49 |
| 3000k |
503192491 |
Washer Price: $4.69 |
| 3000m |
205523554 |
Socket Head Screw M12 X 35 Price: $4.49 |
| 3000n |
408200700 |
Grease Fitting Price: $3.59 |
| 3000p |
503191565 |
LH Cam Adjuster Price: $16.99 |
| 3000q |
503191566 |
RH Cam Adjuster Price: $16.99 |
| 3000r |
293370013 |
E-Circlip Price: $0.67 |
| 3000s |
503192921 |
O-Ring Price: $2.39 |
| 3000t |
516004900 |
LH Block Sticker Decal Price: $18.99 |
| 3000u |
516004901 |
RH Block Sticker Decal Price: $18.99 |
| 3010 |
503193158 |
Black, LH Spring Square Price: $81.99 |
| 3020 |
503193159 |
Black, RH Spring Square Price: $81.99 |
| 3060 |
503190434 |
Labyrinth Seal Price: $6.19 |
| 3070a |
503193548 |
Ball Bearing Price: $17.99 |
| 3070b |
415129780 |
Retaining Ring Price: $16.49 |
| 3080 |
503189146 |
Axle Spring Price: $9.79 |
| 3090 |
503192592 |
Labyrinth Ring Price: $5.09 |
| 3100c |
503192494 |
Washer Price: $3.29 |
| 3100d |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 3100e |
503191555 |
Swivel Bushing Price: $7.83 |
| 3110 |
293370080 |
Retaining Ring Price: $2.39 |
| 3170 |
503192496 |
Washer Price: $0.79 |
| 3180 |
207204056 |
Cap Screw Hex. M10 X 40 Price: $7.69 |
| 3190 |
503189156 |
Pivot Arm Axle Price: $21.99 |
| 3200 |
503192494 |
Washer Price: $3.29 |
| 3210 |
503192440 |
Bolt M8 X 248mm Price: $31.99 |
| 3220 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 4000 |
503193903 |
Rod Link Price: $27.49 |
| 4030 |
503190643 |
Axle Bar (Long) Price: $17.49 |
| 4060 |
503192494 |
Washer Price: $3.29 |
| 4070 |
503193372 |
Screw M8 X 90 Price: $4.49 |
| 4080 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 4090 |
503192555 |
Axle Bar Price: $14.49 |
| 4100 |
503192494 |
Washer Price: $3.29 |
| 4110 |
234082410 |
Flat Washer 8 mm Price: $1.49 |
| 4120 |
207085556 |
Hex. Screw M8 X 55 Price: $1.69 |
| 13271 |
13271-0952 |

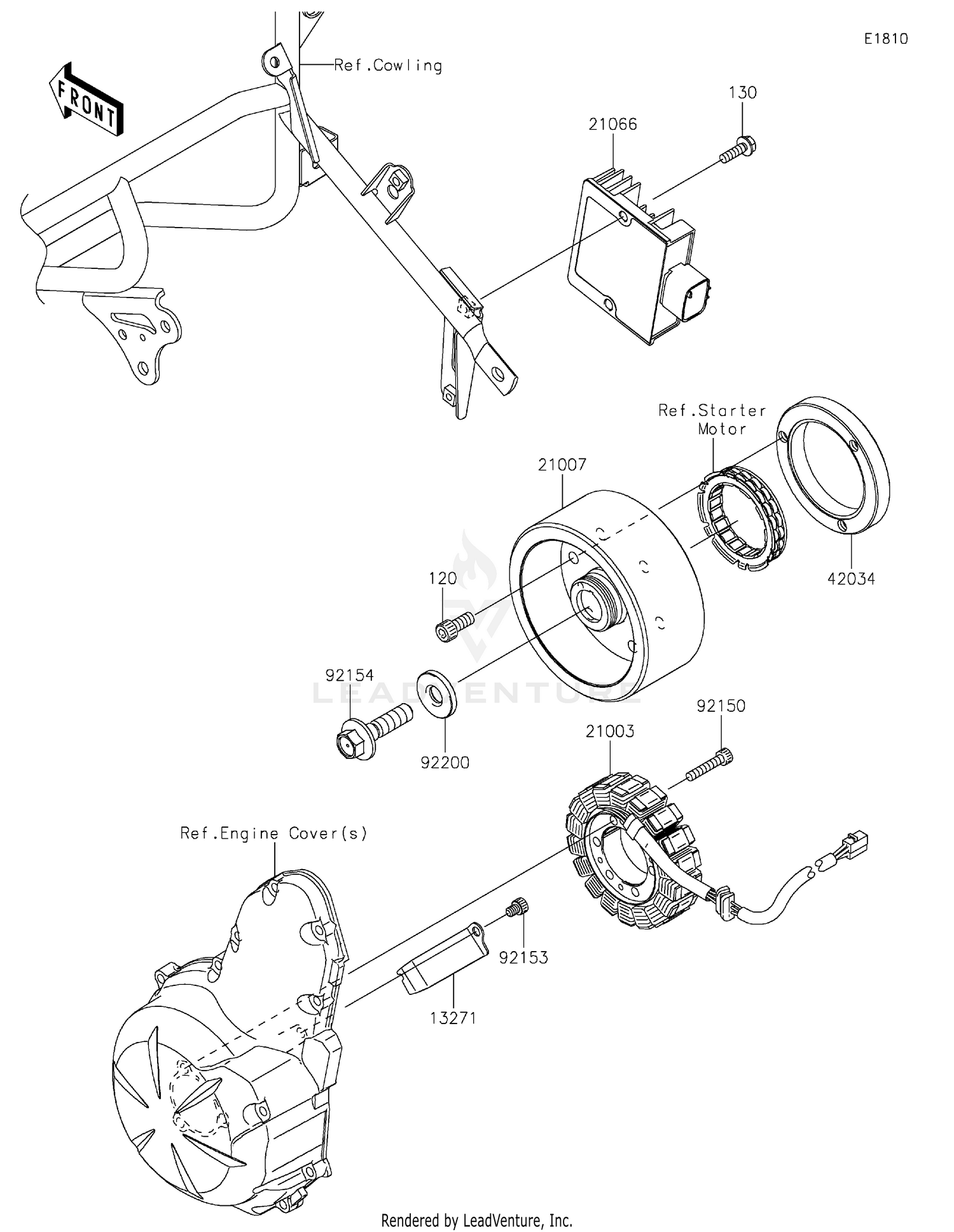

PLATE Price: $7.75 |
| 21003 |
21003-0206 |
STATOR This part replaces 21003-0164. Price: $355.89 |
| 21007 |
21007-0601 |
ROTOR Price: $519.70 |
| 21066 |
21066-0750 |
REGULATOR-VOLTAGE Price: $183.57 |
| 42034 |
42034-1143 |
COUPLING Price: $121.16 |
| 92150 |
92150-1433 |
BOLT,SOCKET,6X30 Price: $4.87 |
| 92153 |
92153-1414 |
BOLT,SOCKET,6X8 Price: $1.78 |
| 92154 |
92154-1812 |
BOLT,FLANGED,12X45 Price: $18.69 |
