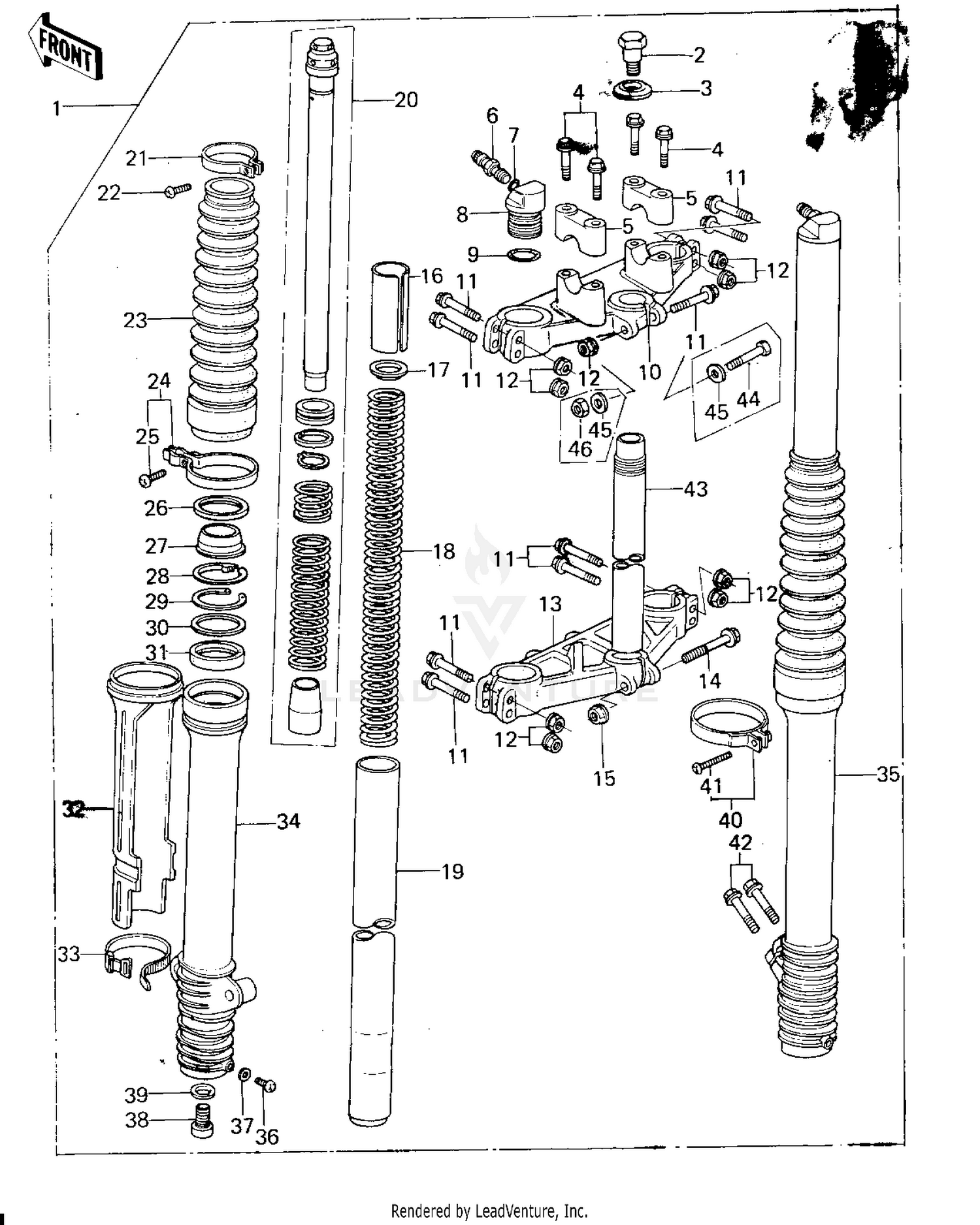

| Ref | Part Number | Description |
|---|
| 1 |
44001-1044 |
FORK-FRONT Price: $1,217.27 |
| 3 |
44043-052 |
WASHER Price: $8.01 |
| 4 |
92001-1059 |
BOLT,HEX HEAD,8X35 Price: $7.84 |
| 5 |
46012-1003 |
HOLDER,HANDLE BAR Price: $12.85 |
| 6 |
16126-1003 |
VALVE ASSY,AIR Price: $41.71 |
| 8 |
44029-1005 |
CAP,FORK TOP Price: $48.79 |
| 9 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 10 |
44039-1009 |
HEAD,STEERING STEM Price: $149.69 |
| 11 |
92001-1060 |
BOLT,HEX HEAD,8X53 Price: $3.45 |
| 12 |
44007-1002 |
NUT,8M/M Price: $3.57 |
| 13 |
44037-1005 |
STEM,STEERING Price: $237.44 |
| 14 |
92001-1061 |
BOLT,HEX HEAD,10X60 Price: $6.11 |
| 15 |
44007-1003 |
NUT 10M/M Price: $1.84 |
| 16 |
92026-1012 |
SPACER,FORK SPRING Price: $6.83 |
| 17 |
44028-033 |
GUIDE,FORK SPRING Price: $8.73 |
| 18 |
44026-1017 |
SPRING,FORK INNER Price: $29.09 |
| 19 |
44013-1009 |
TUBE,FORK INNER Price: $227.64 |
| 20 |
44022-1007 |
CYLINDER-FORK Price: $85.11 |
| 21 |
92072-1168 |
BAND,BOOT This part replaces 92072-1008. Price: $10.93 |
| 22 |
220AA0414 |
SCREW-PAN-CROS This part replaces 220B0414. Price: $4.60 |
| 23 |
49006-1009-BD |
BOOT,FORK,BLACK This part replaces 49006-1009. Price: $72.98 |
| 24 |
92072-1011 |
BAND,BOOTS L.H. Price: $12.63 |
| 25 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 26 |
32099-1002 |
CASE,DUST SHIELD Price: $26.92 |
| 27 |
92093-1007 |
DUST SHIELD,FORK Price: $12.13 |
| 28 |
13070-1003 |
GUIDE,FORK OUTER TUBE Price: $4.09 |
| 29 |
92033-1005 |
RING,SNAP,FORK OUTER Price: $14.64 |
| 30 |
92022-1027 |
WASHER,FORK OUTER Price: $5.14 |
| 31 |
92049-1216 |
SEAL-OIL,FORK OUTER P This part replaces 92049-1009. Price: $23.21 |
| 32 |
55020-1012 |
GUARD,FORK Price: $23.12 |
| 33 |
92072-1009 |
BAND,BOOTS Price: $5.34 |
| 34 |
44005-1010 |
TUBE,LH,FORK OUTER Price: $239.73 |
| 35 |
44006-1010 |
TUBE,RH,FORK OUTER Price: $268.20 |
| 36 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 37 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 39 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 40 |
92072-1010 |
BAND,BOOTS,R.H. Price: $5.34 |
| 41 |
220E0420A |
SCREW-PAN HEAD,4X20 Price: $2.76 |
| 42 |
92001-1058 |
BOLT,HEX HEAD,8X25 Price: $3.48 |
| 43 |
44052-008 |
SHAFT,STEERING STEM Price: $117.26 |
| 44 |
92001-1141 |
BOLT,HEX HEAD,8X57 Price: $3.45 |
| 45 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
