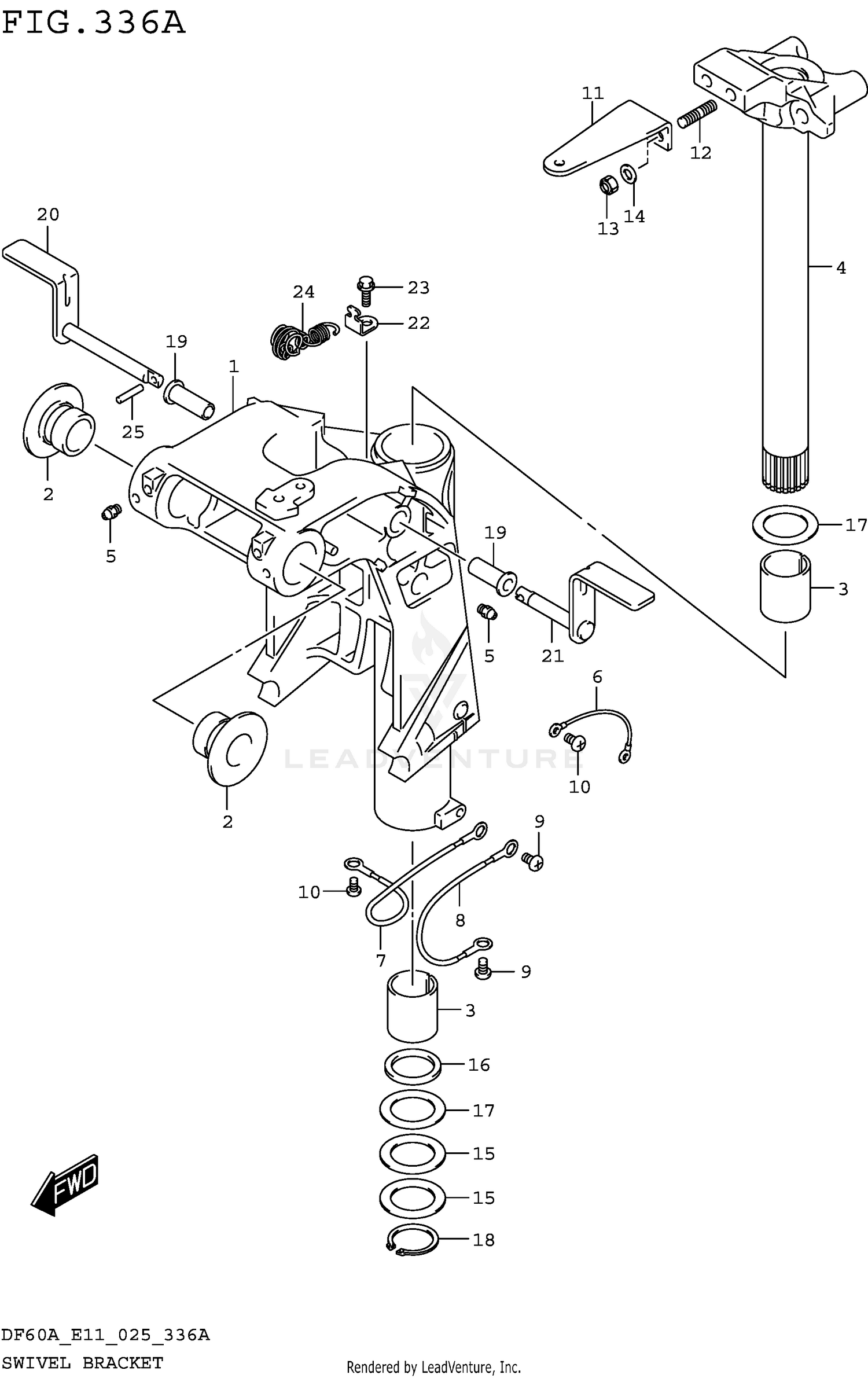

SWIVEL BRACKET (DF40A DF50A)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 43211-87J00 | BUSH SWIVEL BRACKET Price: Call Us |
| 3 | 43711-89J10 | BUSH STEERING Price: Call Us |
| 5 | 22511-99011 | NIPPLE GREASE Price: Call Us |
| 10 | 09125-05050 | SCREW (5X8) Price: Call Us |
| 11 | 43755-88L00 | ATTACHMENT STEERING BRACKET Price: Call Us |
| 12 | 09108-10161 | STUD BOLT (10X20) Price: Call Us |
| 13 | 09159-10050 | NUT (10X14) Price: Call Us |
| 14 | 09160-10165 | WASHER (10.5X19X2) Price: Call Us |
| 15 | 09160-39003 | WASHER (39.5X58X0.3) Price: Call Us |
| 16 | 09282-39001 | OIL SEAL (39X51X5) Price: Call Us |
| 17 | 09160-39002 | WASHER (39.5X58X1) Price: Call Us |
| 18 | 09380-38003 | CIRCLIP Price: Call Us |
| 19 | 41226-97E00 | BUSH TILT LOCK LEVER Price: Call Us |
| 22 | 45731-96312 | BRACKET SPRING Price: Call Us |
| 23 | 09116-06236 | BOLT (6X16) Price: Call Us |
| 24 | 41230-97E10 | SPRING TILT LOCK Price: Call Us |
