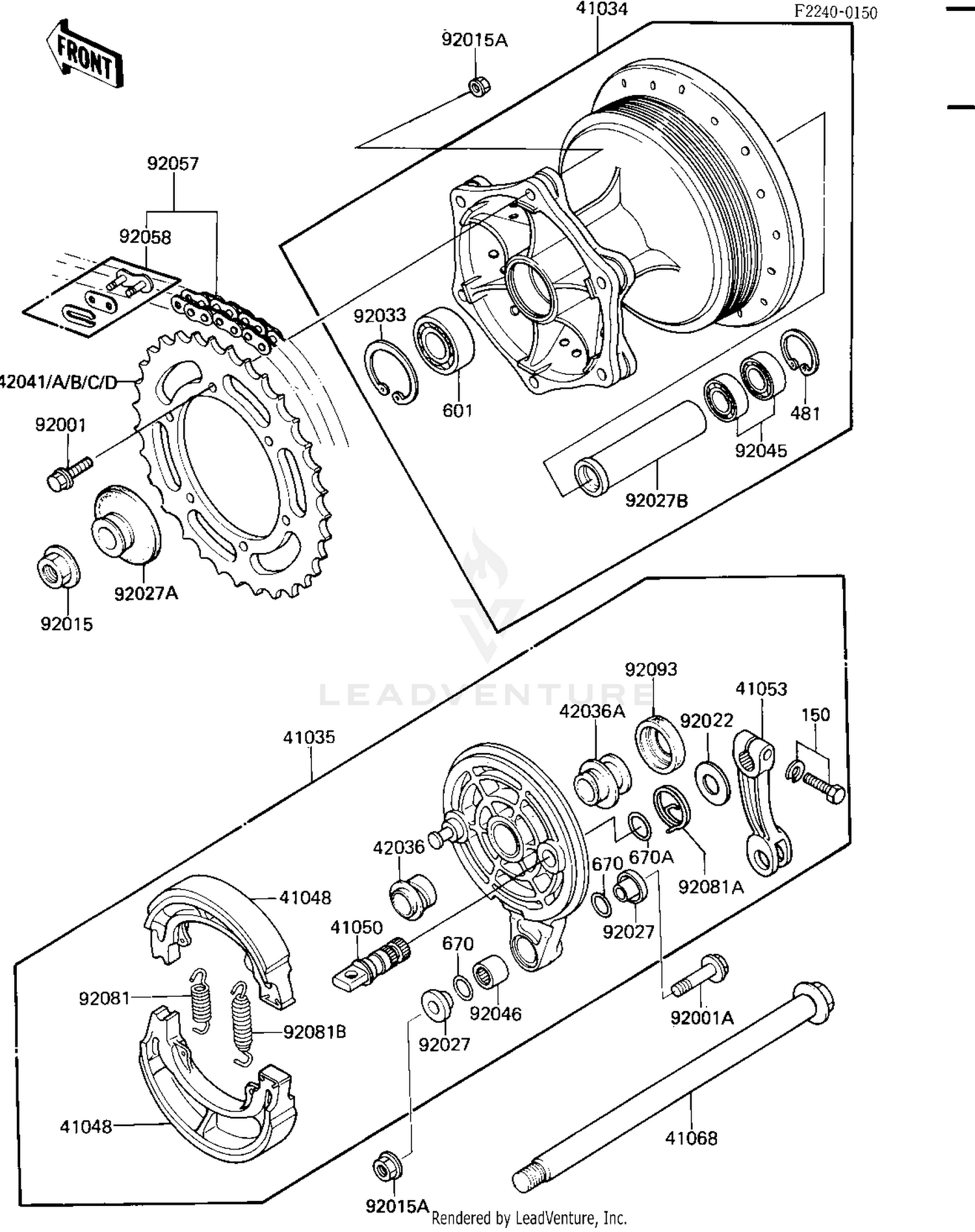

| Ref | Part Number | Description |
|---|
| 150 |
150G0622 |
BOLT-WS Price: $2.58 |
| 481 |
481J3500 |
CIRCLIP-TYPE-C,35MM Price: $1.96 |
| 601 |
601B6203UG |
BEARING-BALL,#6203UG This part replaces 601B6203U. Price: $34.24 |
| 670 |
670B2011 |
O RING,11MM Price: $1.28 |
| 41034 |
41034-1102 |
DRUM-ASSY,RR Price: $421.15 |
| 41035 |
41035-1152 |
PANEL-ASSY-BRAKE,RR Price: $439.11 |
| 41048 |
41048-1076 |
SHOE-BRAKE This part replaces 42019-010. Price: $38.07 |
| 41050 |
41050-1027 |
CAM-BRAKE,RR Price: $49.44 |
| 41053 |
41053-1034 |
LEVER-BRAKE CAM.RR Price: $131.43 |
| 41068 |
41068-1166 |
AXLE,RR,L=283 Price: $148.69 |
| 42036 |
42036-1052 |
SLEEVE Price: $52.46 |
| 42036A |
42036-1106 |
SLEEVE,RH.L=27.5 Price: $94.66 |
| 42041 |
42041-1036 |
REAR SPROCKET 46T Price: $141.45 |
| 92001 |
92001-104 |
BOLT-HEX HEAD,8X28 Price: $13.57 |
| 92001A |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 92001-1578. Price: $8.19 |
| 92015 |
92015-1015 |
NUT,16M/M Price: $24.00 |
| 92015A |
92015-1143 |
NUT,8MM Price: $0.65 |
| 92022 |
92022-1402 |
WASHER,14X30X0.8 Price: $5.06 |
| 92027 |
92027-1040 |
COLLAR,L=11.5 Price: $21.84 |
| 92027A |
92027-1543 |
COLLAR,L=23.5 Price: $44.33 |
| 92027B |
92027-1748 |
COLLAR,L=99 Price: $78.99 |
| 92033 |
92033-1040 |
RING-SNAP,40MM Price: $5.90 |
| 92045 |
601B6003U |
BEARING-BALL,#6003UC3 Price: $22.40 |
| 92046 |
92046-1009 |
BEARING-NEEDLE,HK1216LL Price: $18.45 |
| 92057 |
92057-1073 |
CHAIN,DRIVE,DID520DS Price: $185.65 |
| 92058 |
92058-1013 |
JOINT,DRIVE CHAIN Price: $12.20 |
| 92081 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 92081A |
92081-1520 |
SPRING,BRAKE LEVER Price: $6.41 |
| 92081B |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 92093 |
92093-1004 |
OIL SEAL Price: $8.89 |
