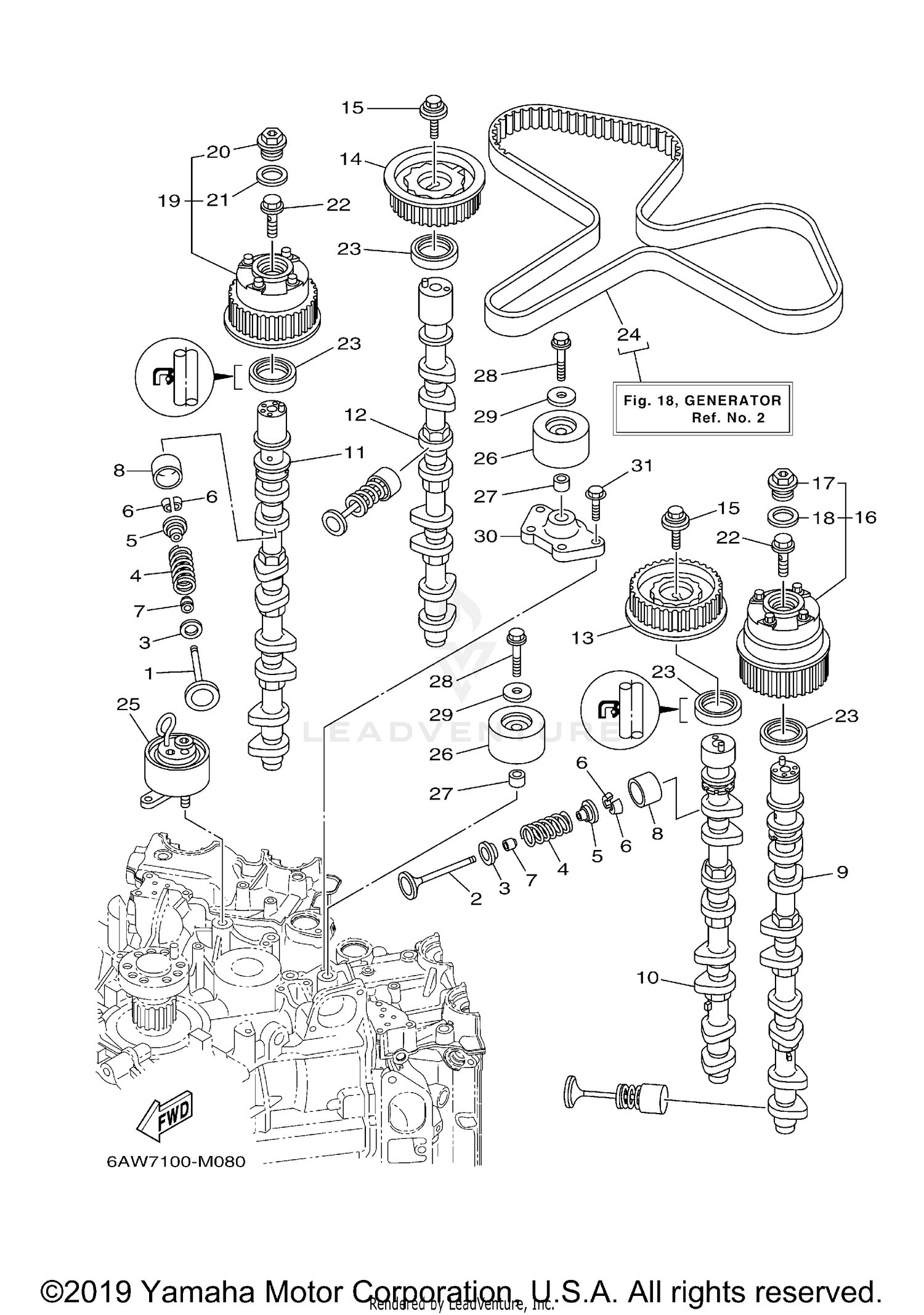

| Ref | Part Number | Description |
|---|
| 1 |
6CB-12111-00-00 |
VALVE, INTAKE Price: $31.10 |
| 2 |
6CB-12121-00-00 |
VALVE, EXHAUST Price: $45.35 |
| 3 |
K0F-A3743-00-00 |
SEAT, VALVE SPRING Price: $4.60 |
| 4 |
6CB-12113-00-00 |
SPRING, VALVE INNER Price: $10.90 |
| 5 |
K0F-A3741-00-00 |
RETAINER, VALVE SPRING Price: $4.60 |
| 6 |
K0F-A3742-00-00 |
LOCK, VALVE SPRING RETAINER Price: $5.55 |
| 7 |
51Y-12119-00-00 |
SEAL, VALVE STEM Price: $7.49 |
| 9 |
6AW-12171-10-00 |
CAMSHAFT 1 Price: $480.35 |
| 10 |
6AW-12181-10-00 |
CAMSHAFT 2 Price: $473.25 |
| 11 |
6AW-12172-10-00 |
CAMSHAFT 3 Price: $505.70 |
| 12 |
6AW-12182-10-00 |
CAMSHAFT 4 Price: $498.20 |
| 13 |
6AW-11537-00-00 |
GEAR, DRIVEN Price: $72.60 |
| 14 |
6AW-11567-00-00 |
GEAR, DRIVEN 2 Price: $102.80 |
| 15 |
90119-10050-00 |
BOLT, WITH WASHER Price: $14.75 |
| 16 |
6AW-12645-00-00 |
PULLEY ASSY 1 Price: $1,036.00 |
| 17 |
6P2-12623-00-00 |
BOLT Price: $59.65 |
| 18 |
6P2-12663-00-00 |
GASKET Price: $23.30 |
| 19 |
6AW-1264A-00-00 |
PULLEY ASSY 2 Price: $1,036.00 |
| 20 |
6P2-12623-00-00 |
BOLT Price: $59.65 |
| 21 |
6P2-12663-00-00 |
GASKET Price: $23.30 |
| 22 |
6P2-12615-00-00 |
BOLT Price: $17.60 |
| 23 |
93102-38008-00 |
OIL SEAL Price: $22.55 |
| 24 |
6AW-W4624-00-00 |
BELT (WITH ROTOR BOLTS) Price: $324.90 |
| 25 |
6P2-11590-05-00 |
TENSIONER ASSY This part replaces 6P2-11590-01-00. Price: $754.55 |
| 26 |
6P2-15512-00-00 |
GEAR, IDLER 1 Price: $186.65 |
| 27 |
99530-14016-00 |
PIN, DOWEL Price: $3.80 |
| 28 |
90119-10M07-00 |
BOLT, WITH WASHER Price: $5.49 |
| 29 |
90201-10M01-00 |
WASHER, PLATE Price: $6.55 |
| 30 |
6AW-15544-00-00 |
STAY 1 Price: $140.30 |
