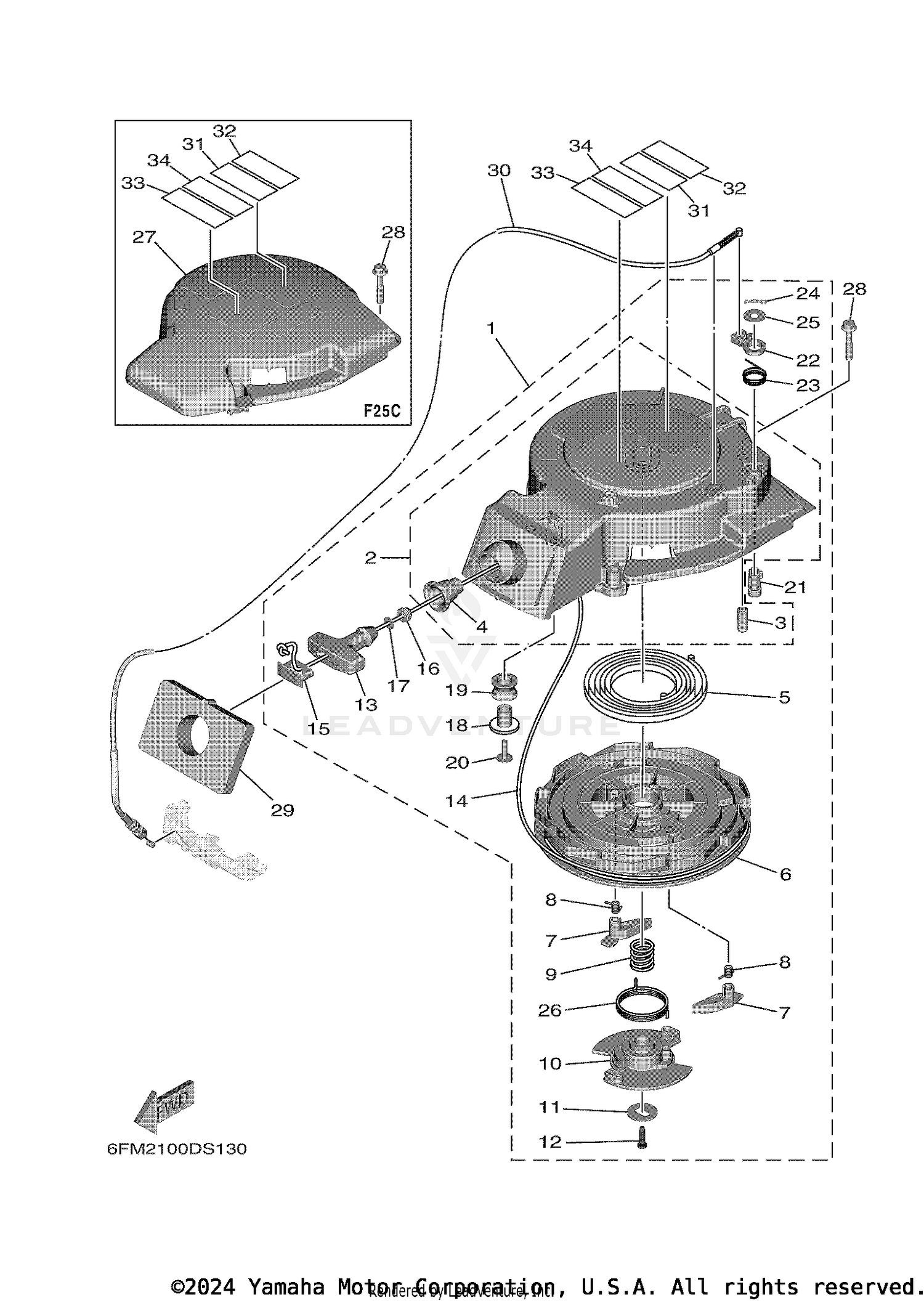

| Ref | Part Number | Description |
|---|
| 1 |
6FM-15710-06-00 |
STARTER ASSY Price: $195.05 |
| 2 |
6FM-15711-10-00 |
CASE, STARTER Price: $80.05 |
| 3 |
6FM-15764-10-00 |
COLLAR 1 Price: $21.95 |
| 4 |
68T-15795-00-00 |
GUIDE, ROPE Price: $15.10 |
| 5 |
6FM-15713-00-00 |
SPRING, STARTER Price: $35.45 |
| 6 |
6FM-15714-01-00 |
DRUM, SHEAVE Price: $37.85 |
| 7 |
6FM-15741-01-00 |
PAWL, DRIVE Price: $5.05 |
| 8 |
6FM-15734-01-00 |
SPRING, RETURN Price: $3.20 |
| 9 |
6FM-15705-01-00 |
SPRING, DRIVE PAWL Price: $8.85 |
| 10 |
6FM-15735-01-00 |
GUIDE, CAM Price: $8.95 |
| 11 |
6FM-15726-00-00 |
WASHER, FLAT Price: $3.20 |
| 12 |
6FM-15793-00-00 |
SCREW Price: $4.65 |
| 13 |
6G1-15755-00-00 |
HANDLE, STARTER Price: $14.30 |
| 15 |
6G1-15779-00-00 |
COVER Price: $3.35 |
| 16 |
6A0-15789-01-00 |
DAMPER Price: $1.65 |
| 18 |
6FM-15753-00-00 |
BUSH Price: $8.95 |
| 19 |
6FM-15752-00-00 |
ROLLER, WIRE Price: $11.80 |
| 20 |
6FM-15768-00-00 |
BOLT Price: $2.30 |
| 21 |
63V-15794-00-00 |
STOPPER Price: $7.70 |
| 22 |
6FM-15748-00-00 |
PLUNGER, STARTER STOP Price: $3.20 |
| 23 |
63V-15734-00-00 |
SPRING, RETURN Price: $5.95 |
| 24 |
6FM-15799-01-00 |
CLIP Price: $4.20 |
| 25 |
63V-15726-00-00 |
WASHER, FLAT Price: $5.95 |
| 26 |
6FM-15767-00-00 |
SPRING Price: $11.05 |
| 27 |
6FM-81337-00-00 |
COVER, FLYWHEEL Price: $58.15 |
| 28 |
90105-06035-00 |
BOLT, FLANGE Price: $2.49 |
| 28 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 29 |
6FM-15762-00-00 |
SEAL, RUBBER 2 Price: $53.10 |
| 30 |
6FM-15770-08-00 |
CABLE COMP., STARTER Price: $42.55 |
| 31 |
6EE-81995-40-00 |
LABEL, WARNING Price: $16.70 |
| 32 |
6EE-81995-50-00 |
LABEL, WARNING Price: $16.70 |
| 33 |
6EE-81994-40-00 |
LABEL, SAFETY Price: $17.10 |
