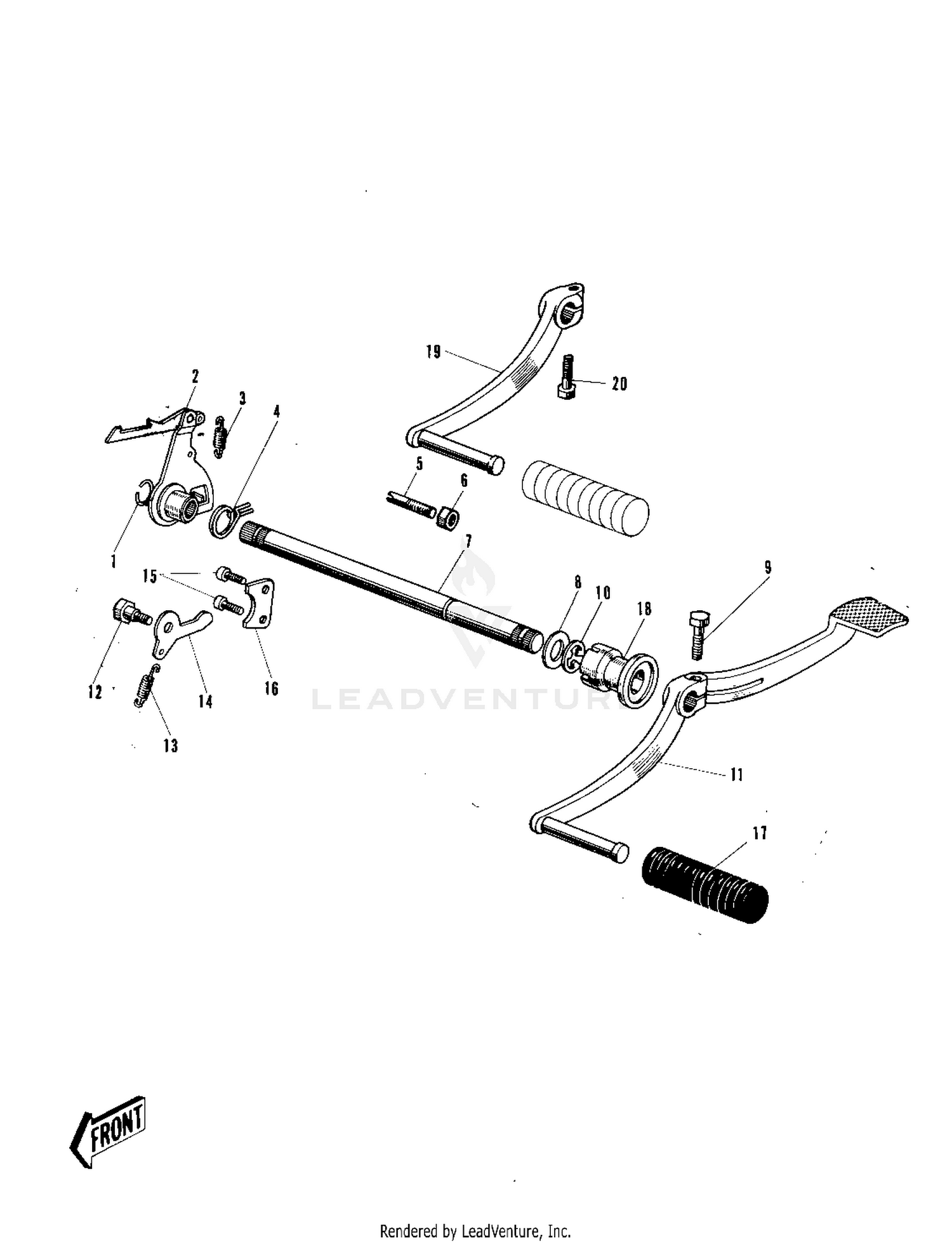

| Ref | Part Number | Description |
|---|
| 1 |
92033-002 |
CIRCLIP 10MM Price: $4.42 |
| 2 |
13161-005 |
LEVER ASSY GEAR CHNG Price: $19.50 |
| 3 |
92144-1720 |
SPRING,CHANGE LEVER Price: $4.74 |
| 4 |
92081-1129 |
SPRING,TENSION Price: $9.43 |
| 5 |
92001-1455 |
BOLT,RETURN SPRING This part replaces 92001-1401. Price: $4.69 |
| 6 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 7 |
13167-004 |
SHAFT GEAR CHNG PEDAL Price: $10.49 |
| 8 |
92022-107 |
WASHER This part replaces 92022-003. Price: $2.70 |
| 9 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 10 |
482J0100 |
CIRCLIP-TYPE-E,10MM Price: $0.73 |
| 11 |
13156-015 |
PEDAL GEAR CHANGE Price: $47.04 |
| 12 |
92150-1450 |
BOLT,CHANGE DRUM LEVE Price: $5.35 |
| 13 |
92081-051 |
SPRING CHNG DRUM LEV Price: $5.29 |
| 14 |
13168-004 |
LEVER GEAR CHNG DRUM Price: $1.74 |
| 15 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 16 |
13169-002 |
PLATE CHNG DRUM PSTN Price: $5.99 |
| 17 |
92161-1532 |
DAMPER,CHANGE PEDAL This part replaces 13157-004. Price: $6.24 |
| 18 |
13171-001 |
DUST SHIELD CHNG PEDL Price: $2.32 |
