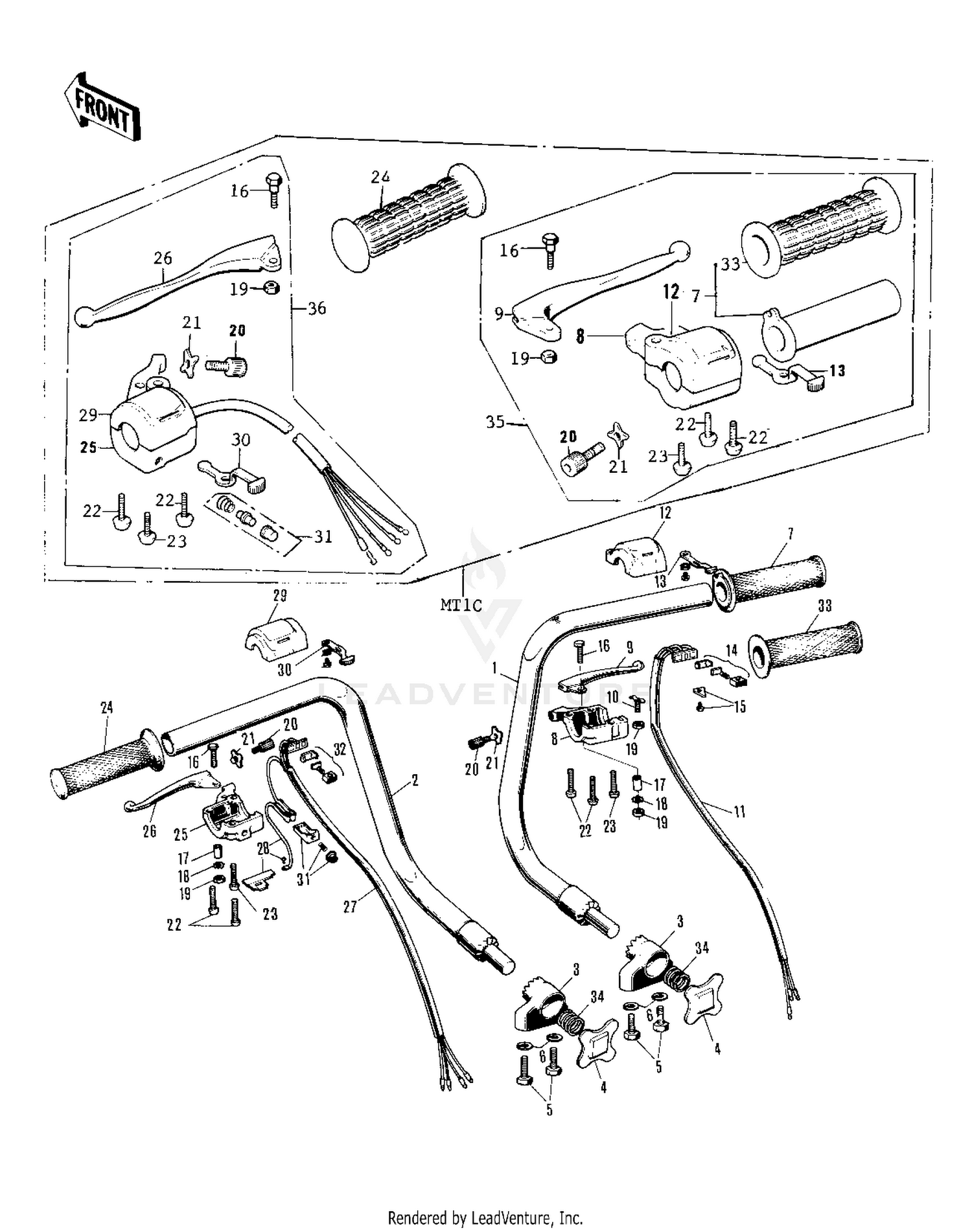

| Ref | Part Number | Description |
|---|
| 1 |
46007-010 |
HANDLEBAR,RH Price: $69.63 |
| 2 |
46007-011 |
HANDLEBAR,LH Price: $63.28 |
| 3 |
46012-009 |
HOLDER-HANDLEBAR Price: $24.99 |
| 4 |
46129-001 |
KNOB-HANDLEBAR HOLDER Price: $10.48 |
| 5 |
113G1018 |
BOLT,HEX HEAD,10X18 This part replaces 113B1018. Price: $5.21 |
| 6 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 7 |
46019-005 |
GRIP ASSY THROTTLE Price: $79.71 |
| 8 |
46022-012 |
CASE R.H SWITCH LOWER Price: $27.75 |
| 9 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 10 |
46024-002 |
SPRING THROTTLE GRIP Price: $0.81 |
| 11 |
46032-010 |
WIRING HARNESS R.H SW Price: $5.86 |
| 12 |
46017-1071 |
GRIP-ASSY,RH Price: $101.50 |
| 13 |
46043-002 |
KNOB ASSY R.H SWITCH Price: $4.20 |
| 14 |
46045-004 |
SLIDE BLOCK AY R.H SW Price: $6.25 |
| 15 |
46085-012 |
HOLDER WIRING HARNESS Price: $1.91 |
| 16 |
92007-020 |
BOLT HEX HEAD 5X20 Price: $6.37 |
| 17 |
46059-011 |
COLLAR LEVER Price: $8.03 |
| 18 |
464EA0500 |
WASHER-TOOTHED This part replaces 464H0500. Price: $1.01 |
| 19 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500A. Price: $0.47 |
| 20 |
46055-010 |
SCREW,CABLE ADJUST Price: $28.86 |
| 21 |
92210-1131 |
NUT,CABLE ADJUST LOCK This part replaces 46056-001. Price: $5.55 |
| 22 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520A. Price: $0.68 |
| 23 |
220AA0518 |
SCREW-PAN-CROS This part replaces 220B0518A. Price: $4.96 |
| 24 |
46075-007 |
RUBBER L.H GRIP Price: $38.70 |
| 25 |
46077-008 |
CASE L.H SWITCH LOWER Price: $29.95 |
| 26 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 27 |
46082-009 |
WIRING HARNESS L.H SW Price: $13.48 |
| 28 |
46085-008 |
HOLDER L.H SWITCH Price: $4.87 |
| 29 |
46086-007 |
CASE L.H SWITCH UPPER Price: $17.82 |
| 29 |
46086-025 |
CASE,L.H UPPER Price: $19.84 |
| 30 |
46088-001 |
KNOB ASSY L.H SWITCH Price: $8.74 |
| 31 |
27010-1009 |
SWITCH ASSY,HORN BUTN This part replaces 46078-003. Price: $9.20 |
| 32 |
46089-002 |
SLIDE BLOCK AY L.H SW Price: $11.26 |
| 33 |
46061-009 |
RUBBER R.H GRIP Price: $7.73 |
| 34 |
92081-078 |
SPRING Price: $2.93 |
