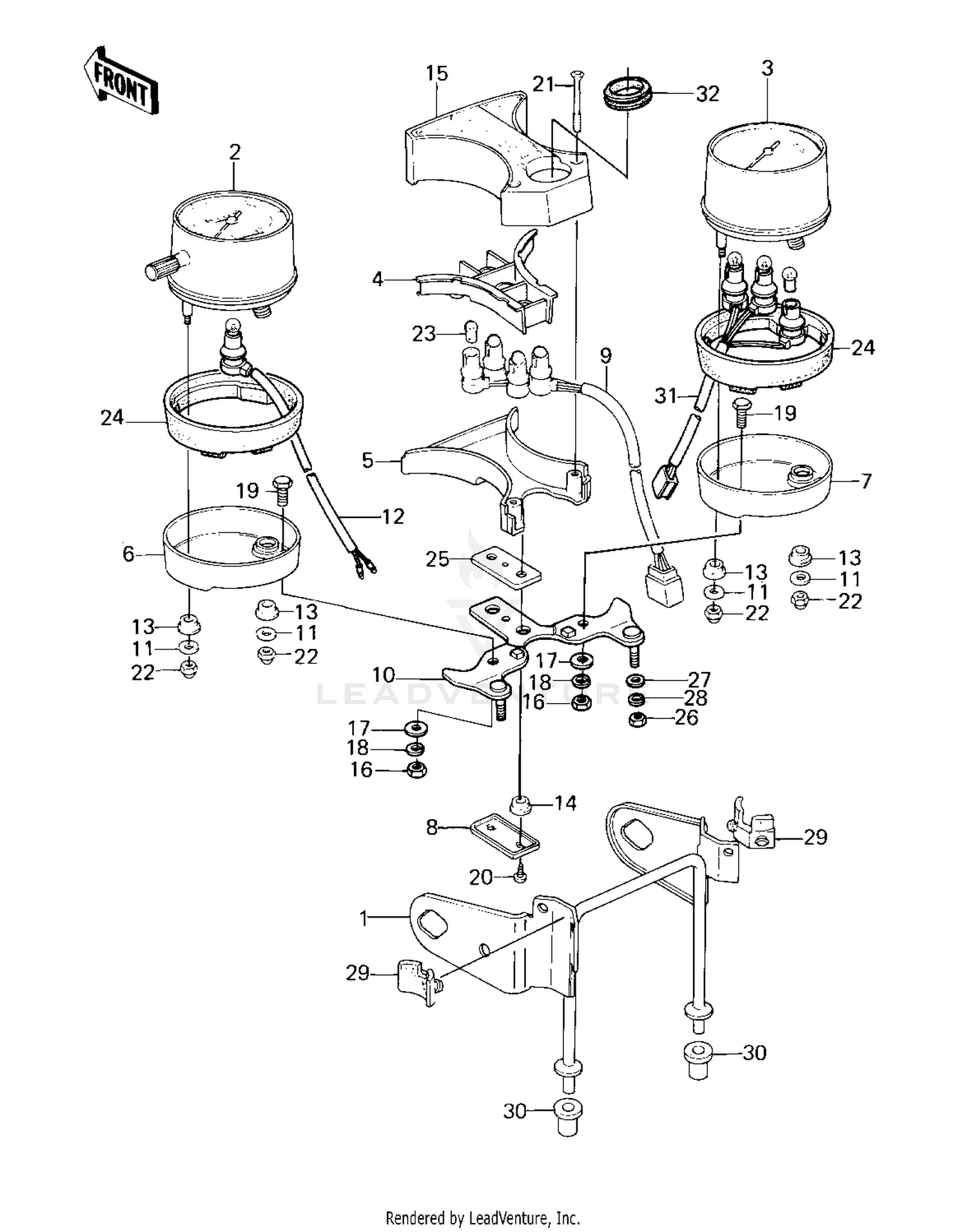

| Ref | Part Number | Description |
|---|
| 1 |
11034-1535 |
BRACKET,HEAD LAMP Price: $115.83 |
| 2 |
25005-1053 |
SPEEDOMETER,KPH (Canada) Price: $417.53 |
| 2 |
25005-1064 |
SPEEDOMETER,MPH Price: $458.60 |
| 3 |
25015-1068 |
TACHOMETER,X1000R/MIN Price: $408.91 |
| 4 |
13169-1133 |
PLATE,SOCKET Price: $6.42 |
| 5 |
14025-1093 |
COVER,PILOT BOX,LOWER Price: $25.66 |
| 6 |
14025-1094 |
COVER,SPEEDOMETER Price: $31.23 |
| 7 |
14025-1095 |
COVER,TACHOMETER Price: $34.94 |
| 8 |
14025-1096 |
COVER,PILOT BOX DAMPR Price: $6.62 |
| 9 |
23008-1031 |
SOCKET ASSY,PILOT BOX Price: $51.24 |
| 10 |
25008-1021 |
BRACKET,METER Price: $61.04 |
| 11 |
92200-2276 |
WASHER,5.2X16X1.2 This part replaces 25009-004. Price: $3.65 |
| 12 |
25010-022 |
SOCKET ASSY Price: $33.00 |
| 13 |
25019-013 |
DAMPER RUBBER-METER Price: $5.72 |
| 14 |
25019-023 |
DAMPER RUBBER,MET FIT Price: $4.29 |
| 15 |
25023-1008 |
COVER,PILOT BOX,UPPER Price: $52.95 |
| 16 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 17 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 18 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 19 |
92001-1154 |
BOLT,METER,8X16 Price: $3.02 |
| 20 |
92009-1040 |
SCREW,TAPPING,4X10 Price: $3.69 |
| 21 |
222C0445 |
SCREW-CSK-RD-CROS,4X4 Price: $3.88 |
| 22 |
322N0500 |
NUT-CAP,5MM Price: $4.06 |
| 23 |
92069-018 |
BULB 12V 3W Price: $4.87 |
| 24 |
92075-1498 |
DAMPER,METER Price: $20.95 |
| 25 |
92075-1136 |
DAMPER,PILOT BOX Price: $6.30 |
| 26 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 27 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 28 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 29 |
92075-1106 |
DAMPER,LAMP BRACKET Price: $3.71 |
| 30 |
92075-1107 |
DAMPER,LAMP BRACKET Price: $5.47 |
| 31 |
23008-1049 |
SOCKET ASSY,TACHOMETR Price: $34.51 |
