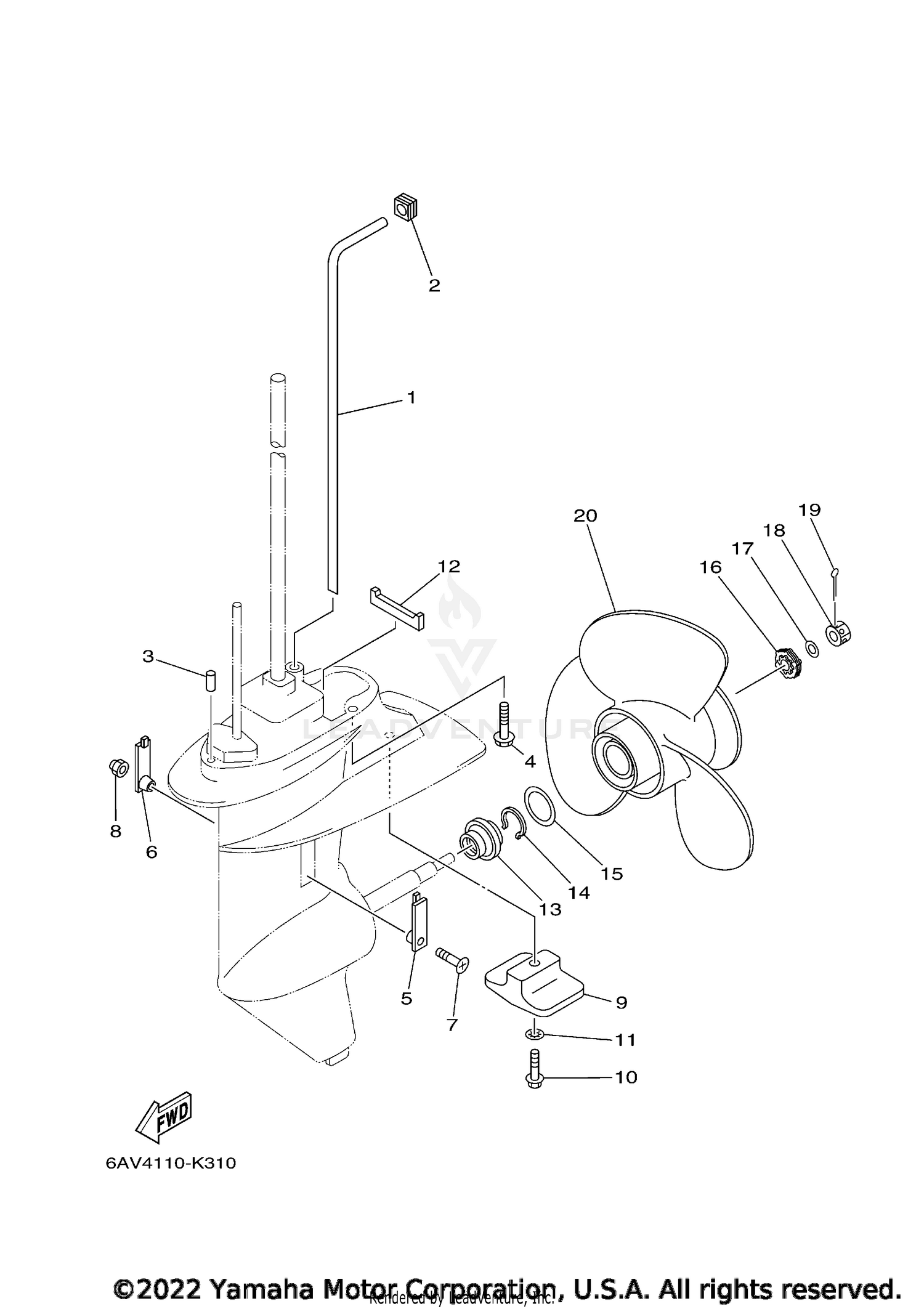

| Ref | Part Number | Description |
|---|
| 2 |
63V-44365-11-00 |
DAMPER, WATER SEAL 1 Price: $4.80 |
| 3 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 5 |
6G1-45214-00-00 |
COVER, WATER INLET 1 Price: $7.90 |
| 6 |
63V-45215-00-00 |
COVER, WATER INLET 2 Price: $9.45 |
| 7 |
90152-05011-00 |
SCREW, COUNTERSUNK Price: $3.35 |
| 8 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 9 |
61N-45251-01-00 |
ANODE Price: $19.45 |
| 10 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 11 |
92990-06300-00 |
WASHER, INTERNAL TOOTH Price: $2.70 |
| 12 |
63V-45375-00-00 |
DAMPER, SEAL Price: $6.60 |
| 13 |
6G8-45987-02-00 |
SPACER 1 Price: $26.85 |
| 14 |
93450-10M04-00 |
CIRCLIP Price: $14.15 |
| 15 |
90201-31MA3-00 |
WASHER, PLATE Price: $4.75 |
| 16 |
6G8-45997-00-00 |
SPACER 2 Price: $31.50 |
| 17 |
90201-10M02-00 |
WASHER, PLATE Price: $4.60 |
| 18 |
90171-10M07-00 |
NUT, CASTLE Price: $12.45 |
| 19 |
91490-30030-00 |
PIN. COTTER This part replaces 91490-30025-00. Price: $8.49 |
