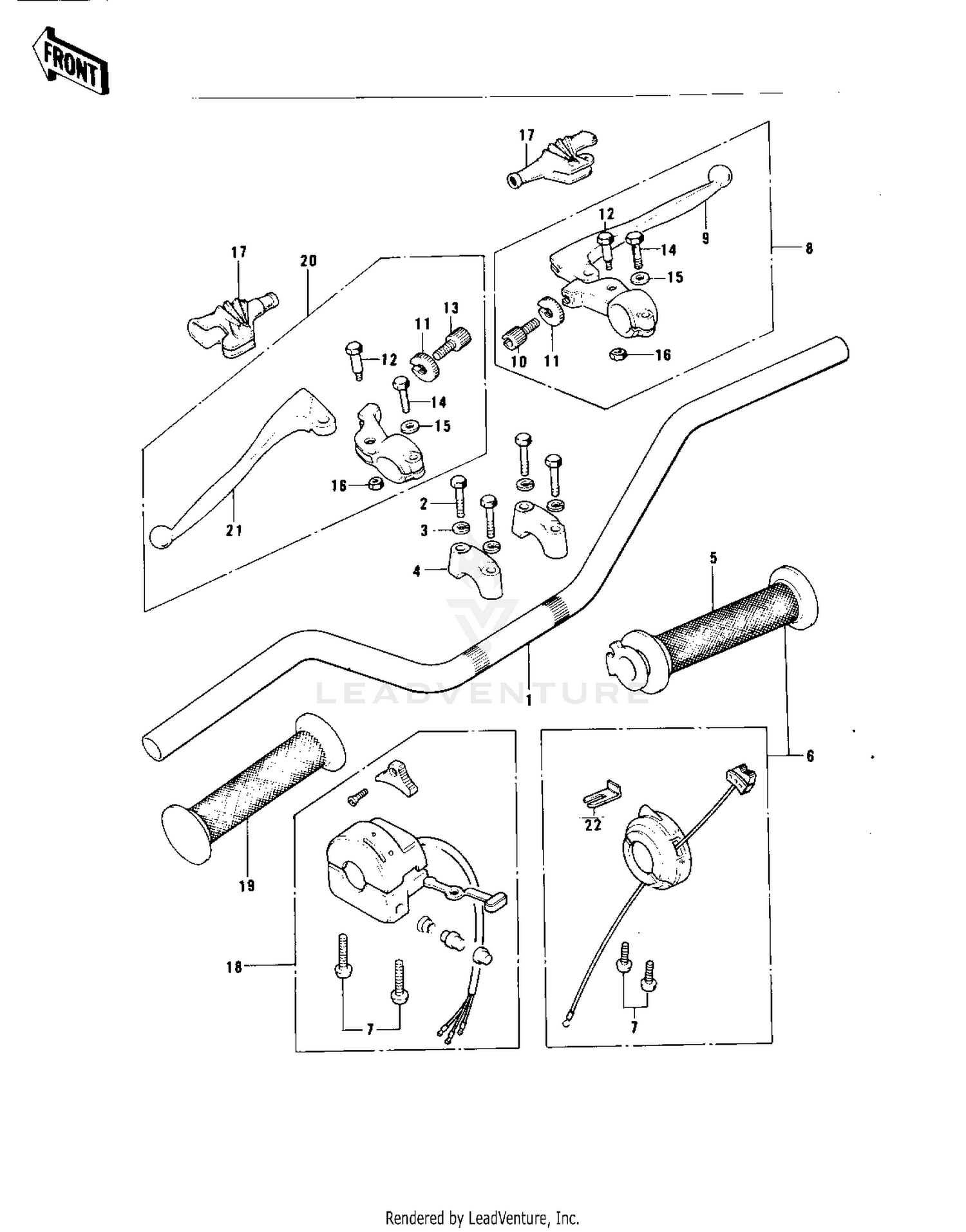

| Ref | Part Number | Description |
|---|
| 1 |
46004-031 |
HANDLEBAR Price: $76.52 |
| 2 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 3 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 4 |
46012-1252 |
HOLDER-HANDLE,UPP This part replaces 46012-004. Price: $13.44 |
| 5 |
46019-036 |
GRIP ASSY,THROTTLE Price: $35.54 |
| 6 |
46018-042 |
CASE ASSY,R.H Price: $151.81 |
| 7 |
220AA0525 |
SCREW-PAN-CROS,5X25 This part replaces 220B0525. Price: $3.67 |
| 8 |
46021-030 |
LEVER ASSY,FRNT BRAKE Price: $28.75 |
| 9 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 11 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 12 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 14 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 15 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 16 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
| 17 |
49006-1017 |
BOOT,LEVER HOLDER Price: $18.72 |
| 18 |
46091-046 |
CASE ASSY,L.H Price: $116.76 |
| 19 |
46075-026 |
RUBBER,L.H GRIP Price: $14.55 |
| 20 |
46076-046 |
LEVER ASSY,CLUTCH Price: $27.97 |
| 21 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
