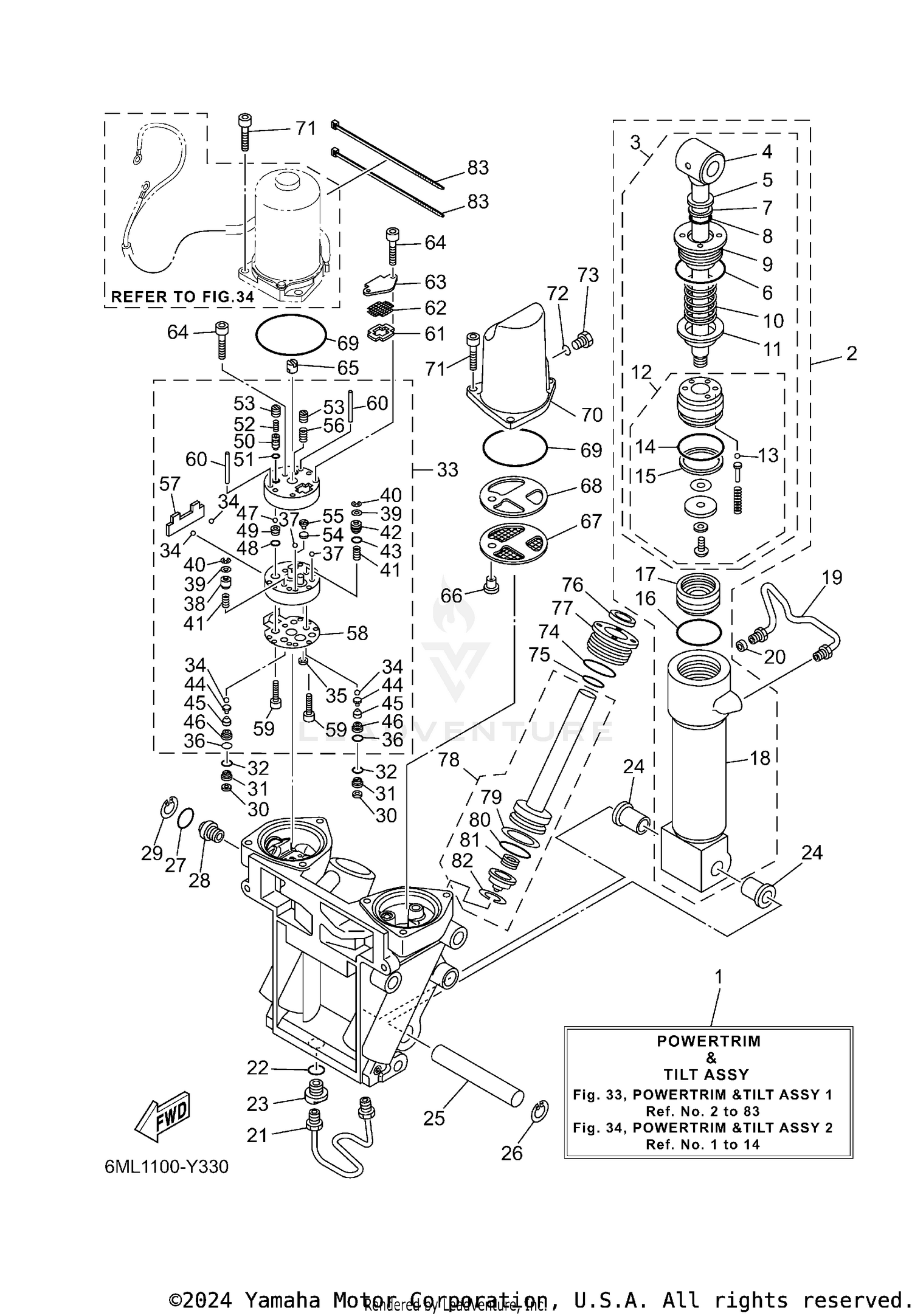

| Ref | Part Number | Description |
|---|
| 1 |
6ML-W4380-00-CJ |
POWER TRIM & TILT ASSY Price: $4,761.45 |
| 2 |
6KA-43840-00-00 |
POWER TILT ASSY Price: $682.05 |
| 3 |
6KA-43810-00-00 |
TILT PISTON SUB ASSY Price: $516.95 |
| 4 |
6KA-43801-00-00 |
ROD Price: $167.45 |
| 5 |
93106-19001-00 |
OIL SEAL Price: $10.20 |
| 6 |
63P-43861-20-00 |
O-RING Price: $2.40 |
| 7 |
6H1-43872-10-00 |
RING, BACK UP This part replaces 6H1-43872-00-00. Price: $6.40 |
| 8 |
61A-4389H-01-00 |
O-RING Price: $4.40 |
| 9 |
61A-43811-00-00 |
SCREW, CYLINDER END Price: $98.40 |
| 10 |
69J-4384H-00-00 |
SPRING Price: $6.25 |
| 11 |
69J-4382E-00-00 |
ADAPTOR 2 Price: $8.60 |
| 12 |
6CE-4380P-00-00 |
PISTON SUB ASSY Price: $233.70 |
| 13 |
93505-32038-00 |
BALL Price: $0.50 |
| 14 |
6H1-43861-10-00 |
O-RING This part replaces 61A-43861-00-00. Price: $7.60 |
| 15 |
65W-43871-00-00 |
RING, BACK UP This part replaces 61A-43871-00-00. Price: $14.15 |
| 16 |
6H1-43861-10-00 |
O-RING This part replaces 61A-43861-00-00. Price: $7.60 |
| 17 |
6H1-43814-11-00 |
PISTON, FREE Price: $35.90 |
| 18 |
61A-43813-02-00 |
CYLINDER, TILT Price: $409.35 |
| 19 |
69J-43835-10-00 |
PIPE Price: $47.30 |
| 20 |
69J-4388J-00-00 |
PLUG 2 Price: $24.45 |
| 21 |
69J-43833-02-00 |
PIPE Price: $47.30 |
| 22 |
93210-16314-00 |
O-RING This part replaces 93210-17239-00. Price: $4.65 |
| 23 |
69J-4388E-01-00 |
BOLT ,SCREW Price: $42.25 |
| 24 |
90386-18M14-00 |
BUSH Price: $10.40 |
| 25 |
6ML-43818-00-00 |
PIN, LOWER SHOCK MOUNT Price: $149.90 |
| 26 |
61A-43876-01-00 |
RING, SNAP Price: $3.05 |
| 27 |
6D8-43863-00-00 |
O-RING Price: $2.85 |
| 28 |
69J-43845-00-00 |
SCREW, MANUAL RELEASE Price: $31.10 |
| 29 |
6H1-43875-00-00 |
RING, SNAP Price: $7.40 |
| 30 |
69J-4381C-00-00 |
FILTER 3 Price: $9.10 |
| 31 |
69J-43899-01-00 |
PLATE STOPPER Price: $49.40 |
| 32 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 33 |
6ML-43830-00-00 |
GEAR PUMP ASSY Price: $1,041.20 |
| 34 |
93505-32038-00 |
BALL Price: $0.50 |
| 35 |
69J-4381C-00-00 |
FILTER 3 Price: $9.10 |
| 36 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 37 |
93503-16003-00 |
BALL Price: $2.90 |
| 38 |
6CJ-4384M-00-00 |
PISTON, SHUTTLE 2 Price: $23.55 |
| 39 |
69A-4384F-00-00 |
SEAL, MAIN VALVE Price: $3.55 |
| 40 |
99080-03600-00 |
CIRCLIP This part replaces 99002-03600-00. Price: $3.55 |
| 41 |
69J-43894-00-00 |
SPRING, SHUTTLE RETURN Price: $4.15 |
| 42 |
6CJ-43841-00-00 |
PISTON, SHUTTLE Price: $13.75 |
| 43 |
6H1-43883-00-00 |
O-RING Price: $3.55 |
| 44 |
60V-4386A-00-00 |
PIN, ABSORBER VALVE Price: $2.85 |
| 45 |
69J-43853-00-00 |
SPRING, MAIN VALVE Price: $3.55 |
| 46 |
6CJ-43893-00-00 |
WASHER Price: $4.90 |
| 47 |
93501-08001-00 |
BALL Price: $1.15 |
| 48 |
93210-08003-00 |
O-RING This part replaces 93210-08391-00. Price: $10.49 |
| 49 |
69J-43851-00-00 |
SEAT, RELIEF VALVE Price: $43.00 |
| 50 |
63P-43844-20-00 |
PIN, VALVE SUPPORT Price: $5.75 |
| 51 |
93210-06519-00 |
O-RING This part replaces 93210-064A5-00. Price: $4.40 |
| 52 |
69J-43855-00-00 |
SPRING, UP RELIEF Price: $4.90 |
| 53 |
6CJ-43843-00-00 |
SCREW, VALVE LOCK Price: $7.30 |
| 54 |
6H1-4384G-11-00 |
SEAL, RELIEF VALVE Price: $11.40 |
| 55 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 56 |
6H1-43856-10-00 |
SPRING, DOWN RELIEF Price: $6.40 |
| 57 |
69J-43854-00-00 |
SPRING, MANUAL RELEASE Price: $14.35 |
| 58 |
69J-4384G-00-00 |
SEAL, RELIEF VALVE Price: $12.00 |
| 59 |
91318-05025-00 |
BOLT Price: $2.85 |
| 60 |
93604-35236-00 |
PIN, DOWEL Price: $2.85 |
| 61 |
69J-43871-00-00 |
RING, BACK UP Price: $6.60 |
| 62 |
69J-43816-00-00 |
FILTER 1 Price: $18.75 |
| 63 |
69J-4381J-00-00 |
PLATE Price: $7.80 |
| 64 |
91318-05040-00 |
BOLT Price: $3.55 |
| 65 |
69J-43831-00-00 |
CONNECTOR, SHAFT Price: $43.65 |
| 66 |
69J-4388H-00-00 |
PLUG Price: $12.35 |
| 67 |
69J-43817-00-00 |
FILTER 2 Price: $47.95 |
| 68 |
69J-4388F-00-00 |
SPACER Price: $17.35 |
| 69 |
93210-66001-00 |
O-RING Price: $4.50 |
| 70 |
6KA-43828-00-00 |
BODY, RESERVOIR Price: $183.95 |
| 71 |
69J-43888-00-00 |
BOLT, SOCKET Price: $8.15 |
| 72 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 73 |
6H1-43829-00-00 |
PLUG, RESERVOIR Price: $14.75 |
| 74 |
6H1-43861-10-00 |
O-RING This part replaces 61A-43861-00-00. Price: $7.60 |
| 75 |
6D8-43863-00-00 |
O-RING Price: $2.85 |
| 76 |
6KN-43812-00-00 |
SEAL, DUST This part replaces 63P-43812-20-00. Price: $44.20 |
| 77 |
6ML-43821-00-00 |
SCREW, TRIM CYLINDER END Price: $173.10 |
| 78 |
69J-43820-01-00 |
TRIM PISTON SUB ASSY Price: $212.70 |
| 79 |
61A-43874-00-00 |
RING, BACK UP Price: $11.40 |
| 80 |
61A-43864-00-00 |
O-RING Price: $3.55 |
| 81 |
61A-4384H-10-00 |
SPRING Price: $6.75 |
| 82 |
61A-43875-10-00 |
RING, SNAP Price: $8.60 |
