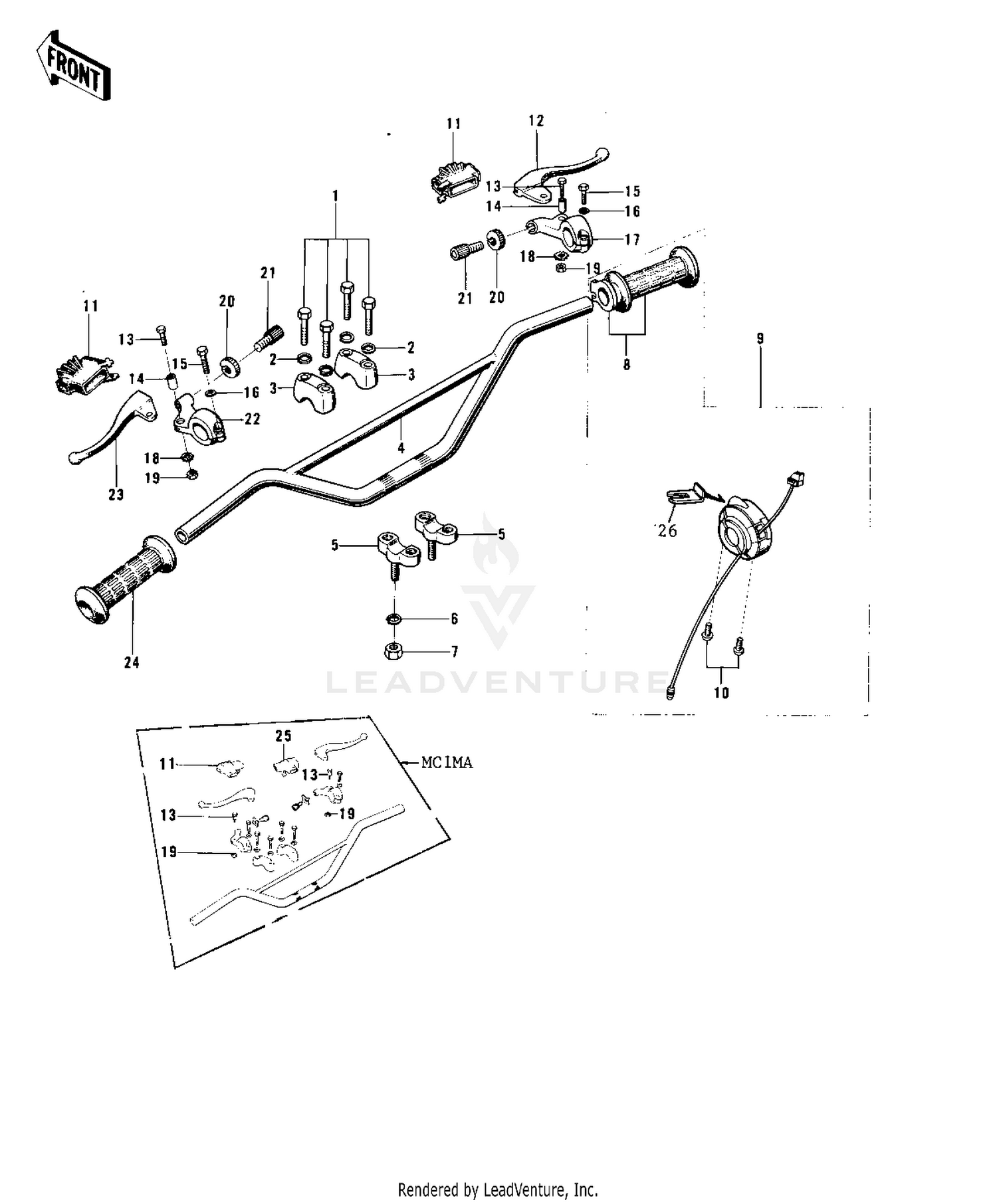

| Ref | Part Number | Description |
|---|
| 1 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 2 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 3 |
46012-1252 |
HOLDER-HANDLE,UPP This part replaces 46012-004. Price: $13.44 |
| 4 |
46004-024 |
HANDLEBAR Price: $66.13 |
| 5 |
46012-002-80 |
HOLDER,HANDLEBAR,BUFF Price: $29.86 |
| 6 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 7 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 8 |
46019-020 |
GRIP ASSY-THROTTLE Price: $13.51 |
| 9 |
46018-036 |
CASE ASSY,R.H Price: $157.45 |
| 10 |
220AA0525 |
SCREW-PAN-CROS,5X25 This part replaces 220B0525. Price: $3.67 |
| 11 |
46071-002 |
DUST COVER Price: $15.16 |
| 12 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 13 |
92007-020 |
BOLT HEX HEAD 5X20 Price: $6.37 |
| 15 |
110N0622 |
BOLT, HEX HEAD 6X22 Price: $4.56 |
| 16 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 17 |
46060-006 |
HOLDER-FR BRAKE LEVER Price: $34.55 |
| 19 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 20 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 21 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 22 |
46094-010 |
HOLDER,CLUTCH LEVER Price: $42.97 |
| 23 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 24 |
46075-018 |
RUBBER-L.H.GRIP Price: $15.43 |
