| Ref | Part Number | Description |
|---|
| 1 |
509000595 |
Engine Outlet Hose Price: $16.99 |
| 2 |
509000443 |
Aba Gear Clamp, 26-38 MM Price: $12.49 |
| 3 |
509000443 |
Aba Gear Clamp, 26-38 MM Price: $12.49 |
| 4 |
509000523 |
Bypass Hose Price: $63.99 |
| 5 |
509000443 |
Aba Gear Clamp, 26-38 MM Price: $12.49 |
| 6 |
219700362 |
ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership Price: $8.99 |
| 7 |
509000499 |
Thermostat Housing Price: $43.99 |
| 8 |
509000737 |
Hose Radiator Price: $164.99 |
| 9 |
Not |
Available As Spare Part - Switch |
| 11 |
509000588 |
Air Radiator Hose Price: $63.99 |
| 12 |
509000589 |
Return Radiator Hose Price: $43.99 |
| 13 |
509000443 |
Aba Gear Clamp, 26-38 MM Price: $12.49 |
| 14 |
509000372 |
T-Fitting Price: $10.99 |
| 15 |
509001067 |
Engine Inlet Hose This part replaces 509000675. Price: $16.99 |
| 16 |
509000736 |
Filling Hose Price: $36.99 |
| 17 |
509000442 |
Oeticker Gear Clamp, 25.6-706R Price: $5.29 |
| 18 |
219704360 |
Hose 6 Mm 15000Mm Long Price: $134.99 |
| 19 |
293650170 |
Tridon Gear Clamp Price: $1.99 |
| 20 |
293650047 |
Crimp Clamp, 15.3-706R Price: $3.39 |
| 21 |
509000368 |
Coolant Tank Price: $94.99 |
| 22 |
509000852 |
Reservoir support This part replaces 509000654. Price: $69.99 |
| 23 |
509000609 |
Support Price: $24.49 |
| 24 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. Price: $1.69 |
| 25 |
36005 |
Rivet This part replaces M36005. Price: $2.19 |
| 26 |
509000609 |
Support Price: $24.49 |
| 27 |
517303439 |
Knob Price: $4.69 |
| 28 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. Price: $1.69 |
| 30 |
509000599 |
Hose 5.2 mm Price: Call Us |
| 31 |
509000187 |
Pressure Cap Price: $31.99 |
| 32 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 34 |
509000837 |
Fan Price: $204.99 |
| 35 |
293650099 |
Crimp Clamp Price: $4.39 |
| 36 |
508000820 |
Velcro Strip This part replaces 508000532. Price: $8.79 |
| 37 |
508000572 |
Bumper Price: $7.69 |
| 38 |
509000756 |
Radiator Price: $184.99 |
| 39 |
509001173 |
Cooling Fan Shroud This part replaces 509000739. Price: $26.99 |
| 40 |
509000615 |
Foam Price: $27.99 |
| 41 |
509001174 |
Deflector This part replaces 509000558. Price: $21.99 |
| 42 |
570044700 |
Rubber Bumper Price: $13.49 |
| 43 |
710000992 |
Clip Price: $4.39 |
| 44 |
207661244 |
Hex. Flange Screw M6 X 12 Price: $2.19 |
| 45 |
509000614 |
Screw plate Price: $24.99 |
| 46 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 47 |
509000792 |
Formed Hose Price: $57.99 |
| 48 |
293650053 |
Crimp Clamp Price: $3.19 |
| 50 |
293650047 |
Crimp Clamp, 15.3-706R Price: $3.39 |
| 51 |
509001070 |
Hose This part replaces 509000776. Price: $13.49 |
| 52 |
293710140 |
Y-Fitting Price: $8.29 |

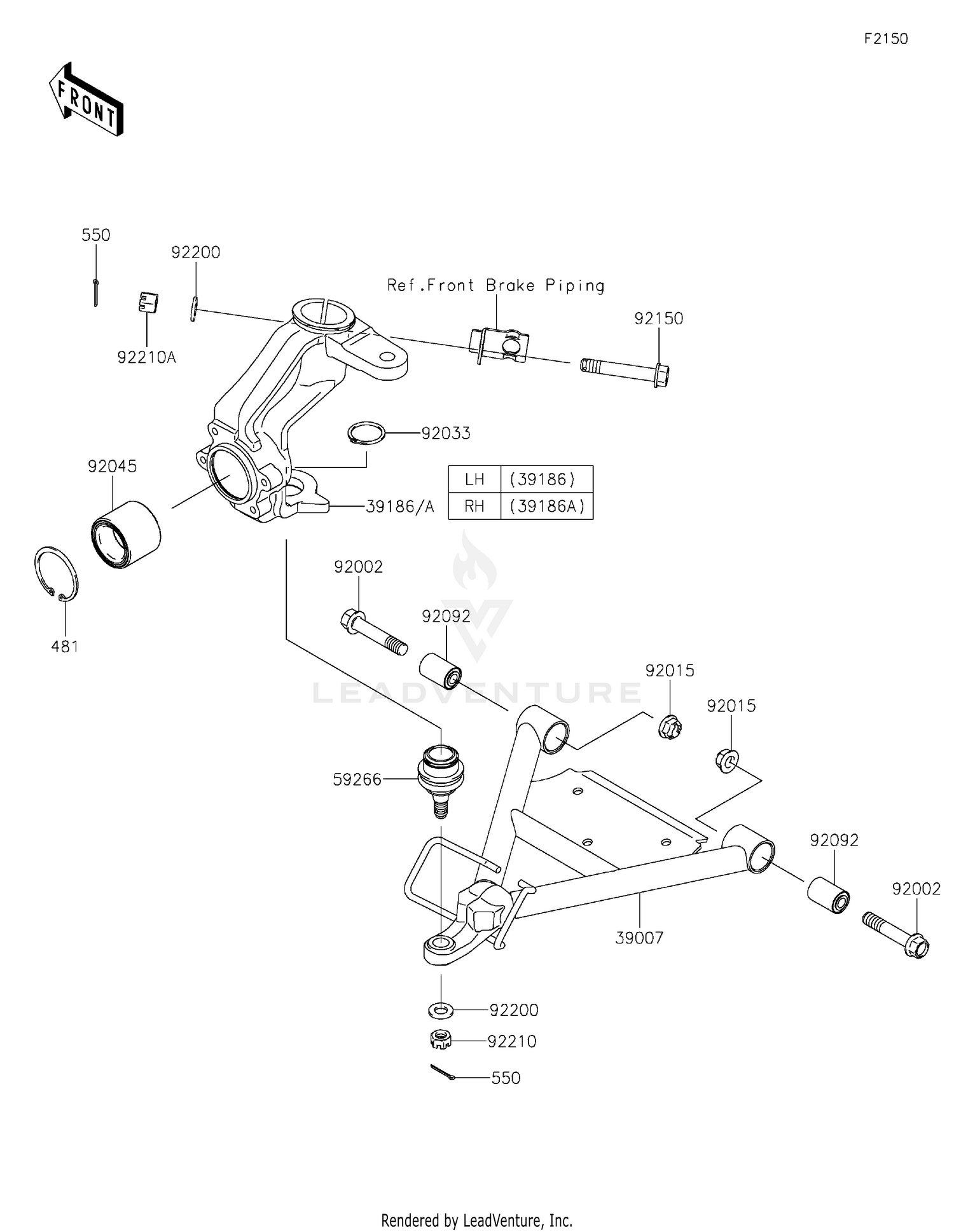

| 481 |
481J5200 |
CIRCLIP-TYPE-C,52MM Price: $4.96 |
| 39007 |
39007-0397 |
ARM-SUSP Price: $243.54 |
| 39186 |
39186-0314 |
KNUCKLE,LH Price: $159.14 |
| 39186A |
39186-0315 |
KNUCKLE,RH Price: $159.14 |
| 59266 |
59266-1080 |
JOINT-BALL Price: $96.44 |
| 92002 |
92150-1258 |
BOLT,FLANGED,12X63 This part replaces 92002-1757. Price: $12.71 |
| 92015 |
92015-1706 |
NUT,12MM Price: $7.45 |
| 92033 |
92033-1262 |
RING-SNAP,C-TYPE,32MM Price: $6.41 |
| 92045 |
92045-0102 |
BEARING-BALL,DAC2552W This part replaces 92045-0028. Price: $75.96 |
| 92092 |
92092-005 |
BUSHING-RUBBER Price: $14.10 |
| 92150 |
92150-1356 |
BOLT,FLANGED,12X72 Price: $13.75 |
| 92200 |
92200-1004 |
WASHER,12.3X23X2.3 Price: $4.69 |
| 92210 |
92210-0395 |
NUT,CASTLE,12MM Price: $3.86 |
| 92210A |
92210-7501 |
NUT,12MM Price: $3.73 |
