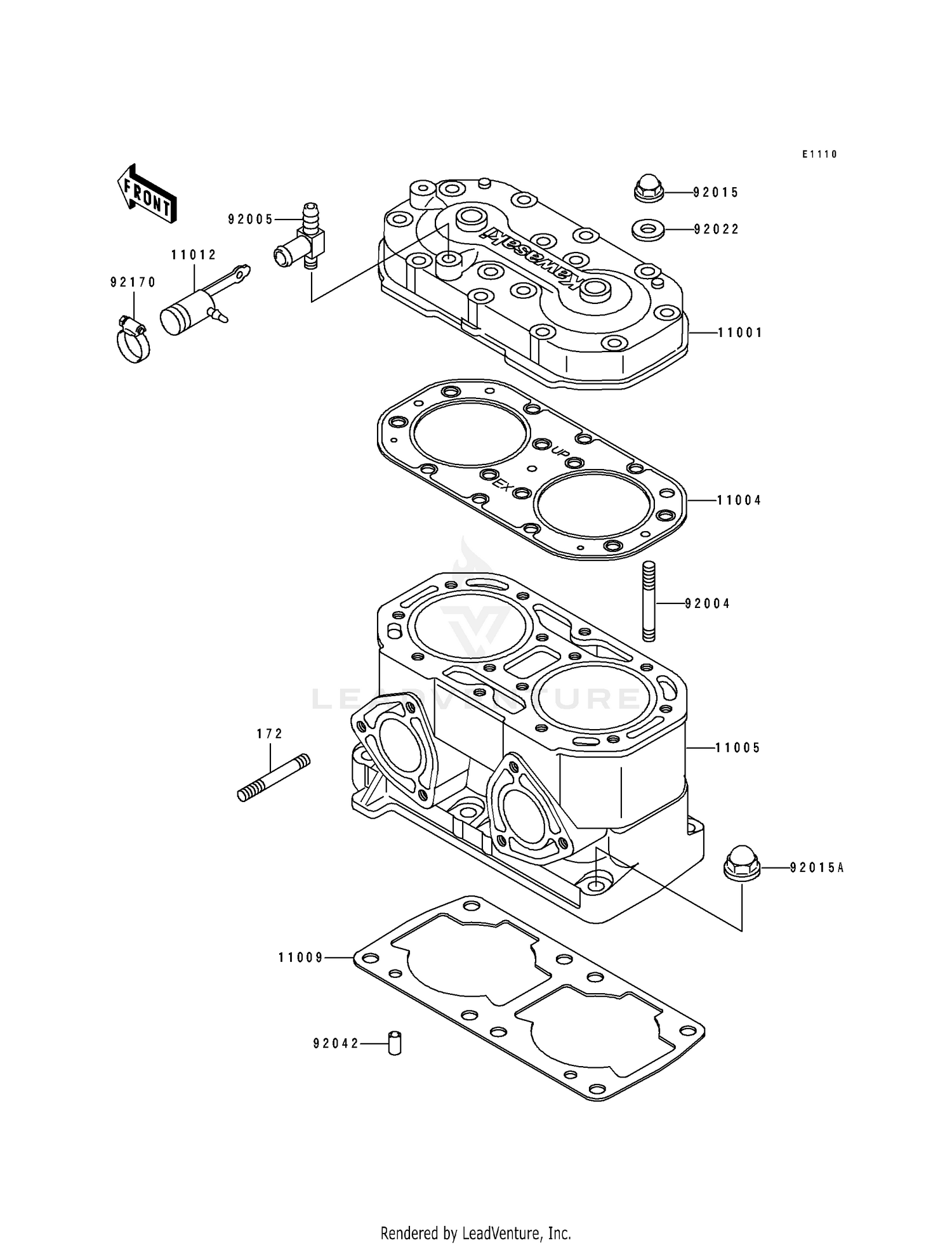

CYLINDER HEAD/CYLINDER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 11001 | 11001-3716 | HEAD-CYLINDER Price: $346.95 |
| 11004 | 11004-3710 | GASKET-HEAD Price: $55.57 |
| 11005 | 11005-3715 | CYLINDER-ENGINE Price: $1,000.02 |
| 11009 | 11009-3775 | GASKET,CYLINDER BASE Price: $14.12 |
| 11012 | 11012-3757 | CAP Price: $10.97 |
| 92004 | 92004-3715 | STUD,8X43 Price: $10.46 |
| 92005 | 92005-3711 | FITTING Price: $56.19 |
| 92015 | 92015-1371 | NUT,CAP,8MM Price: $5.00 |
| 92015A | 92015-1649 | NUT,10MM Price: $5.52 |
| 92022 | 92022-1964 | WASHER,8.2X18X1.5 Price: $4.18 |
| 92042 | 92042-007 | PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 92170 | 92173-1401 | CLAMP This part replaces 92170-3720. Price: $13.67 |
