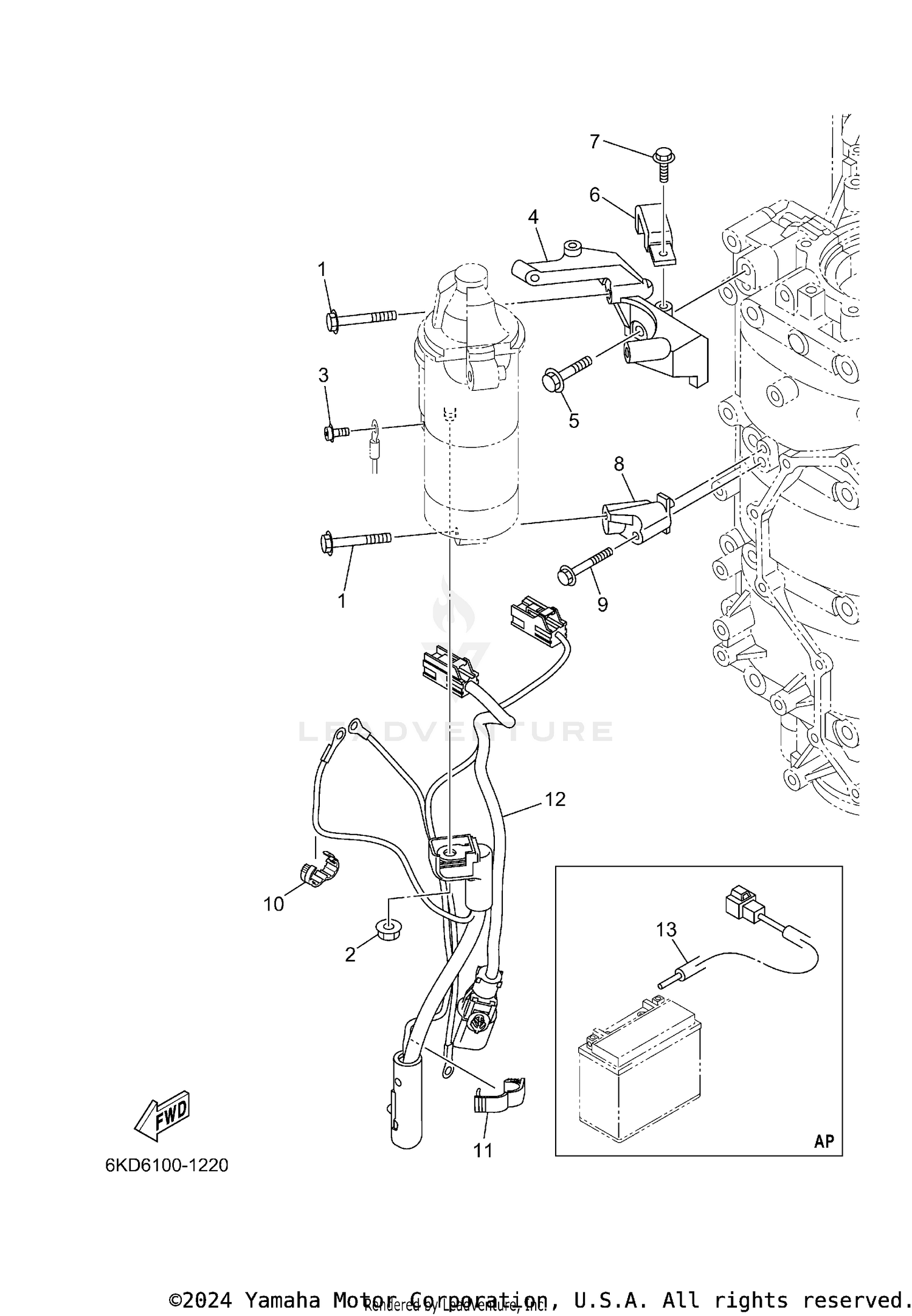

ELECTRICAL 5
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 97513-08545-00 | BOLT, WITH WASHER Price: $2.99 |
| 2 | 90179-08003-00 | NUT Price: $3.20 |
| 3 | 97985-04308-00 | SCREW, WITH WASHER Price: $1.55 |
| 4 | 6CB-81822-02-00 | BRACKET, STARTING MOTOR Price: $128.50 |
| 5 | 90105-08M87-00 | BOLT, FLANGE Price: $1.75 |
| 6 | 6CB-81443-00-00 | CLAMP, LEAD 1 Price: $11.55 |
| 7 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 8 | 6CB-81823-B0-00 | STAY, STARTING MOTOR Price: Call Us |
| 9 | 90105-06151-00 | BOLT, FLANGE Price: $4.60 |
| 10 | 90464-13227-00 | CLAMP Price: $8.49 |
| 11 | 90464-18004-00 | CLAMP Price: $4.40 |
| 12 | 6KA-8259M-02-00 | WIRE HARNESS ASSY 2 Price: $244.60 |
