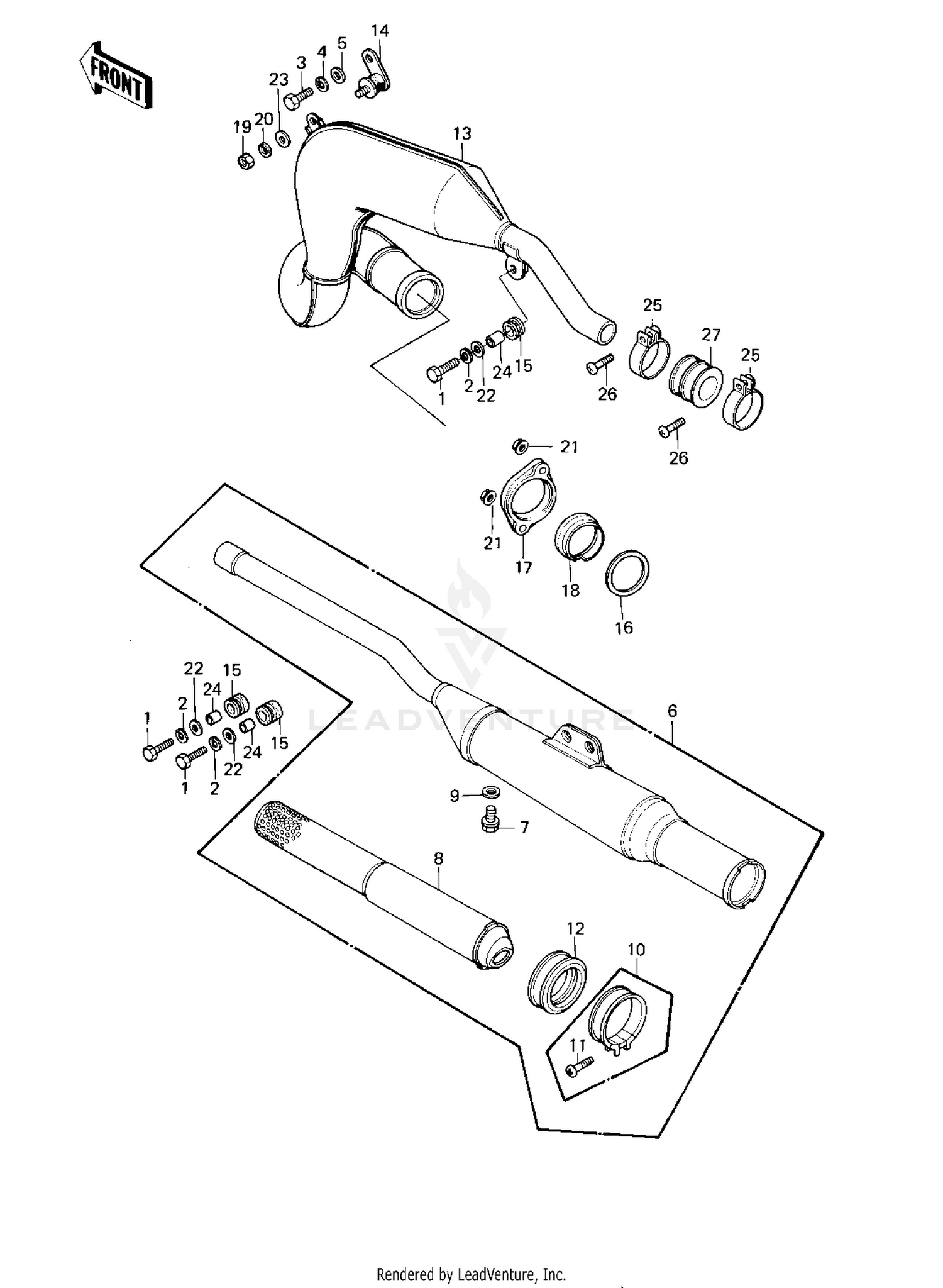

| Ref | Part Number | Description |
|---|
| 1 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 2 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 3 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 4 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 5 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 6 |
18001-1153 |
MUFFLER ASSY Price: $388.67 |
| 7 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 8 |
49099-1006 |
BAFFLE PIPE,MUFFLER Price: $105.58 |
| 9 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 10 |
92171-1563 |
CLAMP This part replaces 92037-171. Price: $12.95 |
| 11 |
220AA0535 |
SCREW-PAN-CROS This part replaces 220B0535. Price: $3.70 |
| 12 |
92093-1013 |
DUST SHIELD,MUFFLER Price: $12.70 |
| 13 |
18006-1050 |
BODY,MUFFLER Price: $356.97 |
| 14 |
18061-060 |
BRACKET,MUFFLER Price: $28.49 |
| 15 |
18063-005 |
DAMPER RUBBER-MUFFLER Price: $5.21 |
| 16 |
11060-1496 |
GASKET,EXHAUST PIPE This part replaces 18067-008. Price: $18.05 |
| 17 |
18069-049 |
HOLDER,EXHAUST Price: $42.68 |
| 18 |
18070-007 |
INSERT,EXHAUST HOLDER Price: $11.67 |
| 19 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 317B0800. Price: $0.68 |
| 20 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 21 |
92015-1014 |
NUT,FLANGED,8MM Price: $0.65 |
| 22 |
92022-1564 |
WASHER,8X26X2.3 Price: $4.31 |
| 23 |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 24 |
92027-102 |
COLLAR,8.8X12X10.7 Price: $1.08 |
| 25 |
92037-1242 |
CLAMP,CARBURETOR HOLD Price: $5.34 |
| 26 |
92009-1357 |
SCREW,6X35 This part replaces 220C0635. Price: $5.38 |
