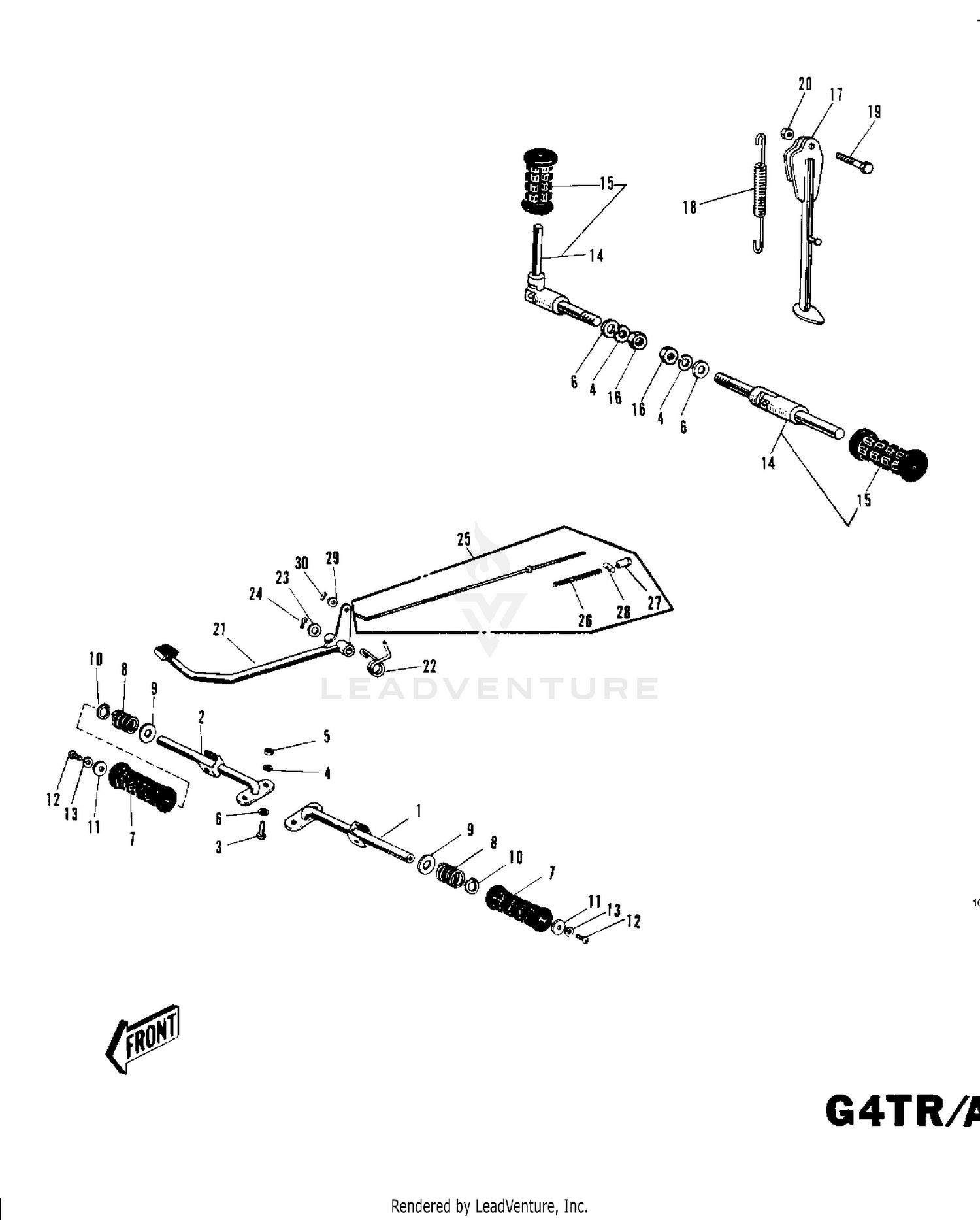

| Ref | Part Number | Description |
|---|
| 1 |
34003-018 |
BAR FOOTREST L.H Price: $25.77 |
| 2 |
34003-019 |
BAR FOOTREST R.H Price: $27.05 |
| 3 |
112B1020 |
BOLT-UPSET,10X20 Price: $3.71 |
| 4 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 5 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 6 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 7 |
92076-006 |
RUBBER FOOTREST Price: $18.94 |
| 8 |
34006-002 |
SPRING FOOTREST PEG Price: $5.75 |
| 9 |
92022-049 |
WASHER FOLDING PEG Price: $3.17 |
| 10 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 11 |
92022-024 |
WASHER,7X16X1.2 Price: $3.65 |
| 12 |
220AA0620 |
SCREW-PAN-CROS,6X20 This part replaces 220B0620. Price: $5.82 |
| 13 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 14 |
34030-001 |
BAR SET-REAR FOOTREST Price: $17.02 |
| 15 |
92076-008 |
RUBBER REAR FOOTREST Price: $7.95 |
| 16 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 17 |
34024-035 |
STAND-SIDE Price: $35.05 |
| 18 |
34025-001 |
SPRING,SIDE STAND Price: $13.80 |
| 19 |
112C1-025 |
BOLT-UPSET This part replaces 113G1025. Price: $3.21 |
| 20 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 21 |
43001-045 |
PEDAL-BRAKE Price: $23.70 |
| 22 |
43005-007 |
SPRING BRAKE PEDAL Price: $7.53 |
| 23 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 24 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 25 |
43010-5003 |
BRAKE ROD ASSY Price: $18.40 |
| 26 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 27 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 28 |
92043-0147 |
PIN,BRAKE ROD This part replaces 92043-039. Price: $6.38 |
| 29 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
