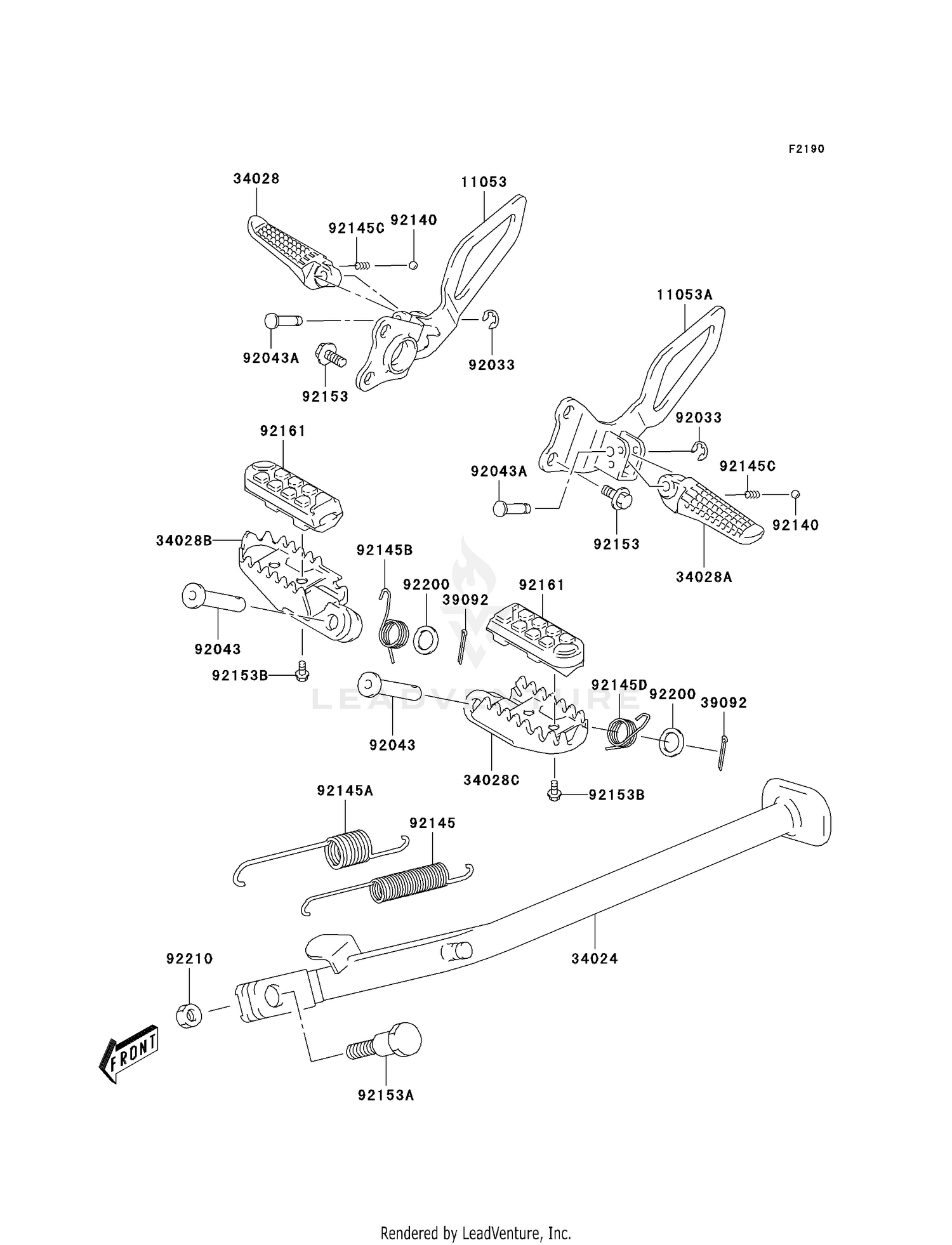

STAND(S)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 11053 | 11053-S034 | BRACKET Price: $71.58 |
| 11053A | 11053-S035 | BRACKET Price: $69.70 |
| 34024 | 34024-S006 | STAND-SIDE Price: $109.94 |
| 34028 | 34028-S007 | STEP,RR,RH Price: $42.08 |
| 34028A | 34028-S008 | STEP,RR,LH Price: $42.08 |
| 34028B | 34028-S009 | STEP,FR,RH Price: $85.58 |
| 34028C | 34028-S010 | STEP,FR,LH Price: $85.58 |
| 39092 | 39092-S016 | PIN-HAIR,COTTER This part replaces 39092-S013. Price: $1.92 |
| 92033 | 92033-S069 | RING-SNAP This part replaces 92033-S028. Price: $1.92 |
| 92043 | 92043-S047 | PIN Price: $7.91 |
| 92043A | 92043-S048 | PIN Price: $6.61 |
| 92140 | 92140-S006 | BALL Price: $1.63 |
| 92145 | 92145-S129 | SPRING Price: $8.98 |
| 92145A | 92145-S130 | SPRING Price: $7.18 |
| 92145B | 92145-S131 | SPRING Price: $6.61 |
| 92145C | 92145-S132 | SPRING Price: $1.68 |
| 92145D | 92145-S138 | SPRING Price: $6.61 |
| 92153 | 92153-S489 | BOLT This part replaces 92153-S108. Price: $2.40 |
| 92153A | 92153-S153 | BOLT Price: $4.99 |
| 92153B | 92153-S589 | BOLT This part replaces 92153-S343. Price: $1.76 |
| 92161 | 92161-S121 | DAMPER Price: $24.70 |
| 92200 | 92200-S290 | WASHER This part replaces 92200-S092. Price: $1.92 |
