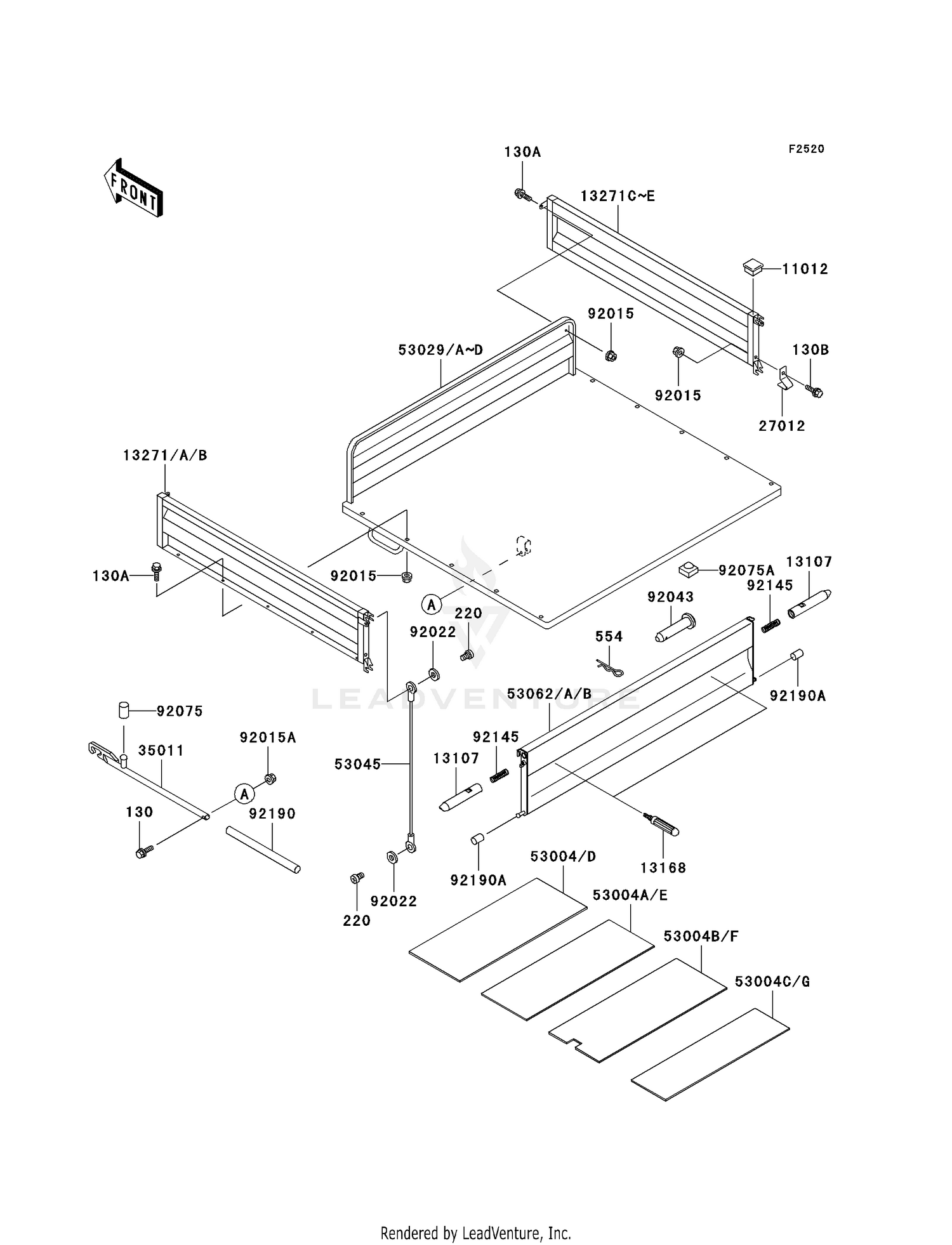

CARRIER(S)(KAF620-G1-G3)

CARRIER(S)(KAF620-G1-G3)

Parts (31)

RefPart NumberDescription
130 130BA0630 BOLT-FLANGED,6X30 This part replaces 130H0630. Price: $1.46
130A 130BB0820 BOLT-FLANGED,8X20 This part replaces 130J0820. Price: $0.84
130B 130BB0850 BOLT-FLANGED,8X50 This part replaces 130J0850. Price: $4.73
220 220AB0610 SCREW-PAN-CROS,6X10 This part replaces 220F0610. Price: $1.81
554 554DA1200 PIN-SNAP,12MM This part replaces 554A1200. Price: $3.96
11012 11012-1784 CAP Price: $6.32
13107 13107-0001 SHAFT This part replaces 13107-1453. Price: $71.54
13168 13168-7501 LEVER This part replaces 13168-1695. Price: $22.02
13271 13271-1430-B1 PLATE,CARRIER,SIDE,LH Price: $225.62
13271A 13271-1430-B9 PLATE,CARRIER,SIDE,LH Price: $225.62
13271C 13271-1433-B1 PLATE,CARRIER,SIDE,RH Price: $225.62
13271D 13271-1433-B9 PLATE,CARRIER,SIDE,RH Price: $255.72
27012 27012-0022 HOOK,TAIL GATE This part replaces 27012-1406. Price: $6.43
35011 35011-1648 STAY,CARRIER STOPPER Price: $28.90
53004D 53004-1157 MAT Price: $127.51
53004E 53004-1158 MAT Price: $121.71
53004F 53004-1159 MAT Price: $116.22
53004G 53004-1160 MAT Price: $107.03
53029B 53029-1246-B1 CARRIER,F.RED Price: $987.31
53029C 53029-1246-B9 CARRIER,H.GREEN Price: $987.31
53045 53045-1065 HOOK-ASSY,TAIL GATE Price: $33.93
53062 53062-0001-B1 GATE-TAIL,F.RED This part replaces 53062-1006-B1. Price: $389.73
53062A 53062-0001-B9 GATE-TAIL,H.GREEN This part replaces 53062-1006-B9. Price: $444.42
92015 92210-0004 NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38
92015A 92015-1675 NUT,LOCK,FLANGED,6MM Price: $4.31
92022 92022-1545 WASHER,7X18X1.2 Price: $1.03
92043 92043-1428 PIN,12X65 Price: $10.09
92075 92075-1817 DAMPER Price: $6.22
92075A 92075-1882 DAMPER Price: $8.10
92145 92145-1215 SPRING,TENSIONER Price: $4.63
92190 92190-1401 TUBE,13X16X200 Price: $5.25
