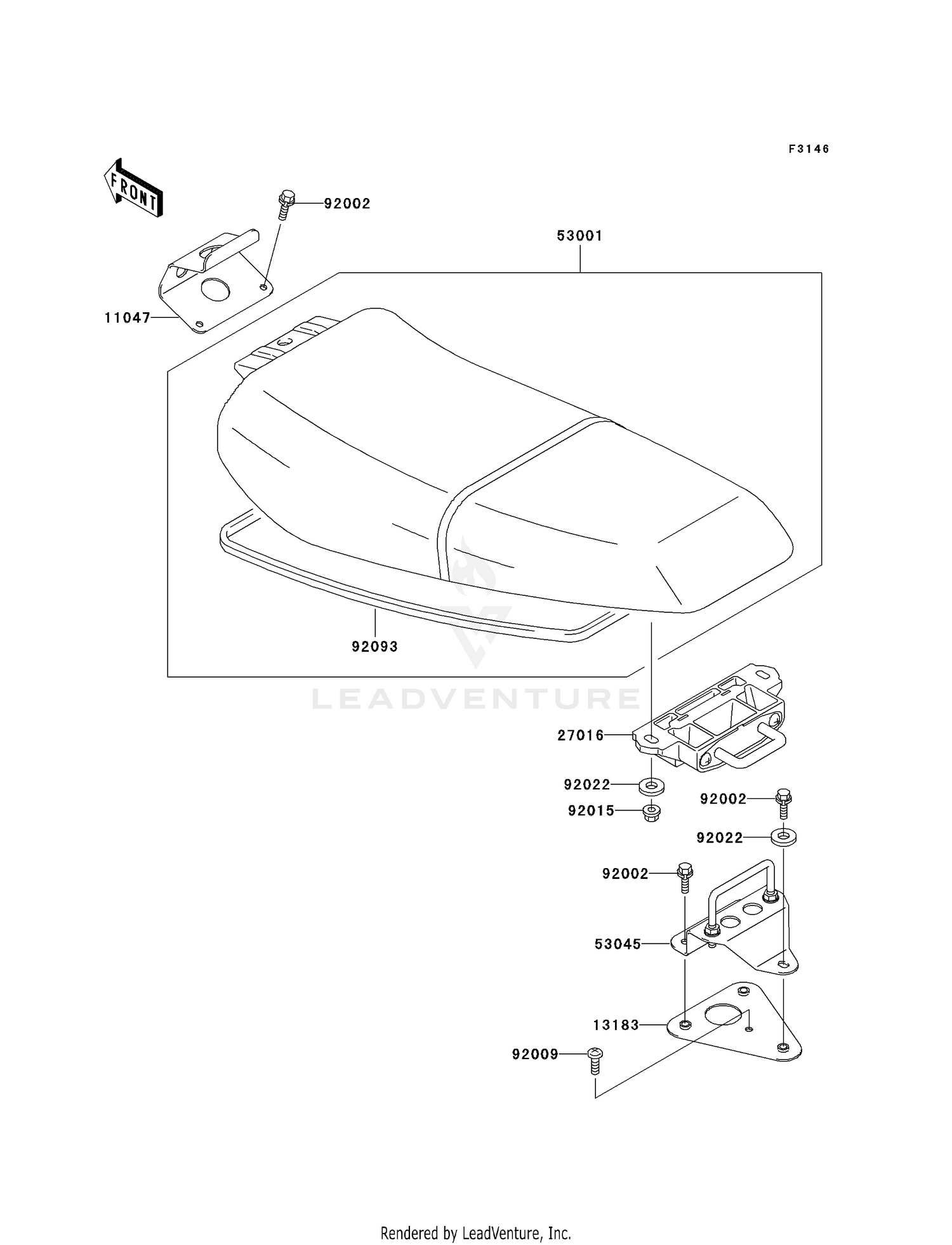

SEAT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 11047 | 11047-3791 | BRACKET,SEAT,FR Price: $48.84 |
| 13183 | 13271-3796 | PLATE,SEAT LOCK HOOK This part replaces 13183-3820. Price: $21.54 |
| 27016 | 27016-3731 | LOCK-ASSY,SEAT Price: $106.50 |
| 53001 | 53001-3732-MJ | SEAT-ASSY,RED Price: $425.09 |
| 53045 | 53045-3706 | HOOK-ASSY,SEAT LOCK Price: $108.49 |
| 92002 | 92002-3714 | BOLT,6X25 Price: $5.00 |
| 92009 | 92009-3789 | SCREW,5X16 Price: $2.97 |
| 92015 | 92015-3767 | NUT,6MM Price: $4.69 |
| 92022 | 92022-3710 | WASHER,6.5X20X1.5 Price: $3.65 |
