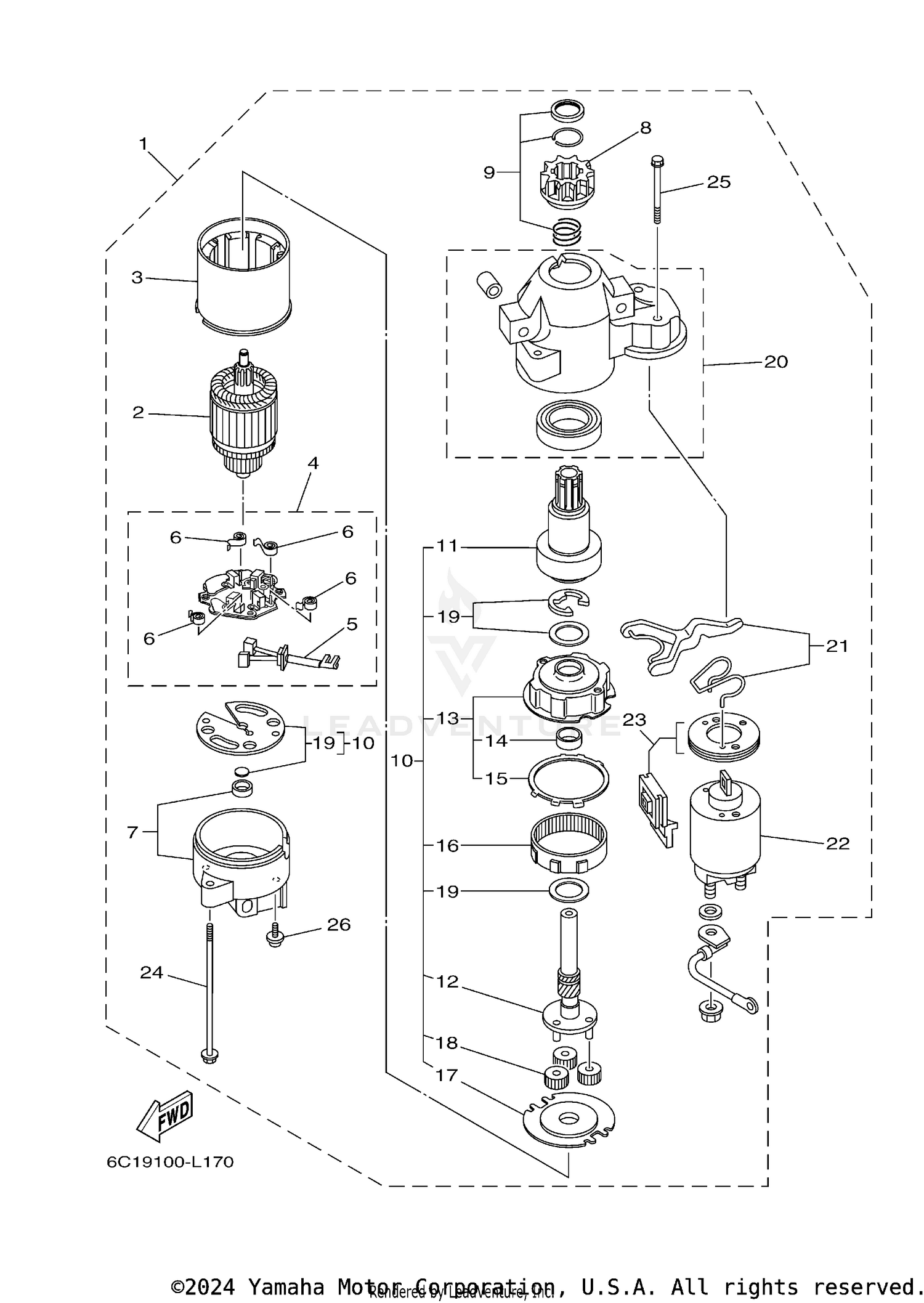

STARTING MOTOR
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6CJ-81800-01-00 | STARTING MOTOR ASSY Price: $836.45 |
| 2 | 67F-81850-00-00 | ARMATURE ASSY Price: $632.80 |
| 3 | 67F-81810-00-00 | STATOR ASSY Price: $414.90 |
| 4 | 69J-81840-11-00 | BRUSH HOLDER ASSY Price: $321.85 |
| 5 | 69J-81801-11-00 | BRUSH SET Price: $156.05 |
| 6 | 67F-81813-00-00 | SPRING, BRUSH Price: $16.75 |
| 7 | 68F-81820-00-00 | REAR BRACKET ASSY Price: $187.20 |
| 8 | 67F-81808-00-00 | PINION ASSY Price: $250.15 |
| 9 | 67F-81857-00-00 | PINION STOPPER SET Price: $94.50 |
| 10 | 67F-81807-00-00 | GEAR ASSY, STARTING MOTOR Price: $1,023.00 |
| 11 | 67F-81832-00-00 | CLUTCH, OVER RUN Price: $699.00 |
| 12 | 67F-81836-00-00 | SHAFT, PINION Price: $204.10 |
| 13 | 67F-81821-00-00 | BRACKET, CENTER 1 Price: $71.95 |
| 14 | 67F-81841-00-00 | BEARING Price: $40.70 |
| 15 | 67F-8183R-00-00 | GASKET Price: $12.45 |
| 17 | 67F-81830-00-00 | BRACKET, CENTER 2 Price: $151.85 |
| 18 | 60V-8183T-00-00 | GEAR, IDLER Price: $46.25 |
| 19 | 67F-81809-00-00 | WASHER KIT Price: $77.60 |
| 20 | 60X-81842-00-00 | COVER Price: $273.60 |
| 21 | 6C5-81839-00-00 | LEVER ASSY Price: $57.65 |
| 23 | 6C5-81869-00-00 | COVER, DUST Price: $102.80 |
| 24 | 6K7-81826-11-00 | BOLT Price: $24.30 |
| 25 | 69J-81828-00-00 | SCREW 2 Price: $13.00 |
