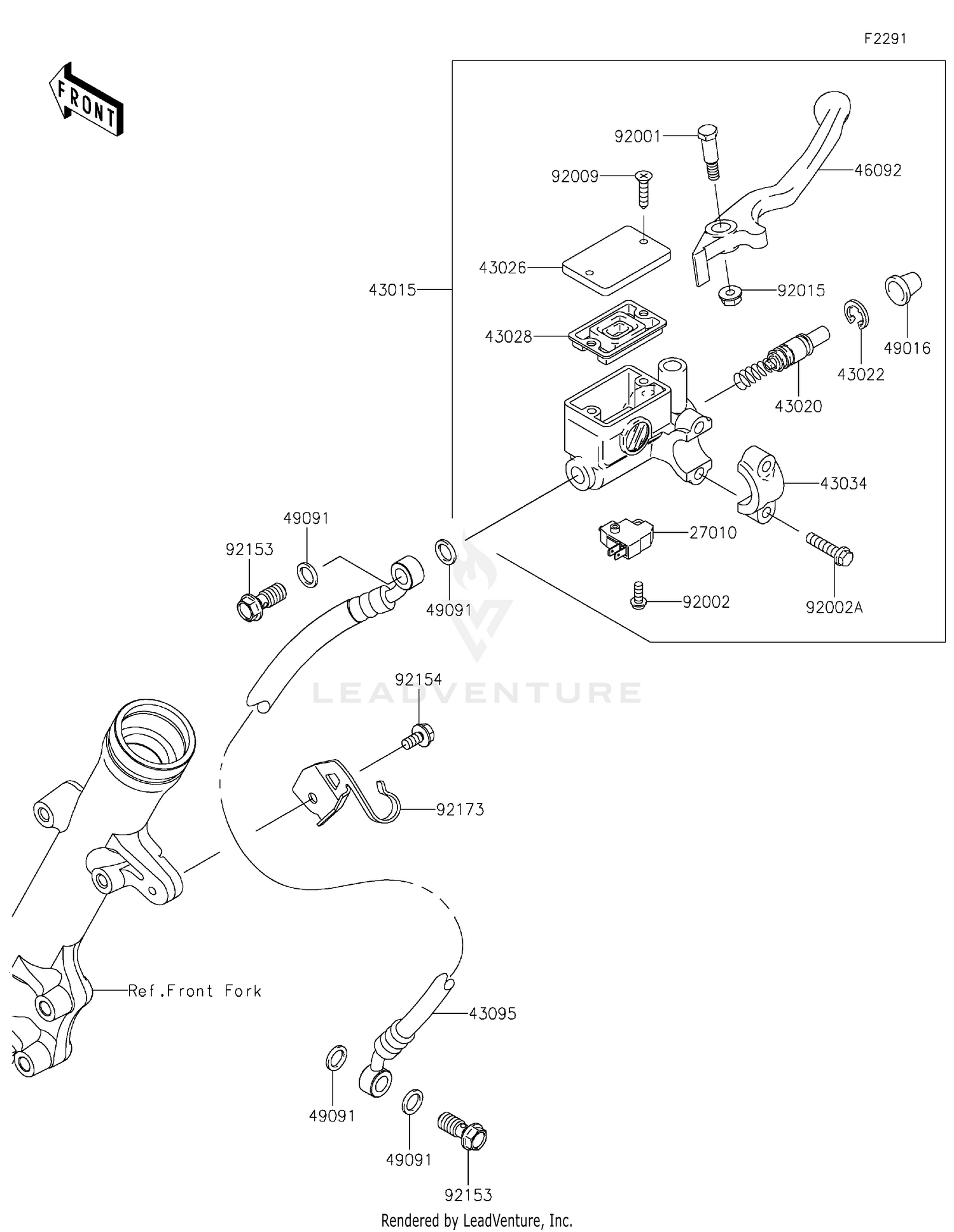

| Ref | Part Number | Description |
|---|
| 27010 |
27010-0873 |
SWITCH,BRAKE Price: $35.04 |
| 43015 |
43015-0681 |
CYLINDER-ASSY-MASTER,FR Price: $185.93 |
| 43020 |
43020-1098 |
PISTON-COMP-BRAKE This part replaces 43020-1095. Price: $51.24 |
| 43022 |
43022-1010 |
STOPPER-BRAKE,PISTON Price: $4.65 |
| 43026 |
43026-1074 |
CAP-BRAKE Price: $25.59 |
| 43028 |
43028-1061 |
DIAPHRAGM Price: $16.18 |
| 43034 |
43034-1016 |
HOLDER-BRAKE,MASTER CYLINDER Price: $19.45 |
| 43095 |
43095-1484 |
HOSE-BRAKE,767MM Price: $87.26 |
| 46092 |
46092-0559 |
LEVER-GRIP,FR BRAKE Price: $20.65 |
| 49016 |
49016-1044 |
COVER-SEAL,MASTER CYLINDER Price: $8.68 |
| 49091 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 Price: $2.15 |
| 92001 |
92001-1728 |
BOLT,FRONT BRAKE LEVER Price: $14.23 |
| 92002 |
92002-1323 |
BOLT,SCREW,4X12 Price: $3.92 |
| 92002A |
92002-1894 |
BOLT Price: $5.52 |
| 92009 |
92009-1458 |
SCREW,4MM Price: $3.21 |
| 92015 |
92210-0006 |
NUT,LOCK,6MM This part replaces 92015-1191. Price: $2.46 |
| 92153 |
92153-0029 |
BOLT,OIL,L=23 Price: $1.63 |
| 92154 |
92154-2776 |
BOLT,FLANGED,6X12 Price: $2.70 |
