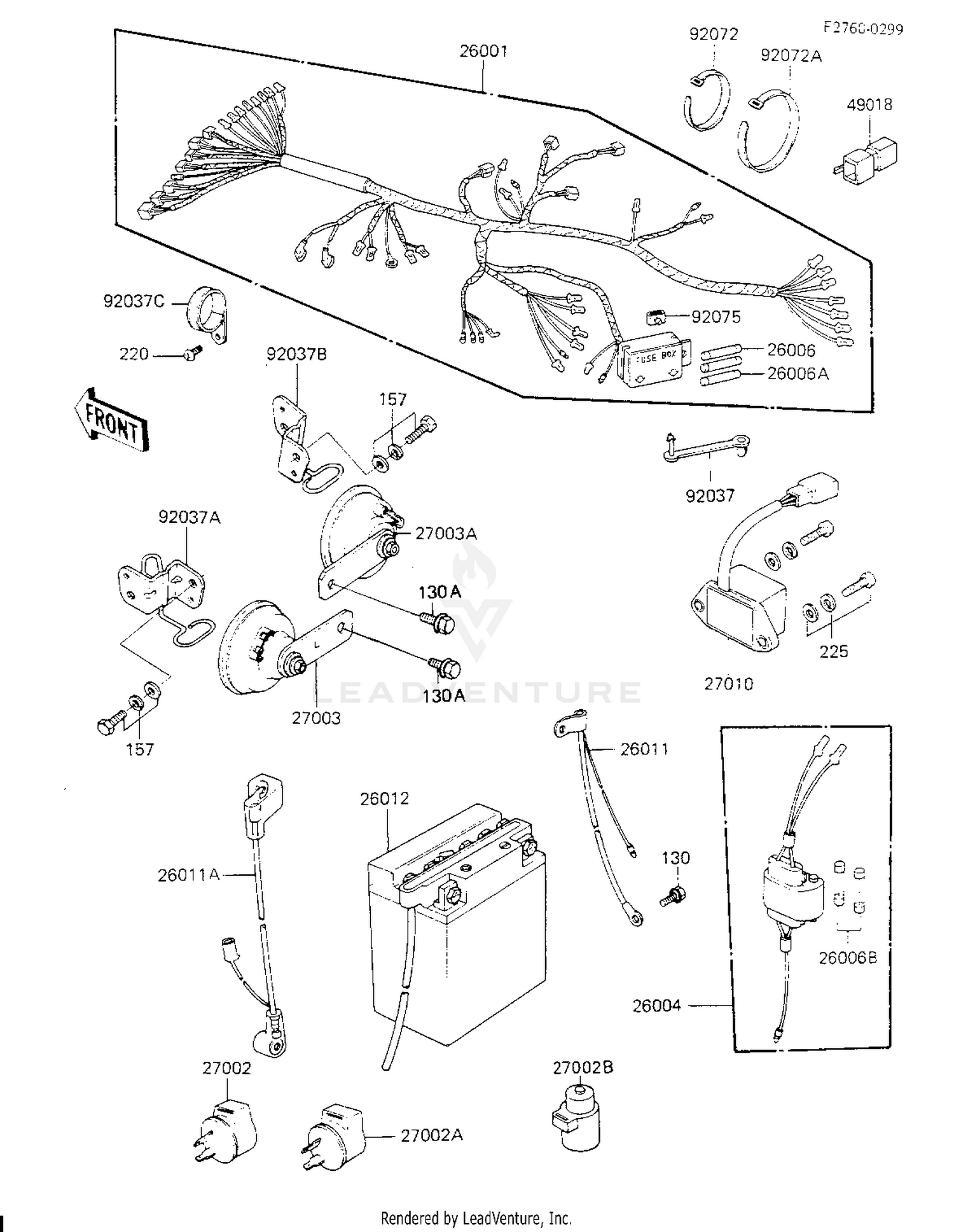

CHASSIS ELECTRICAL EQUIPMENT

CHASSIS ELECTRICAL EQUIPMENT

Parts (26)

RefPart NumberDescription
130 130AA0608 BOLT-FLANGED,6X8 This part replaces 130B0608. Price: $0.68
130A 130AB0812 BOLT-FLANGED,8X12 This part replaces 130C0812. Price: $0.73
157 157C0514 BOLT-WSP Price: $4.64
220 220AB0510 SCREW-PAN-CROS,5X10 This part replaces 220C0510. Price: $3.92
26001 26001-1657 HARNESS,MAIN Price: $296.74
26004 26004-1014 FUSE-ASSY,ACCESSORY Price: $70.27
26006 26006-003 FUSE,GLASS TUBE,6.4X25,10 Price: $4.72
26006A 26006-005 FUSE,GLASS TUBE,6.4X25,20 Price: $5.06
26006B 26006-1002 FUSE,GLASS TUBE,6.4X30,10 Price: $4.96
26011 26011-1632 WIRE-LEAD,BATTERY(-) This part replaces 26011-1159. Price: $23.23
26011A 26011-1174 WIRE-LEAD Price: $36.06
26012 26012-1061 YUA BAT YB12A-A This part replaces 26012-1004. Price: $95.75
27002 27002-0003 RELAY-ASSY This part replaces 27002-011. Price: $101.43
27002A 27002-016 RELAY,TURN SIGNAL Price: $55.57
27002B 27002-1051 RELAY-ASSY Price: $52.57
27003 27003-1370 HORN,LH This part replaces 27003-1057. Price: $64.83
27003A 27003-1371 HORN,RH This part replaces 27003-1058. Price: $69.08
27010 27010-1069 SWITCH,RESERVE LIGHTING Price: $115.95
49018 49018-1053 DIODE Price: $43.10
92037 92037-1290 CLAMP,SPEED,L=43 Price: $7.34
92037A 92037-1322 CLAMP,HORN LEAD WIRE, Price: $16.54
92037B 92037-1323 CLAMP,HORN LEAD WIRE, Price: $16.58
92037C 92037-1330 CLAMP,WIRING HARNESS Price: $9.50
92072 92072-031 BAND,L=149 Price: $5.00
92072A 92072-056 BAND,L=186 Price: $5.00
92075 92075-279 DAMPER RUBBER,FUSE Price: $6.45
