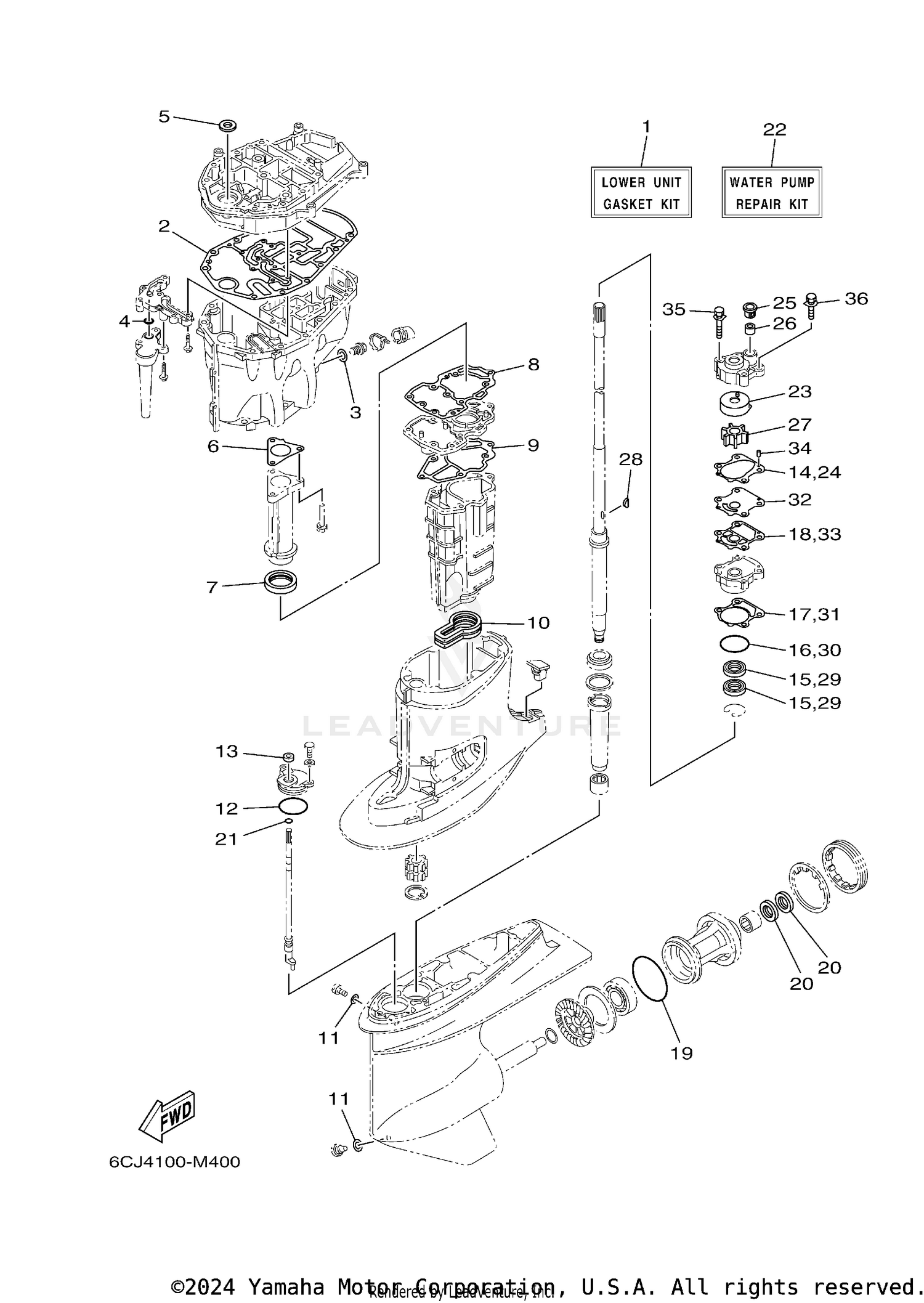

| Ref | Part Number | Description |
|---|
| 1 |
6CJ-W0001-21-00 |
LOWER UNIT GASKET KIT Price: $210.75 |
| 2 |
6C5-15312-01-00 |
GASKET, OIL PAN Price: $51.35 |
| 3 |
90430-14M09-00 |
GASKET Price: $2.55 |
| 4 |
93210-12790-00 |
O-RING Price: $8.49 |
| 5 |
93103-18011-00 |
OIL SEAL Price: $37.75 |
| 6 |
6C5-41133-00-00 |
GASKET, EXHAUST MANIFOLD 1 Price: $4.50 |
| 7 |
6C5-46132-00-00 |
GASKET 1 Price: $33.70 |
| 8 |
6C5-41134-00-00 |
GASKET, EXHAUST MANIFOLD Price: $20.55 |
| 9 |
6C5-41135-00-00 |
GASKET, EXHAUST MANIFOLD Price: $13.75 |
| 10 |
6C5-45123-00-00 |
GASKET, MUFFLER Price: $16.60 |
| 11 |
90430-08003-00 |
GASKET Price: $1.55 |
| 12 |
93210-49046-00 |
O-RING Price: $8.49 |
| 13 |
93106-09014-00 |
OIL SEAL Price: $8.40 |
| 14 |
6CJ-44315-00-00 |
GASKET, WATER PUMP Price: $6.80 |
| 15 |
93101-23070-00 |
OIL SEAL Price: $13.70 |
| 16 |
93210-46044-00 |
O-RING Price: $8.49 |
| 17 |
6CJ-44316-00-00 |
GASKET, WATER PUMP Price: $6.80 |
| 18 |
6CJ-44324-00-00 |
GASKET, CARTRIDGE Price: $6.80 |
| 19 |
93210-86M39-00 |
O-RING Price: $12.55 |
| 20 |
93101-25M03-00 |
OIL SEAL Price: $7.30 |
| 21 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 22 |
6CJ-W0078-01-00 |
WATER PUMP REPAIR KIT Price: $109.75 |
| 23 |
63D-44322-00-00 |
INSERT, CARTRIDGE Price: $17.15 |
| 24 |
6CJ-44315-00-00 |
GASKET, WATER PUMP Price: $6.80 |
| 25 |
63D-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $4.70 |
| 26 |
663-44366-01-00 |
DAMPER, WATER SEAL 2 Price: $6.30 |
| 27 |
6H3-44352-00-00 |
IMPELLER Price: $37.45 |
| 28 |
90280-03M03-00 |
KEY, WOODRUFF Price: $7.60 |
| 29 |
93101-23070-00 |
OIL SEAL Price: $13.70 |
| 30 |
93210-46044-00 |
O-RING Price: $8.49 |
| 31 |
6CJ-44316-00-00 |
GASKET, WATER PUMP Price: $6.80 |
| 32 |
6CJ-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $10.45 |
| 33 |
6CJ-44324-00-00 |
GASKET, CARTRIDGE Price: $6.80 |
| 34 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
