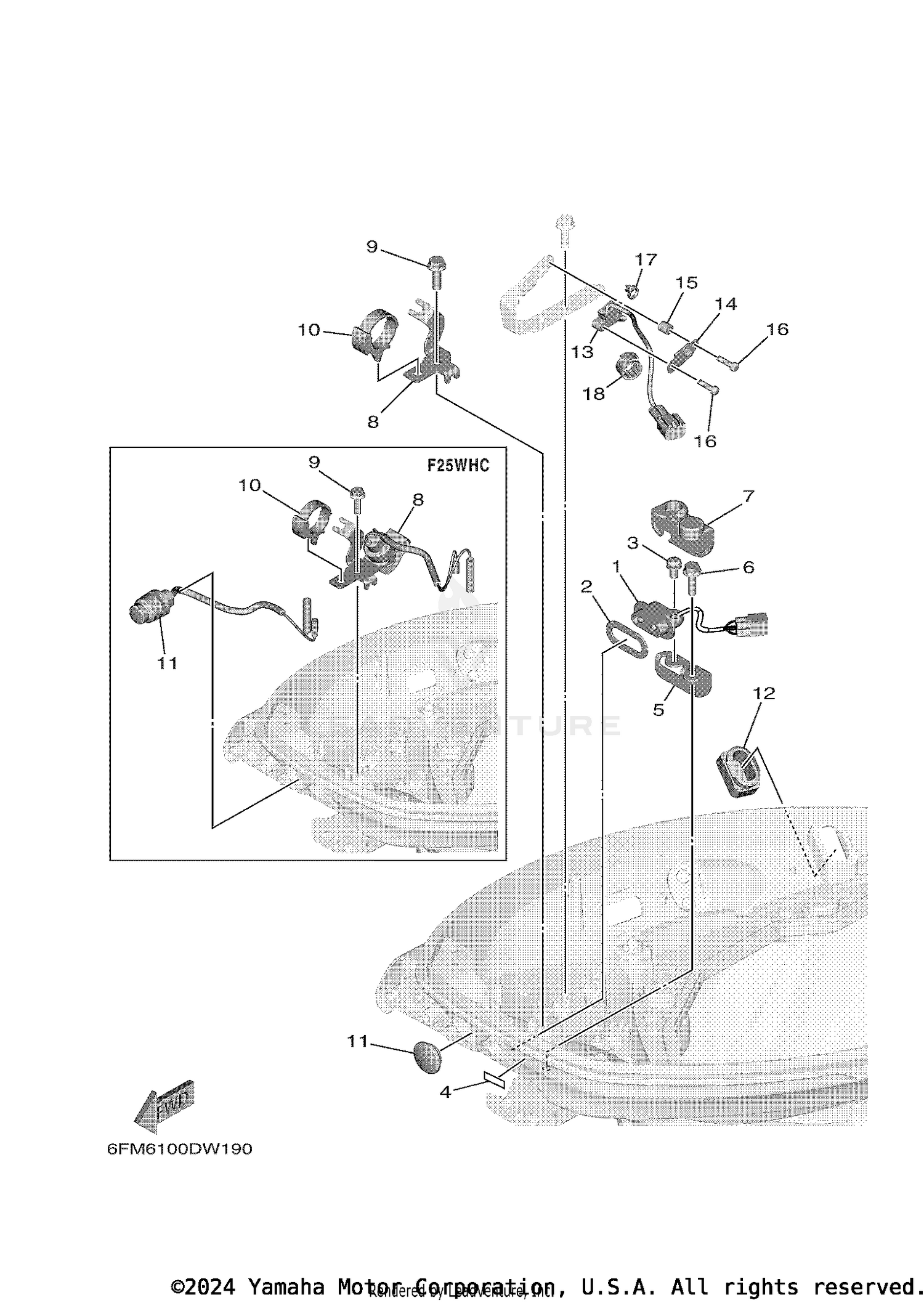

ELECTRICAL 5
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 62Y-84301-00-00 | PILOT LIGHT ASSY 1 Price: $76.05 |
| 2 | 6FM-83589-00-00 | GASKET Price: $3.55 |
| 3 | 97885-06012-00 | SCREW, PAN HEAD This part replaces 97985-06212-00. Price: $3.35 |
| 4 | 67C-85415-00-00 | MARK, SIGNAL LAMP Price: $5.50 |
| 5 | 6FM-82388-00-00 | PLATE Price: $7.40 |
| 6 | 90109-06M86-00 | BOLT Price: $1.81 |
| 7 | 6FM-82355-01-00 | GROMMET Price: $6.75 |
| 8 | 6FM-15774-00-00 | STAY 4 Price: $13.25 |
| 8 | 6FM-82540-00-00 | NEUTRAL SWITCH ASSY Price: $135.75 |
| 9 | 90109-06M86-00 | BOLT Price: $1.81 |
| 10 | 90464-12183-00 | CLAMP Price: $3.50 |
| 11 | 65W-81870-00-00 | STARTING SWITCH ASSY Price: $28.30 |
| 11 | 6G1-42725-01-00 | GROMMET Price: $10.70 |
| 12 | 6FM-42723-01-00 | COVER, BOTTOM Price: $6.25 |
| 13 | 60V-8259F-01-00 | SWITCH ASSY Price: $57.55 |
| 14 | 6FM-82588-00-00 | PLATE Price: $8.10 |
| 15 | 90387-04001-00 | COLLAR Price: $8.15 |
| 16 | 97985-04116-00 | SCREW, WITH WASHER Price: $3.55 |
| 17 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
