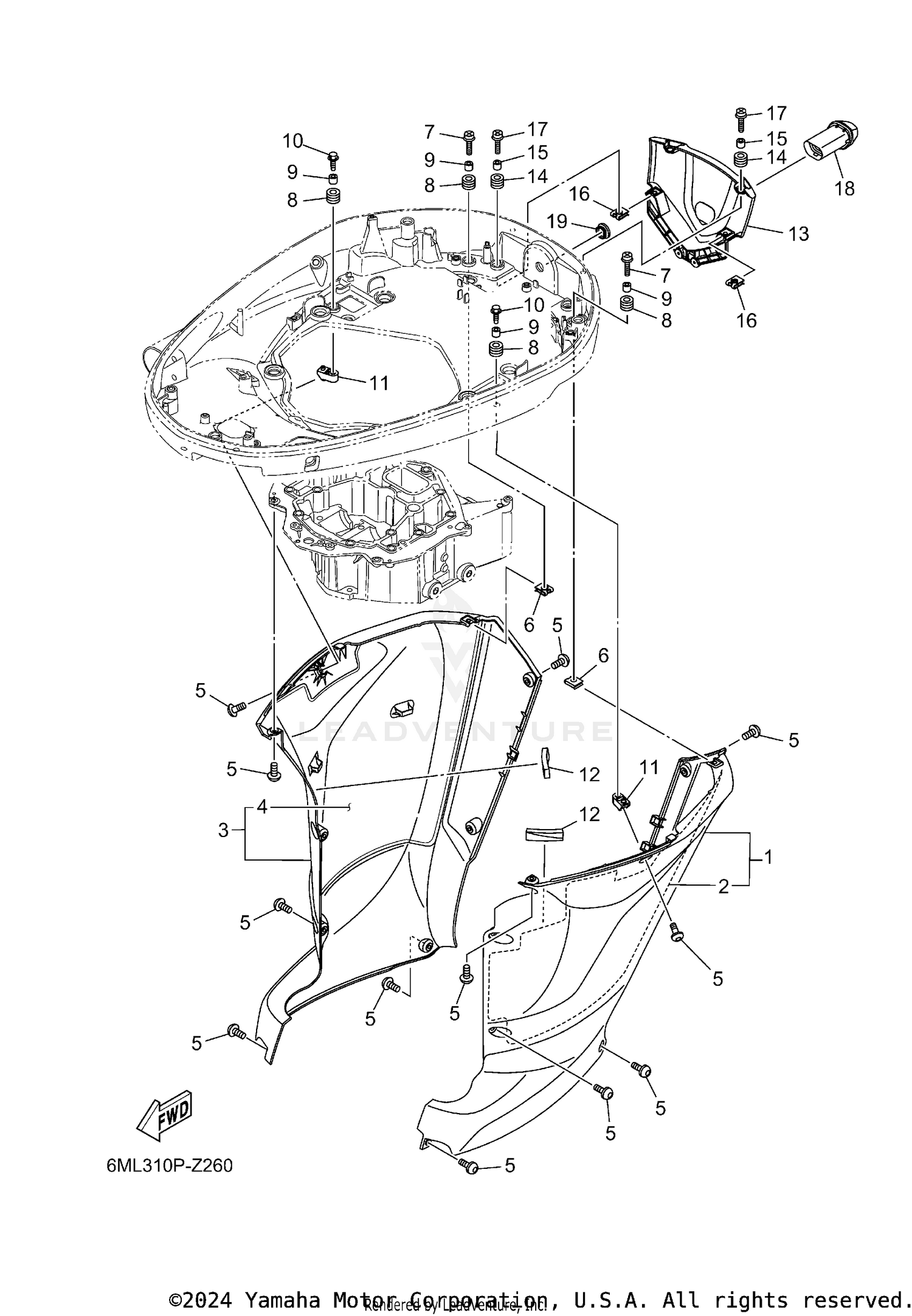

BOTTOM COWLING 3
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 6ML-427A1-00-00 | SHEET,SOUND 1 Price: $146.60 |
| 4 | 6ML-427A2-00-00 | SHEET,SOUND 2 Price: $146.60 |
| 5 | 90111-06144-00 | BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 6 | 90183-061A8-00 | NUT, SPRING Price: $3.15 |
| 7 | 90159-06053-00 | SCREW, WITH WASHER Price: $4.60 |
| 8 | 90480-13M24-00 | GROMMET Price: $9.05 |
| 9 | 90387-06M43-00 | COLLAR Price: $8.85 |
| 10 | 90109-06M80-00 | BOLT Price: $2.95 |
| 11 | 6CE-42774-B0-00 | STAY, APRON 1 Price: $38.55 |
| 12 | 5GJ-21717-00-00 | DAMPER Price: $5.99 |
| 14 | 90480-13M24-00 | GROMMET Price: $9.05 |
| 15 | 90387-06M43-00 | COLLAR Price: $8.85 |
| 16 | 90183-061A8-00 | NUT, SPRING Price: $3.15 |
| 17 | 90159-06053-00 | SCREW, WITH WASHER Price: $4.60 |
| 18 | 6KA-42769-00-00 | SEAL, RUBBER Price: $28.25 |
