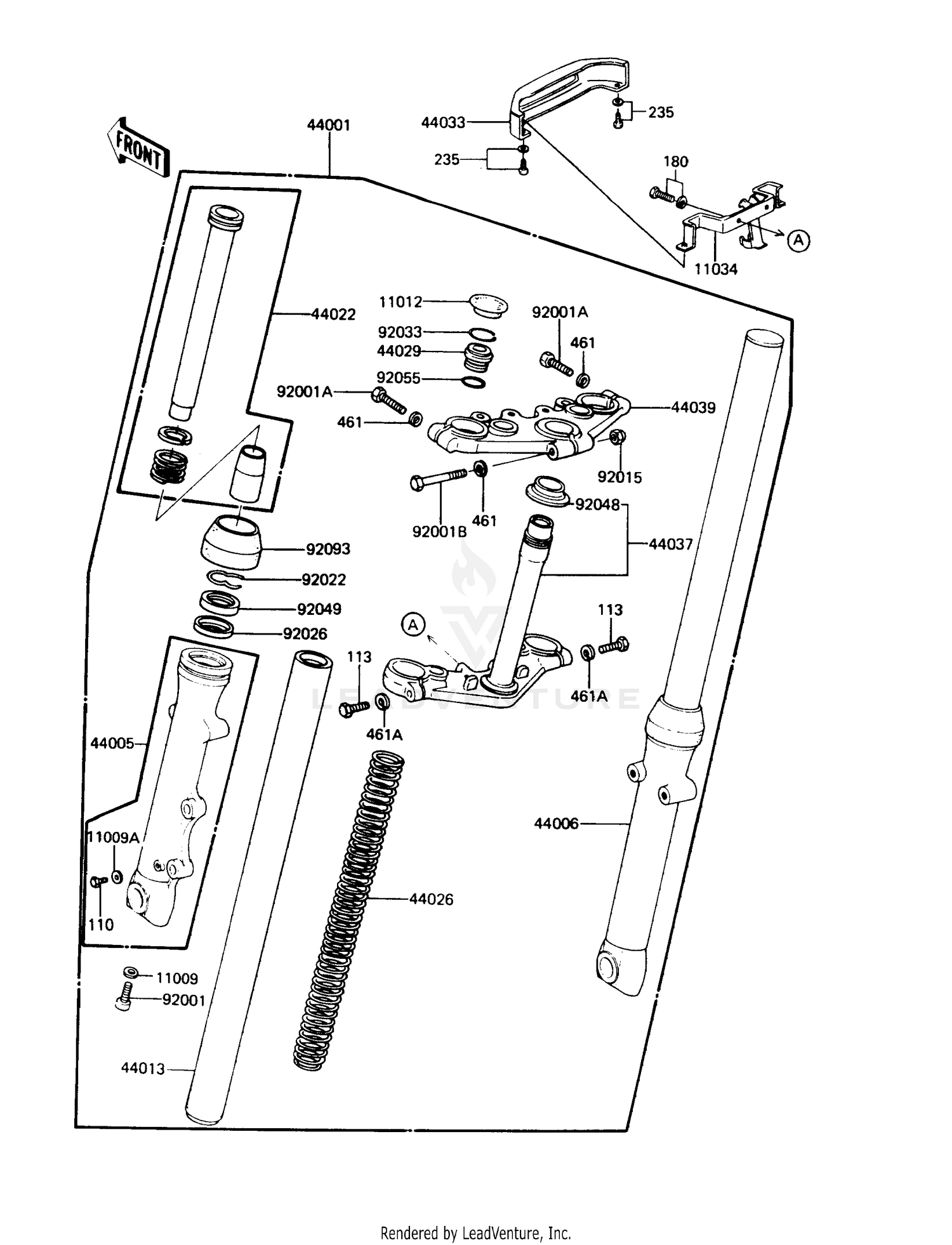

| Ref | Part Number | Description |
|---|
| 110 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 113 |
92001-1252 |
BOLT,HEX HEAD 10X35 This part replaces 113B1035. Price: $7.65 |
| 180 |
180AA0612 |
BOLT-UPSET-WS This part replaces 180B0612. Price: $4.31 |
| 235 |
235AA0410 |
SCREW-PAN-WP-CROS This part replaces 235B0410. Price: $3.13 |
| 461 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 11009 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11009A |
44045-052 |
GASKET,DRAIN PLUG Price: $6.10 |
| 11012 |
11012-1124 |
CAP,FORK This part replaces 11012-1021. Price: $9.39 |
| 11034 |
11034-1758 |
BRACKET,FORK COVER Price: $31.79 |
| 44001 |
44001-1400 |
FORK-FRONT Price: $1,569.09 |
| 44005 |
44005-1109 |
PIPE-LEFT FORK OUTER Price: $177.80 |
| 44006 |
44006-1109 |
PIPE-RIGHT FORK OUTER Price: $270.15 |
| 44013 |
44013-1025 |
TUBE,FORK INNER Price: $312.80 |
| 44022 |
44022-1096 |
CYLINDER-FORK This part replaces 44022-1048. Price: $92.95 |
| 44026 |
44026-1102 |
SPRING,FORK INNER Price: $64.42 |
| 44029 |
44029-022 |
SEAT-FORK SPRING Price: $11.61 |
| 44033 |
44033-1062 |
COVER-FORK Price: $40.04 |
| 44037 |
44037-1053 |
STEM,STEERING,GMN This part replaces 44037-1014. Price: $349.92 |
| 44039 |
44039-1012 |
HOLDER-FORK UPPER Price: $242.30 |
| 92001 |
44041-078 |
BOLT,FORK CYLINDER Price: $9.89 |
| 92001A |
92001-1739 |
BOLT,8X40 Price: $7.79 |
| 92001B |
92001-1740 |
BOLT,8X55 Price: $8.63 |
| 92015 |
92015-1235 |
NUT,8MM Price: $3.15 |
| 92022 |
44043-057 |
RING,OIL SEAL STOPPER Price: $6.52 |
| 92026 |
92026-1365 |
SPACER This part replaces 92026-1119. Price: $9.73 |
| 92033 |
44044-023 |
RING-SNAP Price: $5.46 |
| 92048 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 92049 |
92049-1340 |
SEAL-OIL,FORK OUTER TUBE This part replaces 92049-1077. Price: $20.75 |
| 92055 |
44046-025 |
RING-O Price: $6.57 |
| 92093 |
92093-1063 |
DUST SHIELD,FORK Price: $34.25 |
