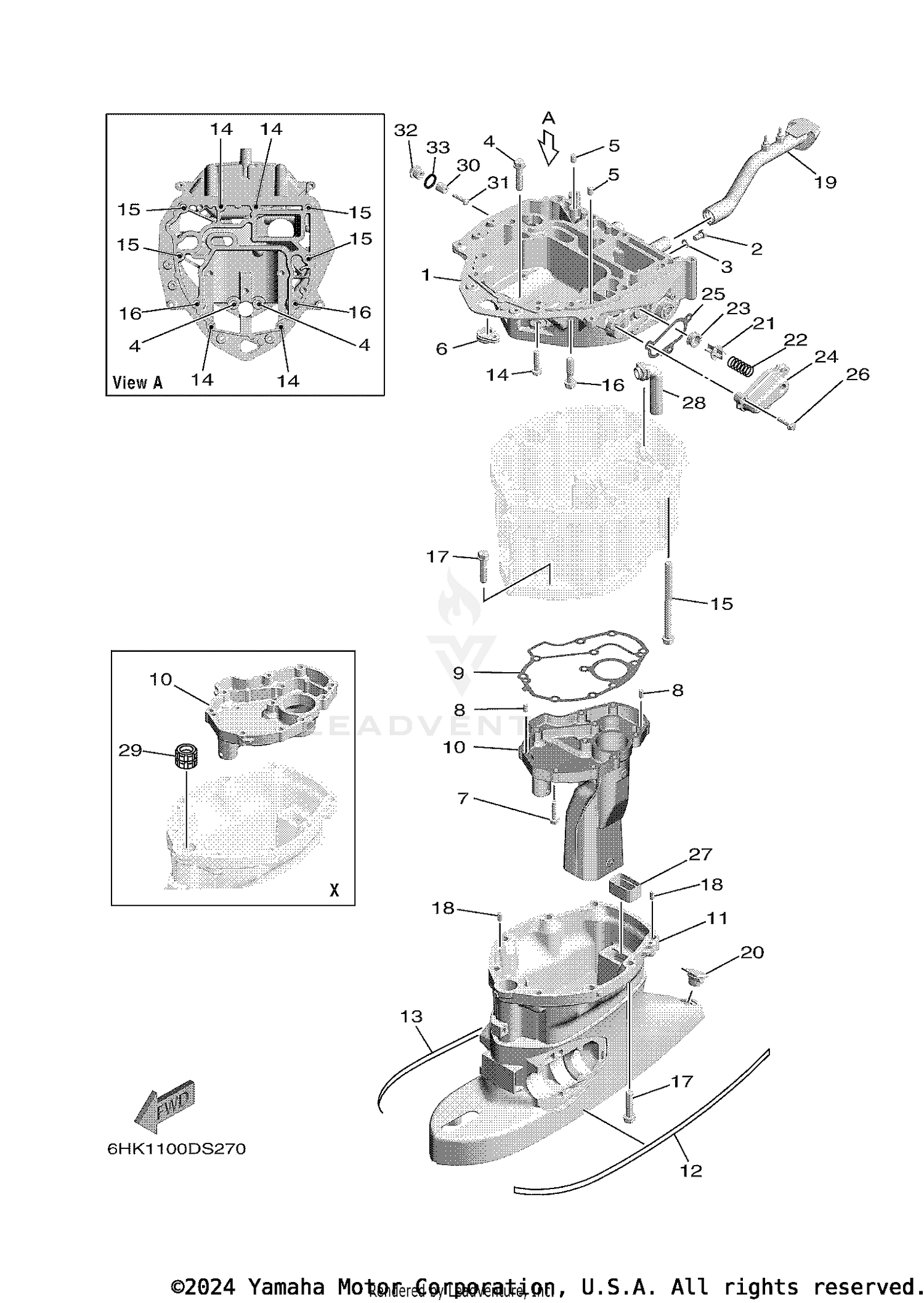

| Ref | Part Number | Description |
|---|
| 1 |
6EK-41137-02-CA |
GUIDE, EXHAUST This part replaces 6EK-41137-01-00. Price: $791.20 |
| 2 |
97D95-08014-00 |
BOLT, HEXAGON DEEP Price: $1.10 |
| 3 |
90430-08143-00 |
GASKET Price: $3.35 |
| 4 |
97E75-10545-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 5 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 6 |
6EK-42727-01-00 |
GROMMET Price: $3.80 |
| 7 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 8 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 9 |
6EK-41134-00-00 |
GASKET, EXHAUST MANIFOLD Price: $9.10 |
| 12 |
6N9-42791-41-00 |
MARK 1 Price: $15.10 |
| 13 |
6N9-42792-41-00 |
MARK 2 Price: $8.70 |
| 14 |
97E75-08535-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 15 |
90119-10007-00 |
BOLT, WITH WASHER Price: $29.25 |
| 16 |
97E75-10545-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 17 |
97E75-10545-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 18 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 19 |
6EK-42769-01-00 |
SEAL, RUBBER Price: $15.95 |
| 20 |
6C5-45155-02-00 |
CAP This part replaces 6C5-45155-01-00. Price: $10.95 |
| 21 |
60H-12416-00-00 |
VALVE, PRESSURE CONTROL This part replaces 6G5-12416-00-00. Price: $13.75 |
| 22 |
90501-200A2-00 |
SPRING, COMPRESSION Price: $3.45 |
| 23 |
90480-20M05-00 |
GROMMET Price: $4.40 |
| 24 |
6EK-1246A-00-9S |
COVER 1 Price: $36.50 |
| 25 |
6EK-12435-A0-00 |
GASKET Price: $2.85 |
| 26 |
95D95-06025-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 27 |
67F-45127-00-00 |
SEAL Price: $7.90 |
| 28 |
6EK-45135-00-00 |
PIPE Price: $10.40 |
| 30 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 31 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 32 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
