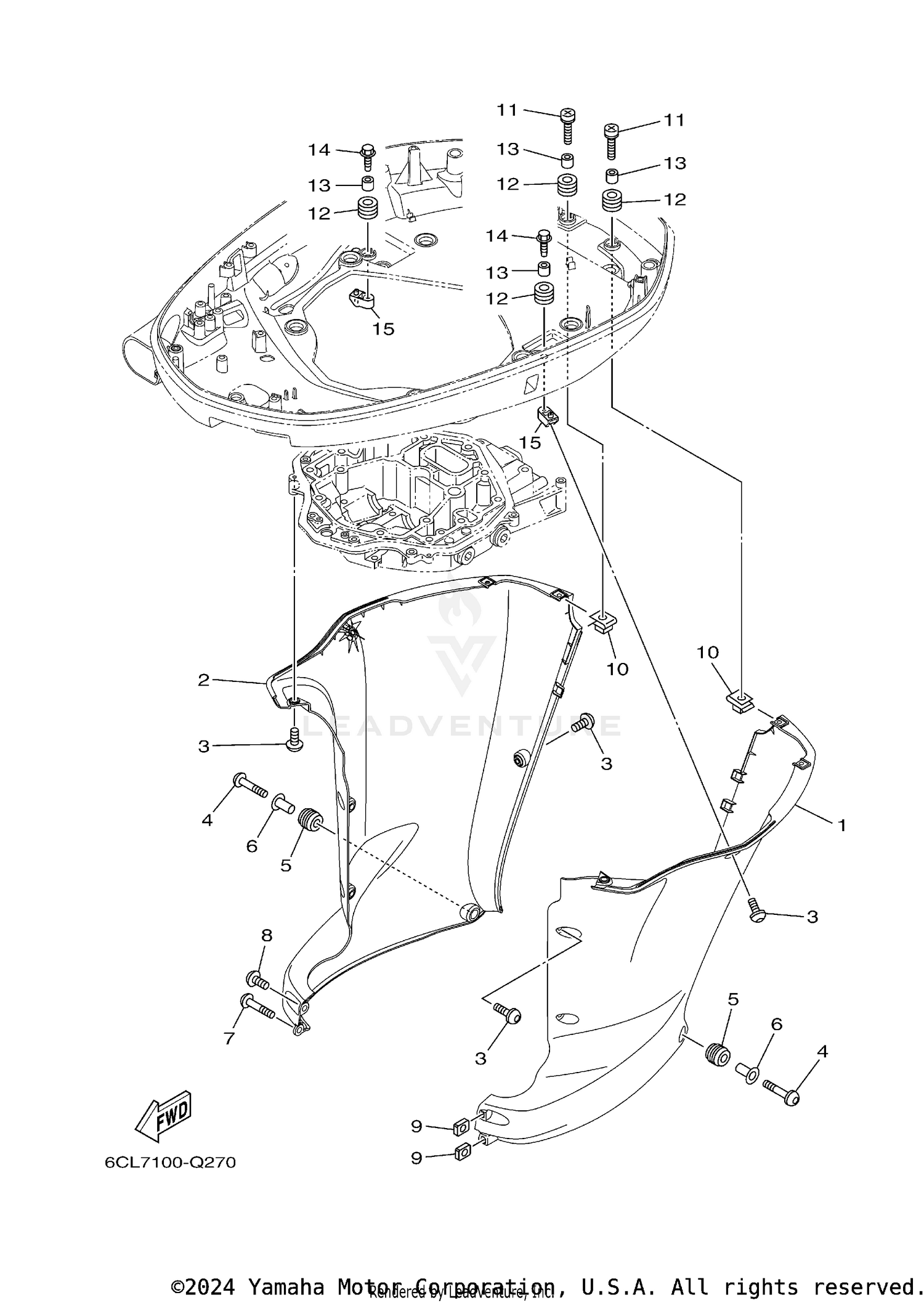

BOTTOM COWLING 3
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6CE-42741-02-8D | APRON Price: $366.40 |
| 2 | 99999-04501-00 | APRON, 2 This part replaces 6CE-42771-02-8D. Price: $360.40 |
| 3 | 90111-06144-00 | BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 4 | 90111-06142-00 | BOLT,HEX. SOCKET BUTTON Price: $9.65 |
| 5 | 90480-16009-00 | GROMMET Price: $6.75 |
| 6 | 90387-07028-00 | COLLAR Price: $41.10 |
| 7 | 90111-06142-00 | BOLT,HEX. SOCKET BUTTON Price: $9.65 |
| 8 | 90111-06144-00 | BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 9 | 90173-06001-00 | NUT, SQUARE Price: $7.60 |
| 10 | 90183-061A8-00 | NUT, SPRING Price: $3.15 |
| 11 | 90159-06053-00 | SCREW, WITH WASHER Price: $4.60 |
| 12 | 90480-13M24-00 | GROMMET Price: $9.05 |
| 13 | 90387-06M43-00 | COLLAR Price: $8.85 |
| 14 | 90109-06M80-00 | BOLT Price: $2.95 |
