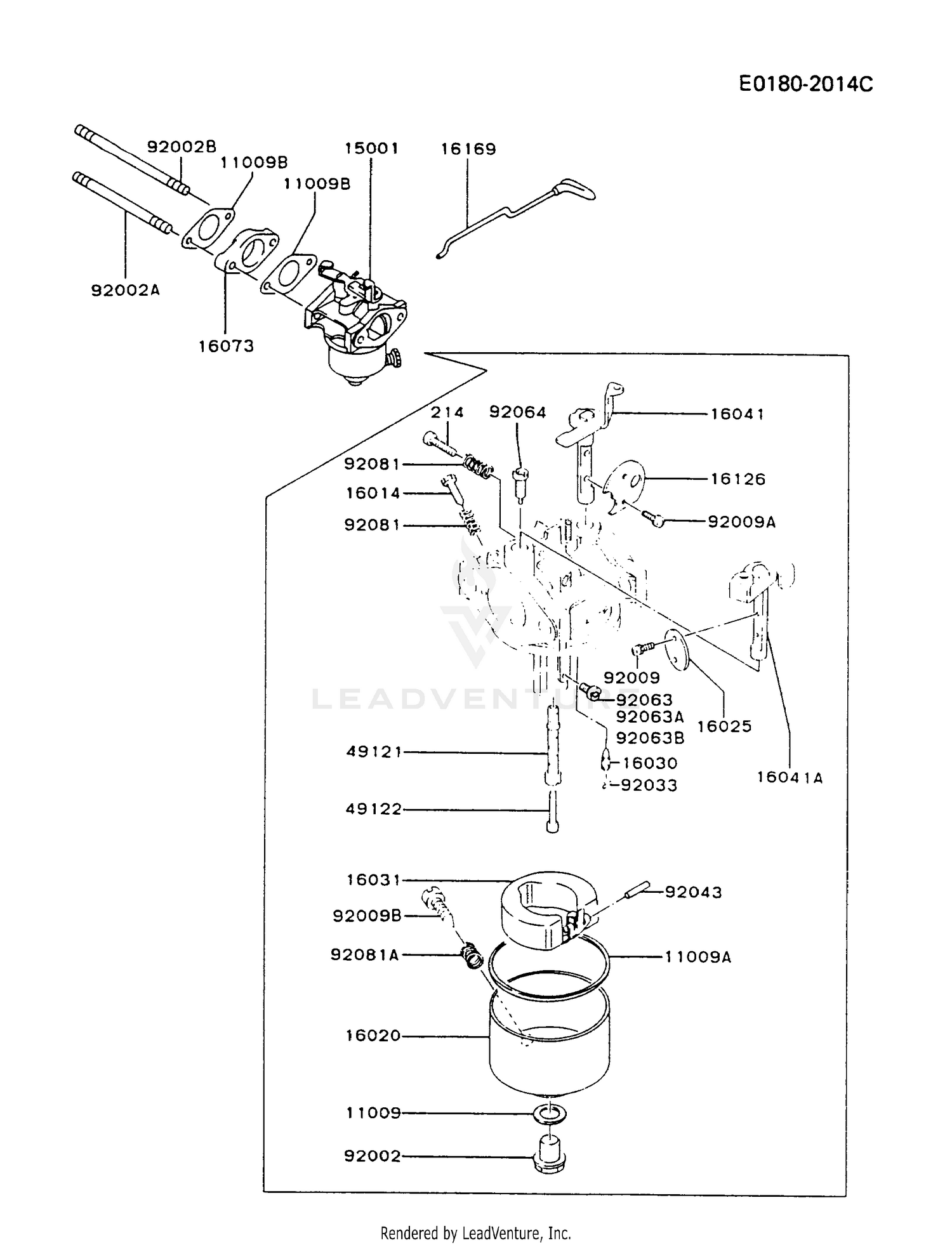

| Ref | Part Number | Description |
|---|
| 11009 |
11009-2036 |
GASKET-FLOAT BOWL DRN Price: $0.91 |
| 11009A |
11009-2037 |
GASKET-FLOAT BOWL Price: $4.74 |
| 11009B |
11009-2111 |
GASKET Price: $1.18 |
| 15001 |
15001-2665 |
CARBURETOR-ASSY Price: $104.91 |
| 16014 |
16014-2003 |
SCREW,PILOT Price: $7.96 |
| 16020 |
16020-2091 |
CHAMBER-FLOAT Price: $19.08 |
| 16025 |
16025-2069 |
VALVE, THROTTLE #170 Price: $4.31 |
| 16030 |
16030-2016 |
VALVE-FLOAT Price: $16.59 |
| 16031 |
16031-2004 |
FLOAT Price: $19.38 |
| 16041 |
16041-2085 |
SHAFT-CARBURETOR,CHOKE Price: $16.17 |
| 16041A |
16041-2086 |
SHAFT, THROTTLE Price: $16.59 |
| 16073 |
16073-2052 |
INSULATOR Price: $3.77 |
| 16126 |
16126-2078 |
VALVE Price: $7.23 |
| 16169 |
16169-2105 |
LINK-CHOKE This part replaces 16169-2058. Price: $3.10 |
| 49121 |
49121-2061 |
NOZZLE-MAIN,#5I Price: $23.70 |
| 49122 |
49122-2001 |
PIPE-BLEEDER This part replaces 49121-2067. Price: $16.59 |
| 92002 |
92002-2010 |
BOLT Price: $1.57 |
| 92002A |
92002-2251 |
BOLT Price: $1.36 |
| 92002B |
92002-2252 |
BOLT Price: $1.86 |
| 92009 |
92009-2024 |
SCREW Price: $1.27 |
| 92009A |
92009-2081 |
SCREW Price: $1.72 |
| 92009B |
92009-2015 |
SCREW,DRAIN Price: $4.94 |
| 92033 |
92033-2069 |
RING-SNAP Price: $3.35 |
| 92043 |
92043-2006 |
PIN,FLOAT Price: $3.06 |
| 92063 |
92063-2054 |
JET-MAIN,#82.5 Price: $6.24 |
| 92063A |
92063-2087 |
JET-MAIN,#85 Price: $6.24 |
| 92063B |
92063-2051 |
JET-MAIN,#87.5 Price: $7.36 |
| 92081 |
92081-2008 |
SPRING Price: $2.78 |
| 92081A |
92081-2009 |
SPRING Price: $2.78 |
