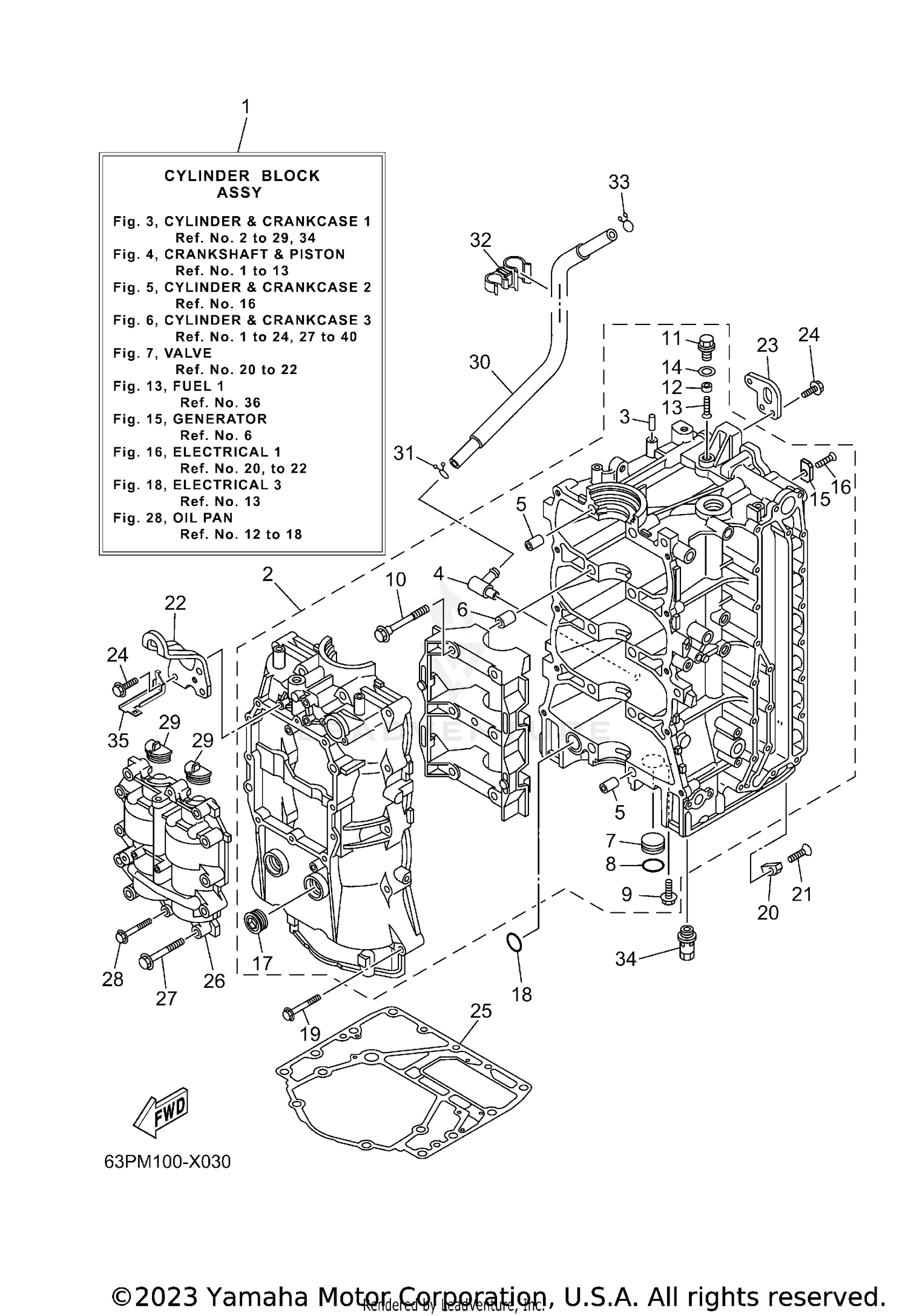

| Ref | Part Number | Description |
|---|
| 1 |
63P-W009B-17-9S |
CYLINDER BLOCK ASSY This part replaces 63P-W009B-14-9S. Price: $8,767.30 |
| 2 |
63P-W1510-04-9S |
CRANKCASE ASSY Price: $3,993.15 |
| 3 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 4 |
63P-11372-00-00 |
NIPPLE, HOSE Price: $36.10 |
| 5 |
91814-18002-00 |
PIN, DOWEL Price: $4.40 |
| 6 |
91814-18002-00 |
PIN, DOWEL Price: $4.40 |
| 7 |
90338-25004-00 |
PLUG Price: $12.30 |
| 8 |
93210-25647-00 |
O-RING Price: $3.65 |
| 9 |
90119-06276-00 |
BOLT, WITH WASHER Price: $6.15 |
| 10 |
90105-10071-00 |
BOLT, FLANGE Price: $14.15 |
| 11 |
63P-11197-00-00 |
PLUG, BLIND Price: $27.15 |
| 12 |
63P-11325-21-00 |
ANODE Price: $10.55 |
| 13 |
98780-05016-00 |
SCREW, FLAT HEAD Price: $3.20 |
| 14 |
90430-14115-00 |
GASKET Price: $3.00 |
| 15 |
63P-11325-11-00 |
ANODE Price: $10.55 |
| 16 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 17 |
90340-27129-00 |
PLUG, STRAIGHT SCREW Price: $5.60 |
| 18 |
93210-25552-00 |
O-RING Price: $14.49 |
| 19 |
90119-08M66-00 |
BOLT, WITH WASHER Price: $3.65 |
| 20 |
63P-11325-01-00 |
ANODE Price: $10.55 |
| 21 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 22 |
63P-11119-00-00 |
HANGER, ENGINE Price: $67.65 |
| 23 |
63P-11119-10-00 |
HANGER, ENGINE Price: $11.55 |
| 24 |
90119-06MA2-00 |
BOLT, WITH WASHER Price: $3.20 |
| 26 |
63P-11500-05-00 |
BALANCER ASSY This part replaces 63P-11500-04-00. Price: $572.99 |
| 27 |
90119-08M66-00 |
BOLT, WITH WASHER Price: $3.65 |
| 28 |
90119-06MA6-00 |
BOLT, WITH WASHER Price: $4.60 |
| 29 |
63P-11512-00-00 |
SEAL, CRANK COVER Price: $8.60 |
| 30 |
63P-11377-10-00 |
HOSE Price: $40.65 |
| 31 |
90467-15M14-00 |
CLIP Price: $3.45 |
| 32 |
90464-15007-00 |
CLAMP Price: $6.75 |
| 33 |
90467-15M14-00 |
CLIP Price: $3.45 |
| 34 |
63P-13490-00-00 |
RELIEF VALVE ASSY Price: $162.30 |
