| Ref | Part Number | Description |
|---|
| 1 |
114045200 |
Hair Pin Price: $11.49 |
| 2 |
205052544 |
Socket Screw M5 X 25 Price: $1.69 |
| 3 |
207588044 |
Hex. Cap Screw M8 X 80 Price: $3.09 |
| 4 |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 5 |
234051410 |
Flat Washer M5 Price: $0.55 |
| 6 |
250000580 |
Torx Screw M6 X 30 Price: $6.19 |
| 7 |
250000757 |
Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. Price: $2.09 |
| 8 |
250000742 |
Torx Screw M5 X 14 Price: $1.49 |
| 9 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 10 |
250200144 |
Conical Spring Washer M14 Price: $4.49 |
| 11 |
250400063 |
Spring Pin M3 X 30 Price: $2.19 |
| 12 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 15 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 16 |
293300185 |
O-Ring Price: $1.19 |
| 17 |
293370037 |
Circlip Price: $3.29 |
| 21 |
390909100 |
Avex Rivet Price: $0.30 |
| 24 |
417127016 |
Pulley Roller Price: $25.99 |
| 25 |
417127155 |
Washer Price: $8.39 |
| 26 |
415129604 |
Calibration Ass'y Price: $22.49 |
| 27 |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 29 |
417127351 |
Fixe Flange Ass'y Price: $349.99 |
| 30 |
417127366 |
Slider Flange Ass'y Price: $164.99 |
| 32 |
417222758 |
Bushing Price: $22.49 |
| 33 |
417223257 |
Roller Axle Price: $7.09 |
| 36 |
417223694 |
Ramp Axle Price: $4.99 |
| 37 |
417223752 |
Seat Spring Price: $15.49 |
| 38 |
417223865 |
Governor Cup Ass'y Price: $189.99 |
| 39 |
417224091 |
Fixed Flange Ass'y This part replaces 417223867. Price: $189.99 |
| 40 |
417223919 |
Slider Shoe Price: $3.99 |
| 45 |
417300265 |
Spacer Price: $2.39 |
| 49 |
417300381 |
Guide Price: $11.99 |
| 50 |
417300382 |
Belt Guard Price: $92.99 |
| 52 |
417300421 |
Reinforcement Plate Price: $4.49 |
| 53 |
417300423 |
Front Bracket Price: $7.49 |
| 54 |
417300430 |
Front Support Price: $14.99 |
| 55 |
417300432 |
Pulley Drive Bolt Price: $42.99 |
| 57 |
417300445 |
Stopper Price: $10.99 |
| 58 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership Price: $31.99 |
| 59 |
417300476 |
Stopper Price: $34.99 |
| 61 |
516005503 |
Decal English Price: $0.01 |
| 61 |
516005509 |
Safety Belt Guard Decal Price: $0.01 |
| 64 |
517225900 |
Flat Washer Price: $0.18 |
| 66 |
517302322 |
Strength Washer Price: $12.99 |
| 67 |
207287544 |
Hex. Cap Screw M8 X 75 Price: $5.29 |

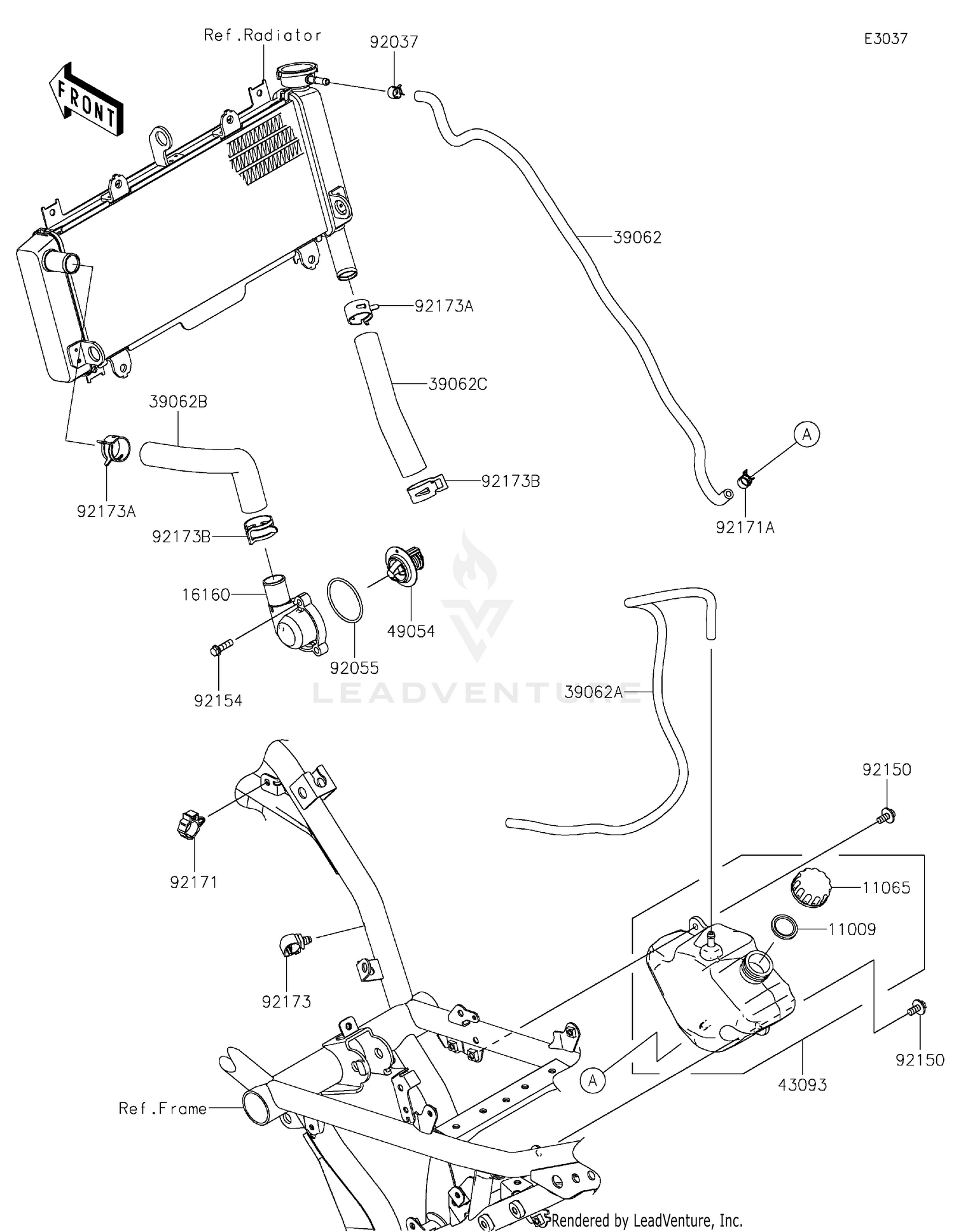

| 11009 |
11009-1145 |
GASKET,RESERVOIR TANK CAP Price: $1.42 |
| 11065 |
11065-0962 |
CAP Price: $2.02 |
| 16160 |
99999-0921 |
KIT,THERMOSTAT BODY & RIN This part replaces 16160-0793. Price: $46.62 |
| 39062 |
39062-0745 |
HOSE-COOLING,RADI.-RESERVOIR Price: $10.17 |
| 39062A |
39062-0746 |
HOSE-COOLING,BREATHER Price: $7.82 |
| 39062B |
39062-0747 |
HOSE-COOLING,HEAD-RADIATOR Price: $11.44 |
| 39062C |
39062-0748 |
HOSE-COOLING,RADIATOR-PUMP Price: $12.20 |
| 43093 |
43093-0003 |
RESERVOIR-ASSY-TANK Price: $65.84 |
| 49054 |
49054-0001 |
THERMOSTAT Price: $30.76 |
| 92037 |
92037-2113 |
CLAMP Price: $1.03 |
| 92055 |
92055-0160 |
RING-O,44.7X2.4 Price: $2.14 |
| 92150 |
92150-1340 |
BOLT,6X14 Price: $5.07 |
| 92154 |
92154-1778 |
BOLT,FLANGED,6X20 Price: $2.26 |
| 92171 |
92171-0316 |
CLAMP,BRAKE HOSE Price: $3.88 |
| 92171A |
92171-1992 |
CLAMP,10.5X8X0.7 Price: $6.22 |
| 92173 |
92173-0736 |
CLAMP,12MM DIA. Price: $5.05 |
| 92173A |
92173-1567 |
CLAMP Price: $3.54 |
