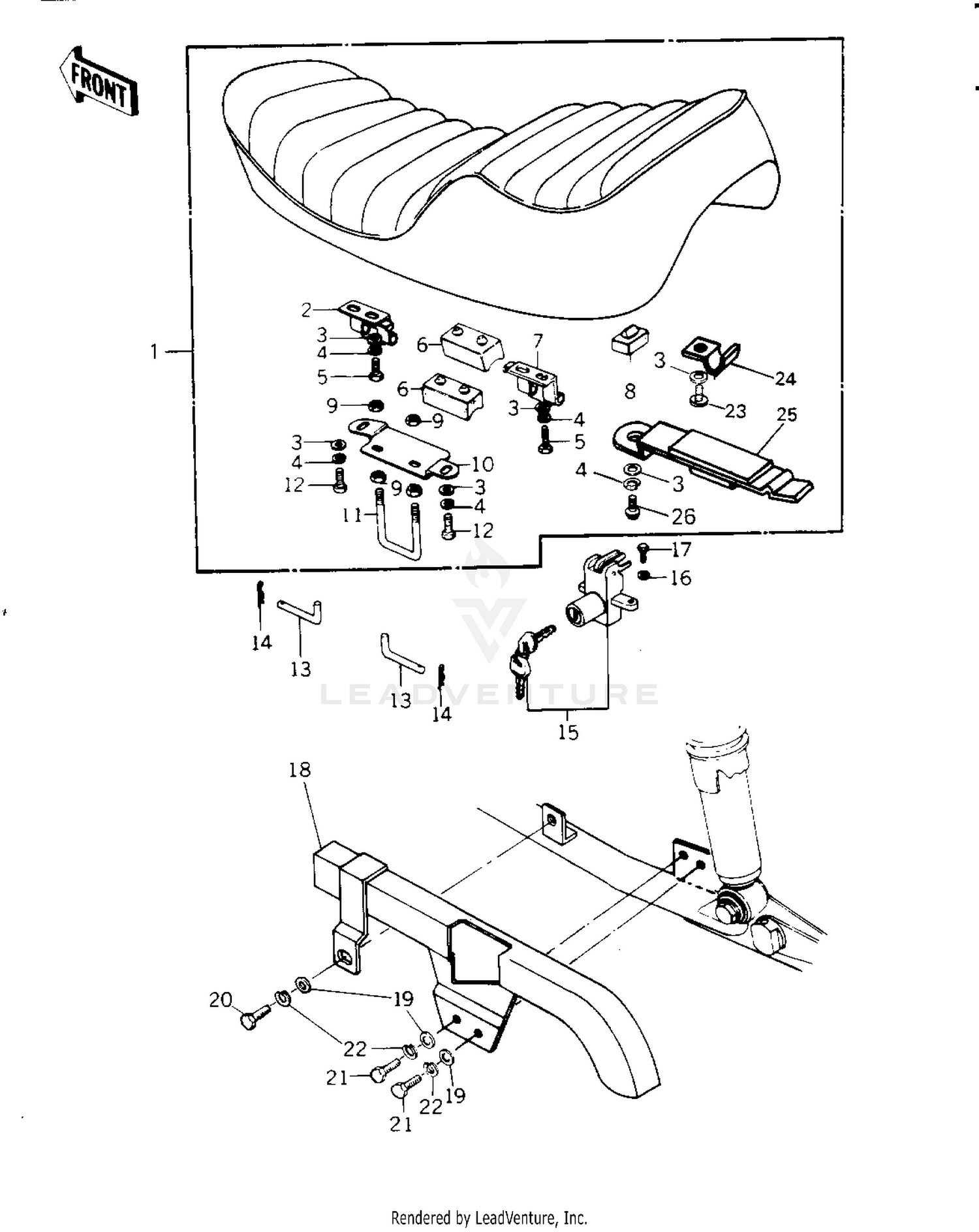

| Ref | Part Number | Description |
|---|
| 1 |
53001-1084 |
SEAT-ASSY Price: $246.28 |
| 2 |
53009-030 |
HINGE,REAR Price: $8.79 |
| 3 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 4 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 |
112BA0616 |
BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 6 |
92075-139 |
DAMPER RUBBER,SEAT Price: $11.46 |
| 7 |
53009-032 |
HINGE,REAR Price: $9.55 |
| 8 |
92075-099 |
DAMPER Price: $5.52 |
| 9 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 10 |
53058-003 |
BRACKET,SEAT CATCH Price: $17.68 |
| 11 |
53056-002 |
CATCH, SEAT Price: $16.66 |
| 12 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 13 |
53011-008 |
PIN,DUAL SEAT PIVOT Price: $8.24 |
| 14 |
554DA0600 |
PIN-SNAP,1.2X21.2 This part replaces 554A0600. Price: $0.95 |
| 15 |
27016-5010 |
LOCK-ASSY,SEAT Price: $112.57 |
| 16 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 17 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 18 |
36014-069 |
CASE-CHAIN Price: $76.62 |
| 19 |
411S0600 |
WASHER-PLAIN,6MM This part replaces 411D0600. Price: $2.06 |
| 20 |
110N0616 |
BOLT-HEX HEAD,6X16 Price: $3.38 |
| 21 |
112BA0614 |
BOLT-UPSET This part replaces 112G0614. Price: $2.10 |
| 22 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 23 |
220AA0610 |
SCREW-PAN-CROS,6X10 This part replaces 220B0610. Price: $3.23 |
| 24 |
13070-1027 |
GUIDE,HARNESS Price: $7.58 |
| 25 |
11034-1757 |
BRACKET Price: $24.80 |
