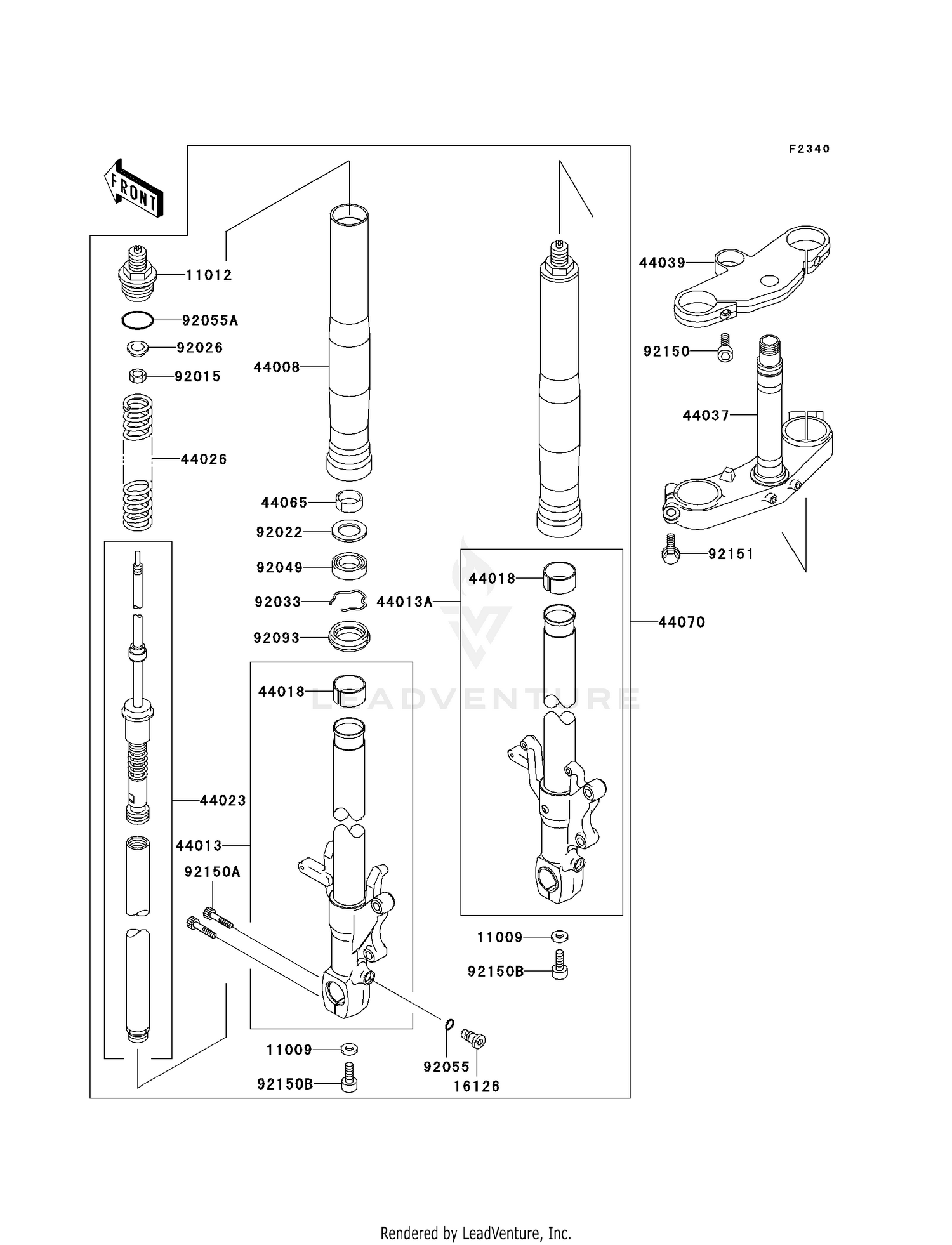

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1127 |
GASKET,FORK CYLINDER BOLT Price: $5.18 |
| 11012 |
11012-1792 |
CAP,FORK TOP Price: $155.15 |
| 16126 |
16126-1261 |
VALVE,FORK Price: $146.52 |
| 44008 |
44008-1039-JS |
PIPE-FORK OUTER,A.BRO Price: $1,108.95 |
| 44013 |
44013-1415-KF |
PIPE-FORK INNER,LH,SI Price: $801.51 |
| 44013A |
44013-1416-KF |
PIPE-FORK INNER,RH,SI Price: $801.51 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44023 |
44023-1098 |
CYLINDER-COMP-FORK Price: $403.09 |
| 44026 |
44026-1593 |
SPRING-FRONT FORK Price: $81.92 |
| 44037 |
44037-1339 |
HOLDER-FORK UNDER Price: $826.04 |
| 44039 |
44039-1264 |
HOLDER-FORK UPPER Price: $316.79 |
| 44065 |
44065-1111 |
BUSHING-FRONT FORK Price: $26.65 |
| 44070 |
44070-1490-KF |
DAMPER-ASSY,FORK,SILV Price: $2,223.75 |
| 92015 |
92015-1795 |
NUT Price: $5.52 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92026 |
92026-1471 |
SPACER,FORK Price: $11.03 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1456 |
SEAL-OIL,FORK OUTER T Price: $23.82 |
| 92055 |
670B2012 |
O RING,12MM This part replaces 92055-1201. Price: $3.23 |
| 92055A |
92055-1333 |
RING-O,FORK,AIR TUBE Price: $6.00 |
| 92093 |
92093-1415 |
SEAL,FORK OUTER TUBE Price: $22.53 |
| 92150 |
120CA0825 |
BOLT-SOCKET,8X25 This part replaces 92150-1172. Price: $2.06 |
| 92150A |
120CA0840 |
BOLT-SOCKET,8X40 This part replaces 92150-1194. Price: $2.80 |
| 92150B |
92150-1398 |
BOLT,12X22 Price: $9.21 |
